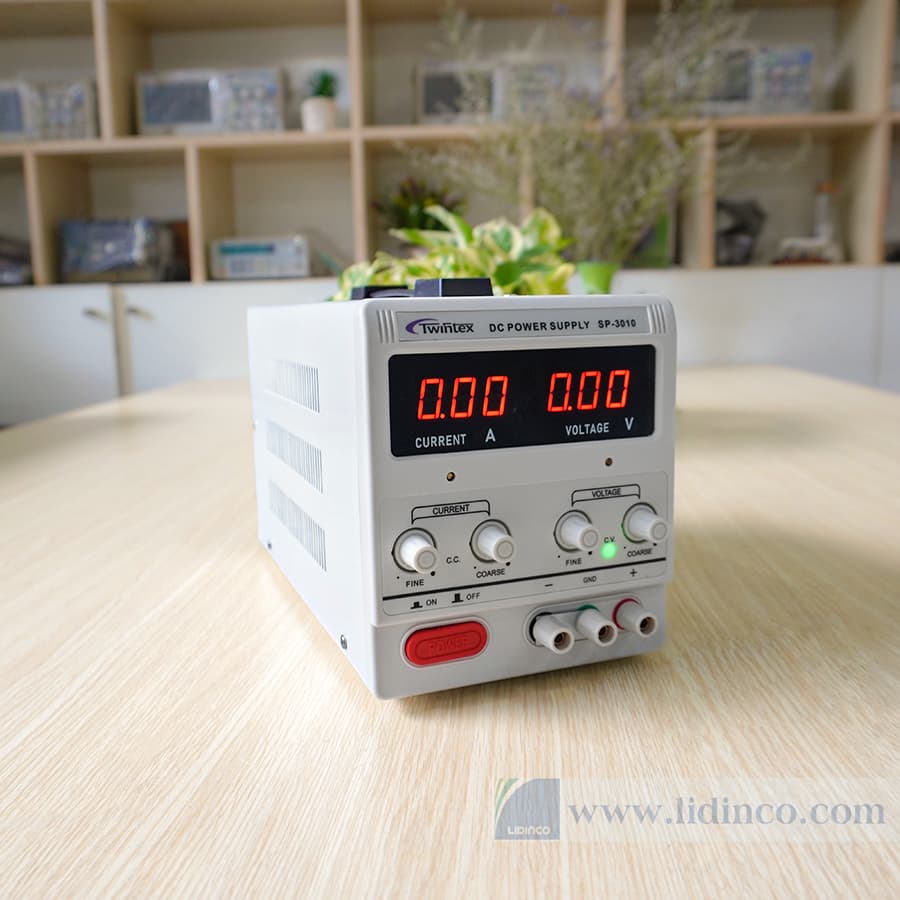

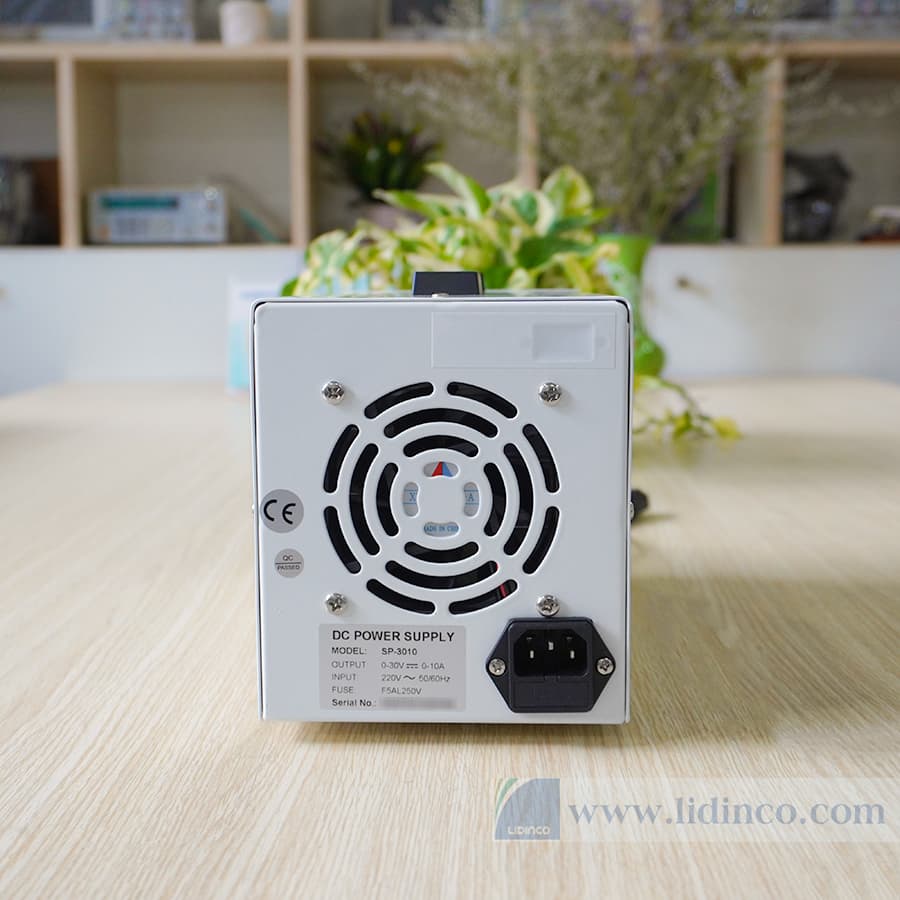

DC power supply Twintex SP-3010, 30V/10A
3.645.000đ
(Price does not include VAT)
-
DC Supply Type:
-
Output Channel:
-
Output Voltage:
-
Output Current:
- Available: Please contact
- There are currently no promotions for this product
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: [email protected]
- Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: [email protected]
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
-
Technical Counseling
100% Free
-
Free Shipping
For 3.000.000vnd Order
Specification
Data is being updated
Features
- Adopts PWM pre-regulation and linear adjustment
- Constant voltage and constant current operations
- Auto CV/CC switch
- Coarse and Fine control for voltage and current
- Over current protection, Over voltage protection and Over temperature protection
- Intelligent cooling fa
| Single Output Switching DC Power Supply | |||
| Model | Rated output | ||
| Voltage (V) | Current (A) | Power (W) | |
| SP-1505 | 0-15V | 0-5A | 75W |
| SP-1510 | 0-15V | 0-10A | 150W |
| SP-1515 | 0-15V | 0-15A | 225W |
| SP-1520 | 0-15V | 0-20A | 300W |
| SP-3002 | 0-30V | 0-2A | 60W |
| SP-3003 | 0-30V | 0-3A | 90W |
| SP-3005 | 0-30V | 0-5A | 150W |
| SP-3010 | 0-30V | 0-10A | 300W |
| SP-6002 | 0-60V | 0-2A | 120W |
| SP-6003 | 0-60V | 0-3A | 180W |
| SP-6005 | 0-60V | 0-5A | 300W |
| SP-1001 | 0-100V | 0-1A | 100W |
| SP-1002 | 0-100V | 0-2A | 200W |
| SP-1003 | 0-100V | 0-3A | 300W |
| Constant voltage operation | ||
| Line regulation | ≤0.05%+1mV | |
| Load regulation | ≤0.1%+5mV | |
| Ripple & Noise | ≤10mV(RMS) | |
| Constant current operation | ||
| Line regulation | ≤0.05%+10mA | |
| Load regulation | ≤0.1%+5mV | |
| Ripple & Noise | ≤20mA(RMS) | |
| Display | ||
| Voltmeter | 3 digits LED display | |
| Ammeter | 3 digits LED display | |
| Resolution | Voltage | 100mV/10mA |
| Accuracy | ±(0.1% reading+1 digit) | |
| Protection | Over load and current limit protections | |
| Power source | AC110V/220V±10% selectable, 50/60Hz | |
| Operating environment | 0℃~40℃, ≤80%RH | |
| Storage environment | -10℃~70℃, ≤70%RH | |
| Accessories | Power cord x1, Operation manual x1 | |
| Dimension | 125x160x260mm | |
| Weight | Approx.2kg | |
