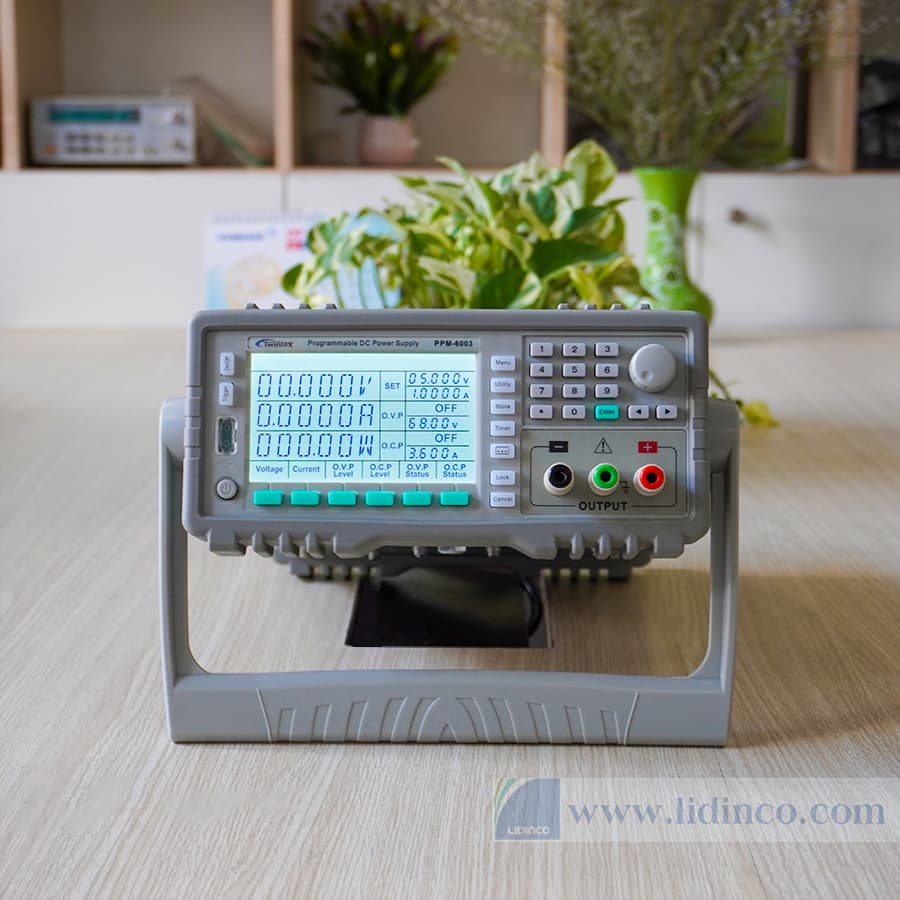

Programmable Linear DC Power Supply Twintex PPM-6003

Programmable Linear DC Power Supply Twintex PPM-6003

SKU:
PPM-6003
Warranty:
N/A
Price: Contact
  • Output Voltage:
  • Output Current:
  • Please contact to check stock
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Rated output: 0℃~40℃

Voltage: 0~64V

Current: 0~3.2A

O.V.P: 0.1~68V

O.C.P: 0.1~3.6A

Constant voltage operation:

Current stability: ≤0.01%+3mV

Load stability: ≤0.01%+3mV (I≤3A); ≤0.02%+5mV (I>3A)

Ripple and noise: ≤1mVrms (I≤3A); ≤2mVrms (I>3A)(5Hz~1MHz)

Recovery time: ≤100us (50% load change, minimum load 0.5A)

Constant current operation:

Current stability: ≤0.1%+3mA

Load stability: ≤0.1%+3mA (I≤3A); ≤0.1%+5mA (I>3A)

Ripple and noise: ≤3mArms (I≤3A), ≤6mArms (I>3A)

Display:

Voltmeter: 5 digits LCD display

Ammeter: 5 digits LCD display

Set resolution: 1mV/0.1mA

Reading resolution: 1mV/0.1mA

Setting accuracy: Voltage: ±(0.03% of reading + 10mV)(25±5℃)

Current: ±(0.1% of reading + 0.1% of FS)(25±5℃)

Reading accuracy: Voltage: ±(0.02% of reading +5mV)(25±5℃)

Current: ±(0.1% of reading + 0.1% of FS)(25±5℃)

General part:

Protection: Overload, overvoltage, overcurrent, overtemperature and reverse polarity protection

Control panel lock: provided

Remote sensing function: Maximum compensation voltage 1V

Battery Charging: Lithium battery charge curve

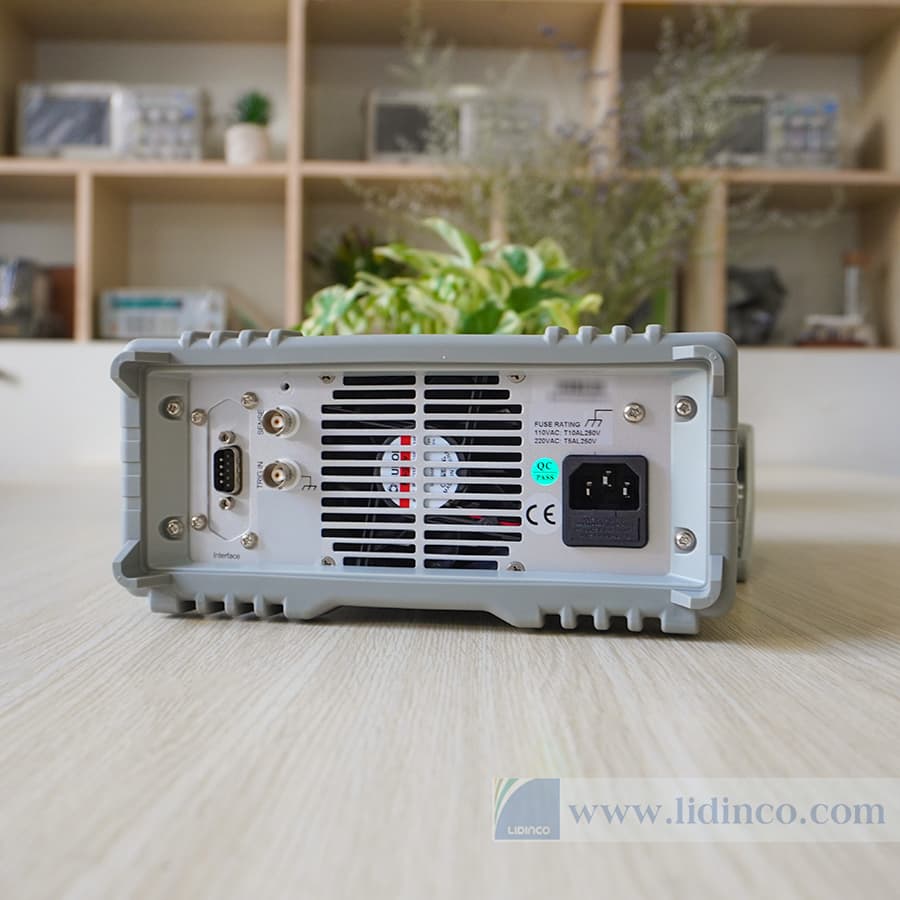

Interface: RS232 interface, support SCPI commands

RS485 interface, support Modbus-RTU commands

External Trigger terminal

Memory: 300sets

Insulation: Between base and terminal: ≥20MΩ/500VDC

Between base and AC power cord: ≥30MΩ/500VDC

Operating environment: Indoor use

Altitude: ≤2000m

Humidity: ≤80%

Installation items: II

Ambient temperature: 0~40℃

Pollution level: 2

Storage environment: -10℃~70℃, ≤70%RH

Power source: AC110V/220V±10% selectable, 50/60Hz

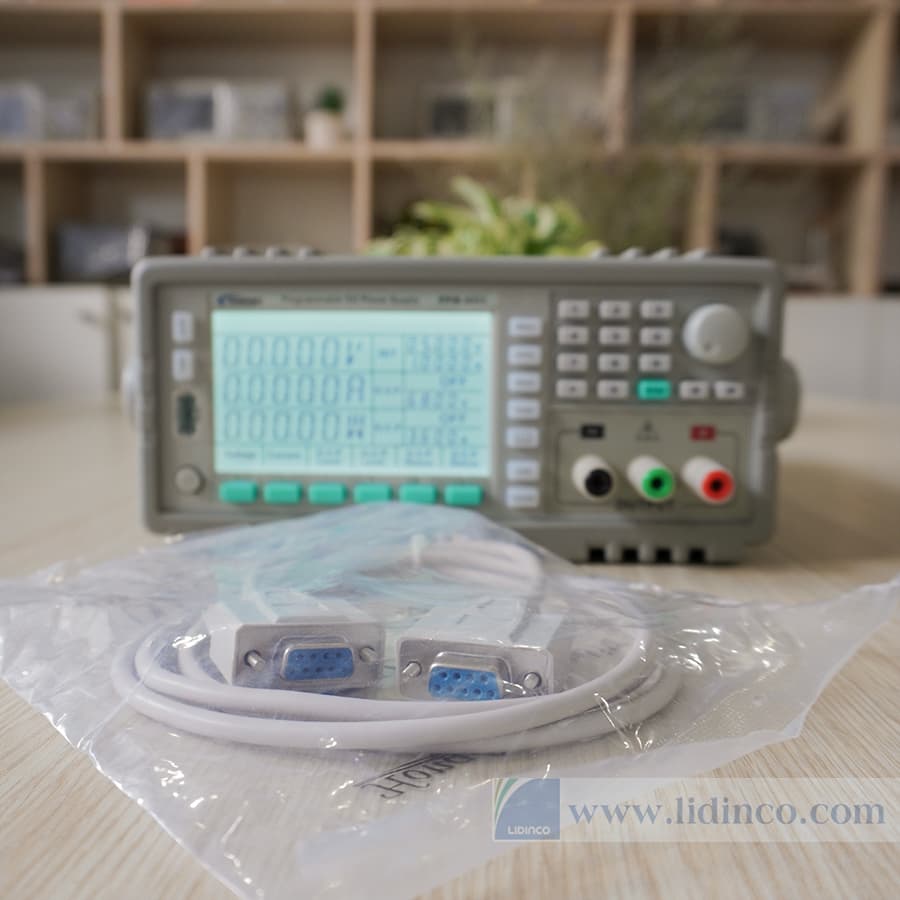

Accessories: Power cord x1, Operating manual x1, RS232 cable x1, CD x1

Dimensions: 215Wx89Hx352D mm

Weight: 8kg

DESCRIPTION PPM

PPM series are high precision laboratory programmable DC power supply with single output, output power rated from 90W to 375W with various model numbers. PPM series are featured with low regulation 0.01%, low ripple and noise 1mVrms, automatic continuous or dynamic load change, battery charge function.MPU control, RS-232/RS-485/USB interface for PC control, the PPM series facilitates auto test and auto control. The commands of the PPM series are compliant with SCPI commands. Users can easily develop programs to facilitate different applications in auto test and auto control. Digital input fulfilled by rotary dial and keypad input, fast and accurate. Voltage and current regulations by software, avoids human error and makes the PPM series more accurate.

Features PPM-6003:

  • Rated output voltage 30V, 36V, 60V, 75V, 120V, 150V, 300V, 500V DC
  • 0.01% low regulation, high accuracy and high resolution
  • 1mVrms low ripple & noise
  • 4.3-inch backlit Segment LCD display
  • High speed rotary dial and keypad input
  • Built-in beeper alarm
  • Panel lock and output ON/OFF function
  • List mode function, 300 sets save & recall for voltage
  • Remote sense function (except PPM-3H12, PPM-5H07)
  • Display load resistance value
  • Battery charge mode
  • Standard RS-232 interface, support SCPI commands, support Labview
  • Optional RS-485 interface, support Modbus
  • Optional RS-232 to USB cable
  • Optional 0-5V analog control (except PPM-3H12, PPM-5H07)
