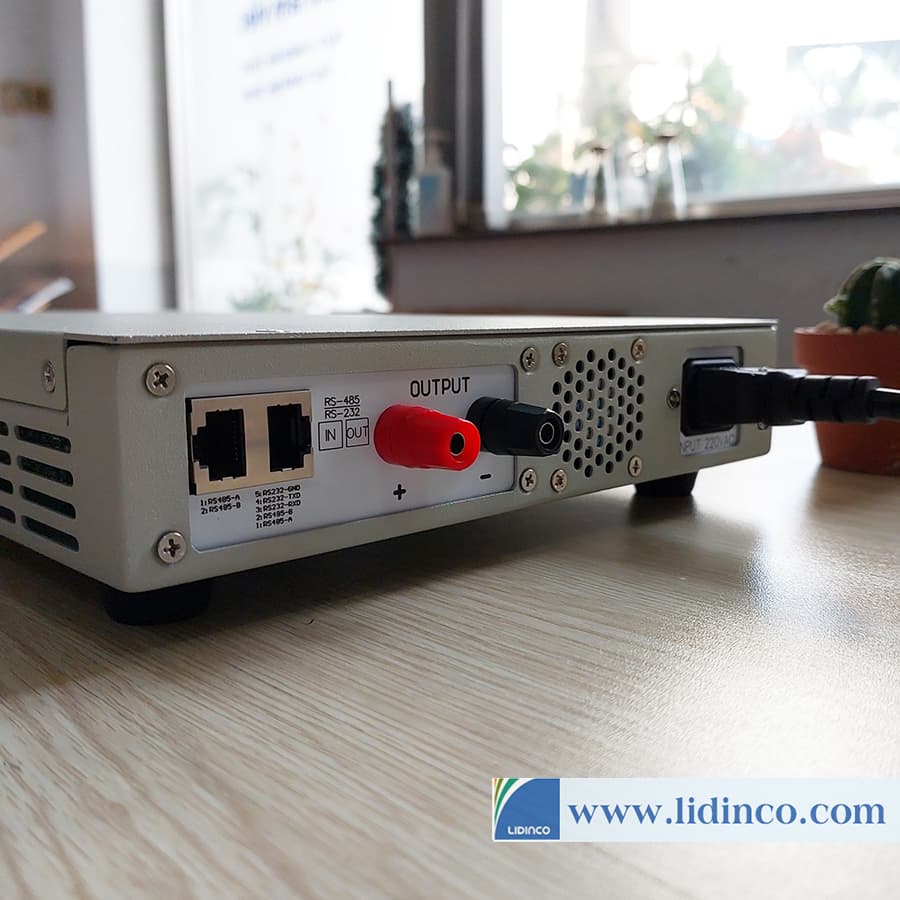

Programmable Switching DC Power supply Twintex PWS600-3

Description

The PWS Series Programmable Switching DC Power supply cover large range of outputs, rated power from 1.8kW, 3.6kW, 6kW, 12kW, 15kW up to 100kW. The switching DC power supply 1800W are compact size switch mode programmable DC power supplies, only half 1U 19-inch rack mount size, with RS232 RS485 interface, supporting ModBus-RTU commands. The adjustable dc power supply 1800W provides options of remote sense function and analog remote control interface for output control and feedback. Reverse polarity switch is also available to allow the 1800W switching DC power supply to change output polarities in reverse direction. And the reverse current protection protects the programmable switching DC power supply 1800W against reverse current from DUT into the switching DC power supply itself. The 1800W DC power supply are available with different output ratings: 30V 60A, 60V 30A, 100V 18A, 600V 3A, 1000V 1A.

Feature

- Rated voltage 30V 60V 100V 120V 300V 600V 1000V
- Max. output voltage 5000V, Max. output current 10000A
- Applying IGBT module and 19-inch standard size
- 4 digits LCD display for voltage and current
- Constant voltage and constant current operations, auto CV/CC switch
- Front panel operation: preset voltage and current, output ON/OFF
- Multiple protections: OVP, OCP, OTP and OLP
- Transient response time 5ms
- Communication: RS-232 and RS-485 interface
- Customized specifications and functions acceptable

Optional function

- Remote control: 0-5V, 0-10V or 4-20mA signal to control output voltage and current
- Remote Sensing: compensate the voltage drop
- Remote ON/OFF control: using a replay to control the output
- Timer Switch: turn on or off the output as per preset time
- Square Waveform Output: output square waveform according to preset time and cycles
- Reverse polarity protection: to protect power supply from damage by reverse current from EUT
- PV curve output for solar panel tests
- LAN interface
- System Bus interface
