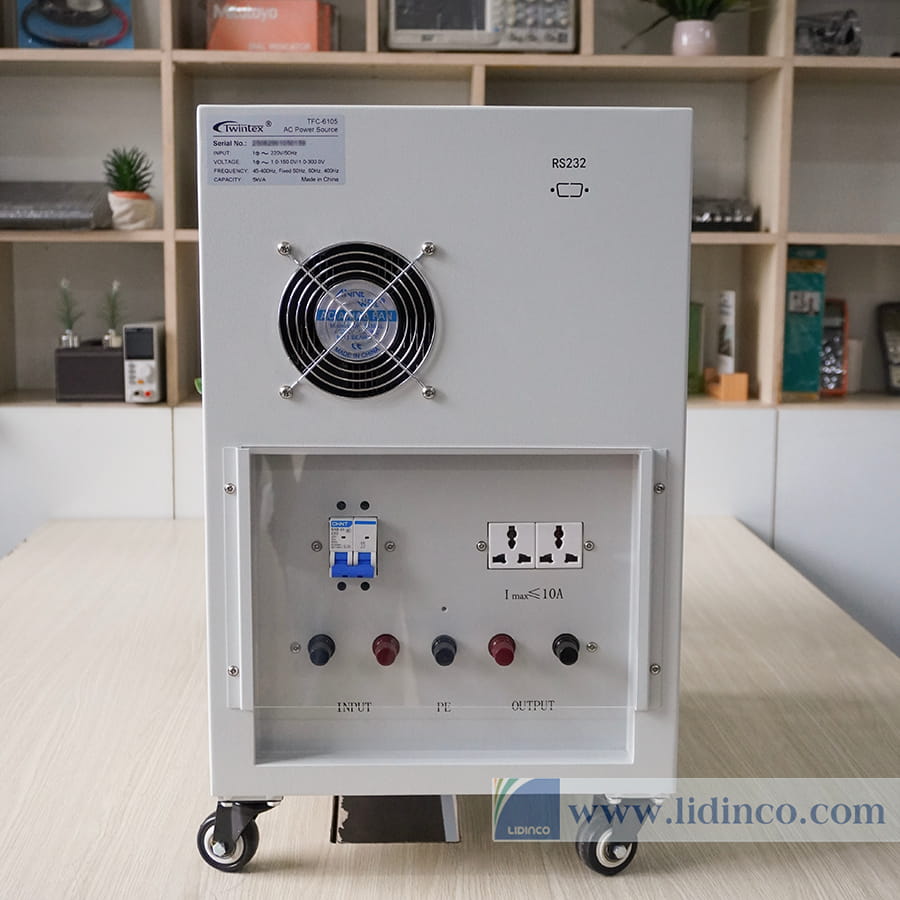

High Power Single Phase AC Power Source Twintex TFC61 Series
High Power Single Phase AC Power Source Twintex TFC61 Series
- Available: Please contact
- There are currently no promotions for this product
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: [email protected]
- Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: [email protected]
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
-
Technical Counseling
100% Free
-
Free Shipping
For 3.000.000vnd Order
Data is being updated
Descriptions
The TFC61 series are single phase output AC power source, output capacity from 5kVA to 800kVA. Adopting PWM high frequency technology & IGBT regulation mode, the single phase AC power source features constant frequency and voltage with high accuracy. The single phase AC power source can be used to simulate grids of different countries, widely used in laboratories, production calibration & test and military applications.
Features
- Full range adjustable output: 1~300V, resolution 0.1V
- Output frequency: 47-63Hz, 100Hz, 200Hz
- Fast output key for 110/220V and 50/60Hz
- High accuracy LED display for voltage, current, frequency, active power, power factor
- Fast transient response, response time no more than 2ms for 100% load and unload
- Multiple protections: OVP, OCP, OTP and OLP
- Optional: RS-232/RS-485 interface for PC remote control on output frequency and voltage
- Customized specifications and functions acceptable
Specifications
Model | Capacity | Max.Current | Input | N.W (kg) | G.W. (kg) | Dimension (mm) | |
Low range @110V | High range @220V | ||||||
TFC-6105 | 5KVA | 45A | 22.5A | 1P 220Vac | 61 | 75 | 360W*520H*500D |
TFC-6106 | 6KVA | 54A | 27A | 1P 220Vac | 65 | 80 | 360W*520H*500D |
TFC-6110 | 10KVA | 90A | 45A | 1P 220Vac | 105 | 130 | 430W*630H*520D |
TFC-6115 | 15KVA | 136A | 68A | 3P 380Vac | 110 | 155 | 480W*800H*600D |
TFC-6120 | 20KVA | 182A | 91A | 3P 380Vac | 200 | 260 | 520W*1000H*820D |
TFC-6130 | 30KVA | 272A | 136A | 3P 380Vac | 270 | 330 | 520W*1000H*820D |
TFC-6145 | 45KVA | 410A | 205A | 3P 380Vac | 350 | 410 | 660W*1260H*980D |
TFC-6150 | 50KVA | 454A | 227A | 3P 380Vac | 400 | 460 | 660W*1260H*980D |
TFC-6160 | 60KVA | 546A | 273A | 3P 380Vac | 420 | 480 | 660W*1260H*980D |
TFC-6175 | 75KVA | 682A | 341A | 3P 380Vac | 550 | 650 | 750W*1500H*1020D |
TFC-6190 | 90KVA | 818A | 409A | 3P 380Vac | 650 | 750 | 750W*1500H*1020D |
TFC-61100 | 100KVA | 910A | 455A | 3P 380Vac | 670 | 770 | 750W*1500H*1020D |
TFC-61120 | 120KVA | 1090A | 545A | 3P 380Vac | 800 | 920 | 700W*1700H*1280D |
TFC-61150 | 150KVA | 1364A | 682A | 3P 380Vac | 850 | 970 | 700W*1700H*1280D |
TFC-61180 | 180KVA | 1636A | 818A | 3P 380Vac | 980 | 1100 | 700W*1700H*1280D |
TFC-61200 | 200KVA | 1818A | 909A | 3P 380Vac | 1000 | 1120 | 700W*1700H*1280D |
