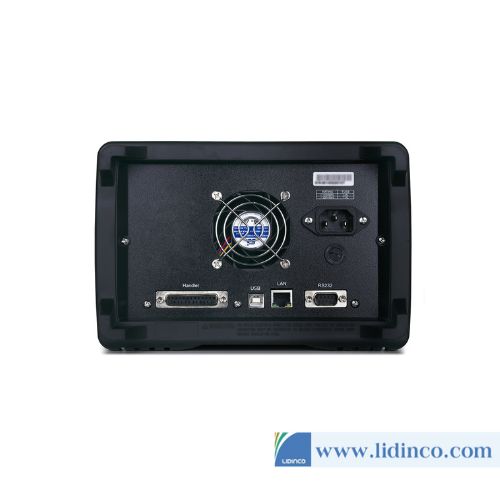

Low Noise Precision Power Supply Tonghui TH1931

Features

■ 7-inch capacitive touch screen with 800 x 480 resolution

■ Linux operating system, Chinese and English interface

■ Four-quadrant precision power output

■ Single/dual channel output and measurement

■ Up to ±210V DC voltage, ±3A DC current/±10.5A pulse

■ 10fA/0.1μV minimum output resolution (6 1/2 bits)

■ 1pA/10μV minimum measurement resolution (4 1/2 bits)

■ Supports voltage, current, resistance, and power measurements

■ Four basic modes of voltage source, current source, voltmeter, and ammeter

■ Minimum sampling interval 1μs

■ Supports DC, pulse, scanning and list outputs

■ Pulse output with a minimum pulse width of 50 μs

■ 1mHz-10kHz arbitrary waveform generation and list scan function (minimum 1μs interval)

■ Flexible programmable output resistance function

■ Math operation function, sliding average filter function, deviation deduction function

■ 14-speed sorting function with Grading and Sorting modes

Application

■ Analog-to-digital converters and digital-to-analog converters

■ High-precision analog ICs and circuits

■ RF integrated circuits and circuits

■ Medical Applications

■ Cable/Harness Evaluation

■ Voltage Controlled Oscillator (VCO)

■ Sensor devices and transducers

■ Solar cells and interface circuits

■ Electrochemical applications

■ Research & Education

■ Crystal Oscillators

■ Current source for small voltage measurements

■ Battery Management Simulator

■ Advanced Materials Evaluation
