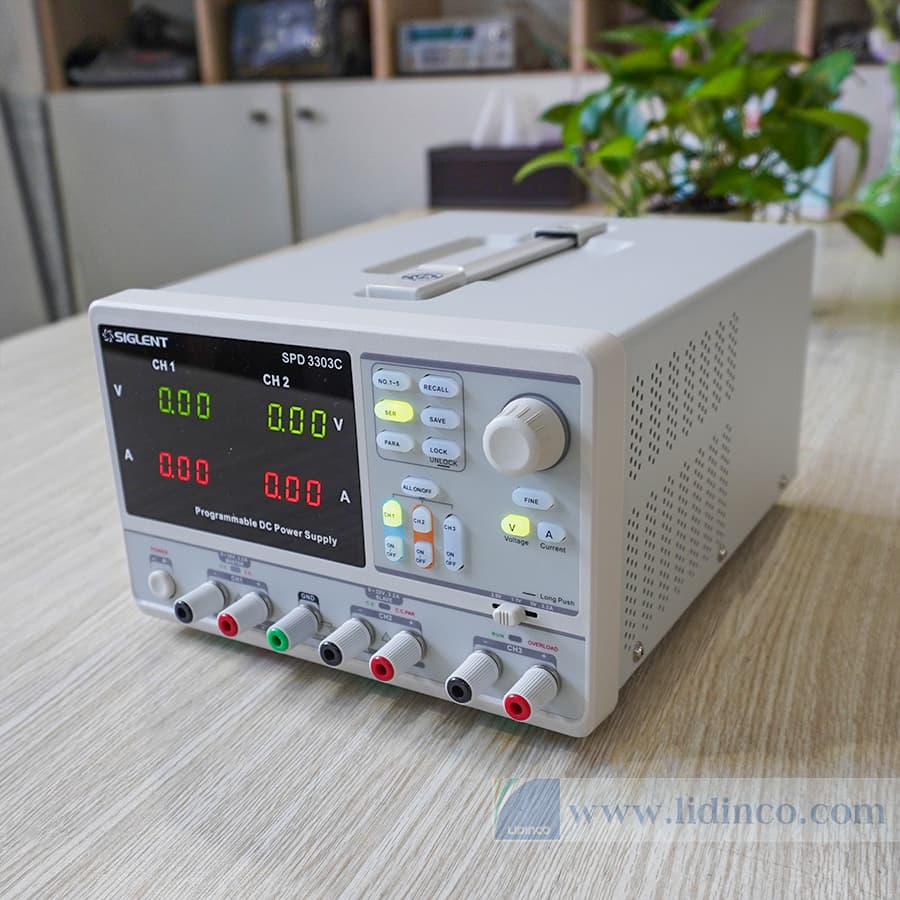

DC Power supply SPD3303C, 3 CH, 30V/3A

Name: DC Power supply SPD3303C, 3 CH, 30V/3A
Brand: Siglent
SKU: SPD3303C
Price: 6.180.000VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

SPD3303C

0 ratings

Brand:

Siglent

Warranty:

N/A

6.180.000đ

(Price does not include VAT)

6 products available

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

1. Channel: CH1: 0 ～ 32 V, 0 ～ 3.2 A; CH2: 0 ～ 32 V, 0 ～ 3.2 A; CH3: 2.5 / 3.3 / 5.0 V, 3.2 A

2. Display: LED display 4-bit voltage, 3-bit current display

3. Resolution: 10 mV / 10 mA

4. Constant voltage mode:

Current Stabilization: 0.01% + 3 mV

Load stability: 0.01% + 3 mV

Ripple and Noise: 1 mVrms（5 Hz 1 MHz

Recovery time: ＜ 50 μs (50% load change, 0.5 A min load)

5. Constant current mode:

Current Stabilization: 0.2% + 3 mA

Load stability: 0.2% + 3 mA

Ripple and Noise: 3 mArms

6. Parallel mode:

Current Stabilization: 0.01% + 3 mV

Load stability: 0.01% + 3 mV

7. Series mode:

Current stability: 0.01% + 5 mV

Load stability: 300 mV

8. Output channel: CH1 / CH2: output voltage 0 ~ 32 V; output current 0 ~ 3.2 A

CH3: output voltage 2.5 / 3.3 / 5.0 V, output current 0 ~ 3 A

9. Setting accuracy: voltage ± (0.5% reading + 2 digits) current ± (0.5% reading + 2 digits)

10. Re-reading accuracy: voltage ± (0.5% of reading + 2 digits) current ± (0.5% of reading + 2 digits)

Description product
Accessories

Description

● R&D lab general purpose testing

● Teaching lab experiment

● Automotive electronic test

● Production testing and quality assessment inspection

Features and Benefits:

● 3 independent high precision output：30V/3A*2,2.5V/3.3V/5V/3A*1,total 195W power

● 4 digits voltage and 3 digits current display, min resolution: 10mV, 10mA

● Three output modes: independent, series and parallel

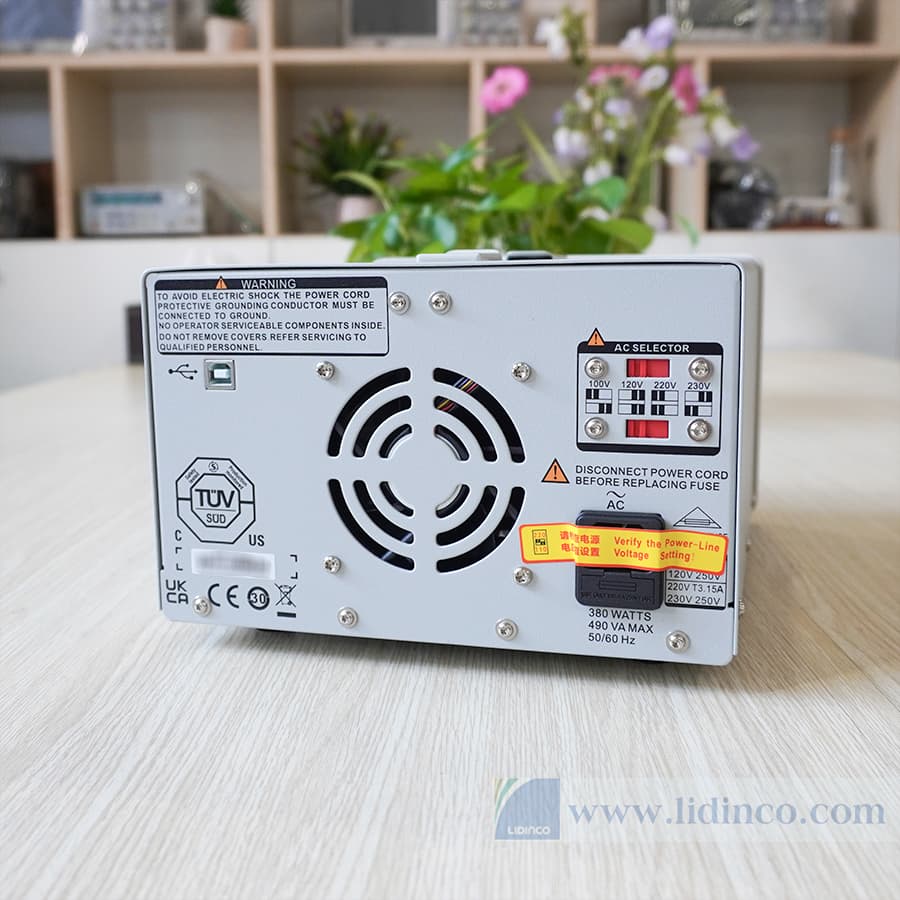

● 100V/120V/220V/230V compatible design, to meet the need of different power grids

● Smart temperature controlled fan, effectively reduce the noise

● Save/Recall 5 group system specifications, support data storage expansion

● Connected to PC via USB Device, support SCPI command, to meet the control and communication needs

Specifications

Model	SPD3303C
Channels	CH1：DC voltage range：0-30V，DC current range：0-3A
	CH2：DC voltage range：0-30V，DC current range：0-3A
	CH3：DC voltage range：2.5/3.3/5.0V，DC current range：0-3A
Max output power	195W
Min voltage/curren resolution	10mV 10mA
Voltage/Current display digits	LED 4 digits voltage and 3 digits current display
Ripple noise	≤1mVrms (5Hz～1MHz) ≤3mArms
Standard interface	USB Device
Dimension	210mm(W)×130mm(H)×265mm(D)
Weight	7.5kg
