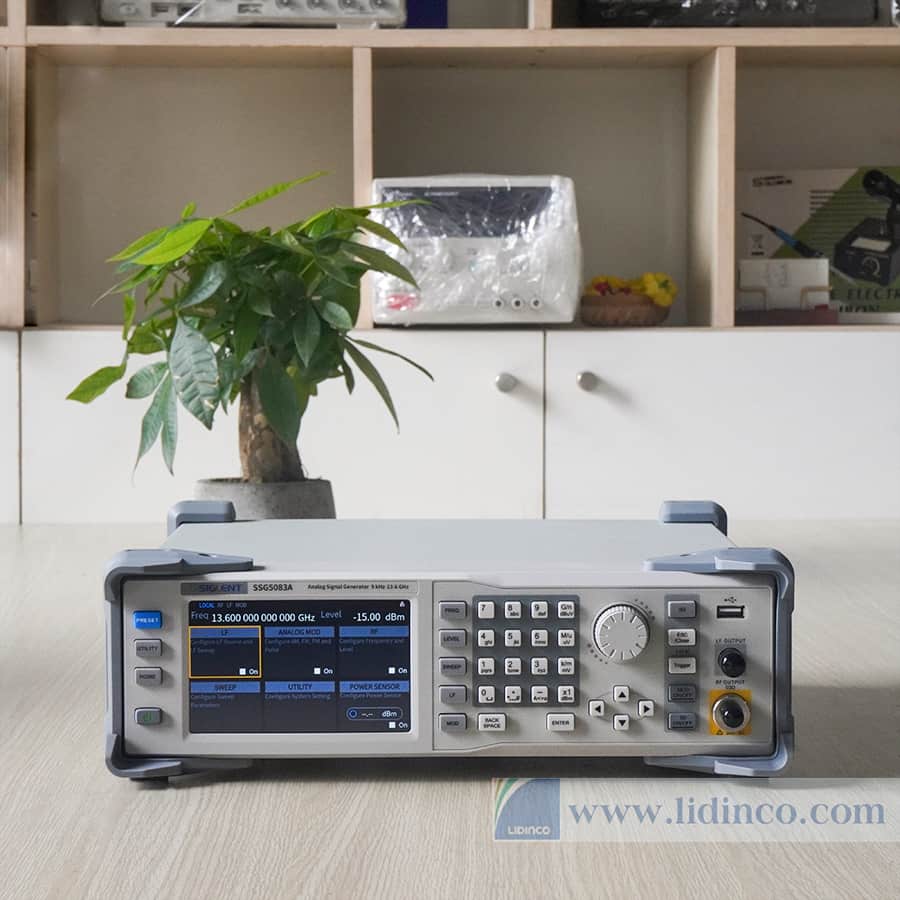

RF Signal Generator Siglent SSG5083A

Name: RF Signal Generator Siglent SSG5083A
Brand: Siglent
SKU: SSG5083A
Price: 0,00USD USD
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

SSG5083A

0 ratings

Brand:

Siglent

Warranty:

N/A

Price: Contact

Please contact to check stock

Request a quote

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Frequency range CW MODE 9 kHz~ 13.6 GHz

Frequency resolution 0.001 Hz

Amplitude Resolution 0.01 dB

Phase noise -120 dBc/Hz offset 20 kHz @1 GHz（typ.）

Level error ≤0.7 dB（typ.）

Modulation AM & FM & PM modulation, pulse modulation,

Level setting range -130 dBm~+25 dBm

Maximum output power +23 dBm

Other characteristics Pulse generator，Pulse train generator

Display 5 inch capacitance touch screen, RGB (800*480)

Interface Standard：USB-HOST, USB DEVICE (USBTMC), LAN (VXI-11,10/100Base，RJ-45)； Option：GPIB

Dimension: 338×113×369 mm

Description product
Accessories

Main Features

Frequency up to 13.6 GHz
0.001 Hz frequency setting resolution
Level setting range: -130 dBm ~ 25 dBm
Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
Level error ≤ 0.7 dB (typ.)
Provides AM, FM, PM analog modulation with internal, external or Int+Ext source
Single pulse, double pulse and pulse train generator (opt.)

Wide-ranging application

SSG5083A/SSG5085A microwave signal generator's output frequency range from 9 kHz to 13.6/20 GHz, supports AM & FM & PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high precision and high stability signal output. It is designed for communication, aerospace, national defense and other fields. And it is suitable for various application scenarios such as R&D and production.

Pulse generator

Standard pulse generator function, with a minimum pulse width of 20 ns. The optional pulse train generator function can simulate complex pulse scenes, and the number of pulses is 1-2047.
