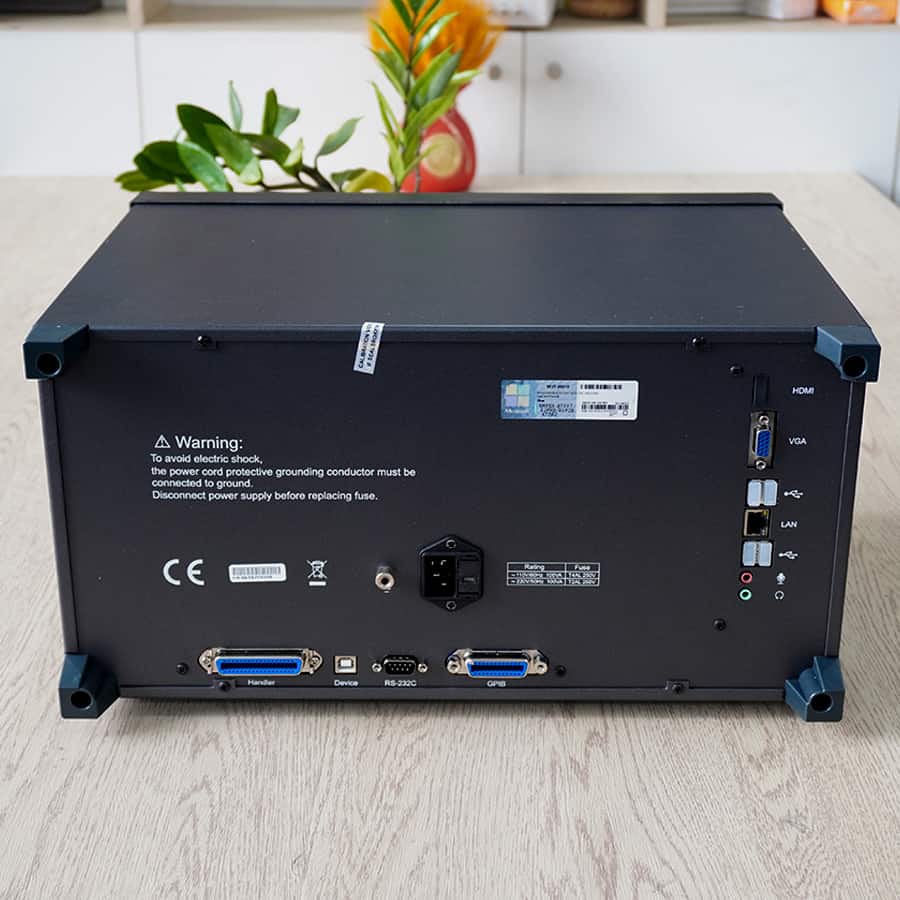

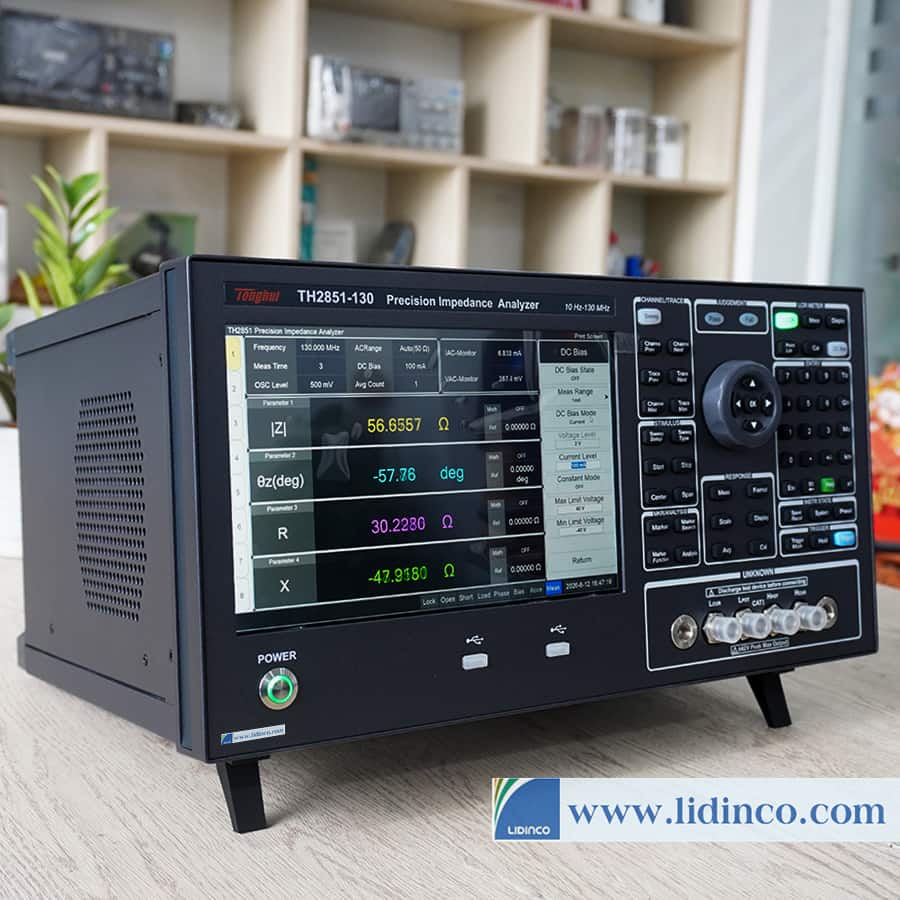

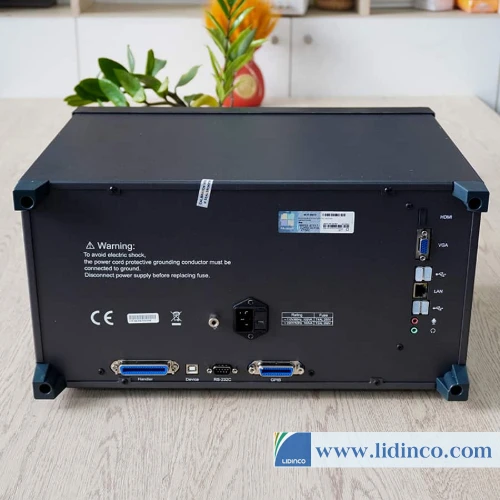

Precision Imdepance Analyzer Tonghui TH2851-130

Features

■ Test frequency: 10Hz-15MHz

■ High precision: using automatic balance bridge technology, four-terminal pair test  configuration

■ High stability and consistency

■ High speed: the fastest test speed up to 5ms

■  High resolution: 10.1-inch capacitive touch screen, resolution 1280*800

■ Three test methods: point test, list scan, and graph scan

■  1601 point multi-parameter list scanning function

■  Four-parameter measurement

■  4-channel graphic scanning function, each channel can display 4 curves, 16 kinds of split-screen display modes for channels and curves

■  Powerful sorting: 10 grades sorting in LCR mode

■  Graphic scanning mode, each curve is sorted individually

■  High compatibility: Support SCPI instruction set, compatible with KEYSIGHT E4990A, E4980A, E4980AL, HP4284A

Applications

■ Passive component:

Impedance parameter estimation and performance analysis of capacitor, inductor, magnetic core, resistor, piezoelectric devices, transformers, chip components and network components

■ Semiconductor component

Parasitic parameter test and analysis of LED driver integrated circuit C-VDC features of varactors

Parasitic parameter analysis of transistors or integrated circuit

■ Other components

Impedance assessment of printed circuit boards, relays, switches, cables, batteries

■ Dielectric material

Dielectric constant and loss angle evaluation of plastics, ceramics and other materials

■ Magnetic materials

Magnetic permeability and loss angle assessment of ferrite, amorphous body and other magnetic materials

■ Semiconductor materials

Dielectric constant, electrical conductivity and C-V characteristics of semiconductor materials

■ Liquid crystal cell

Dielectric constant, elastic constant and C-V characteristics of liquid crystal cell
