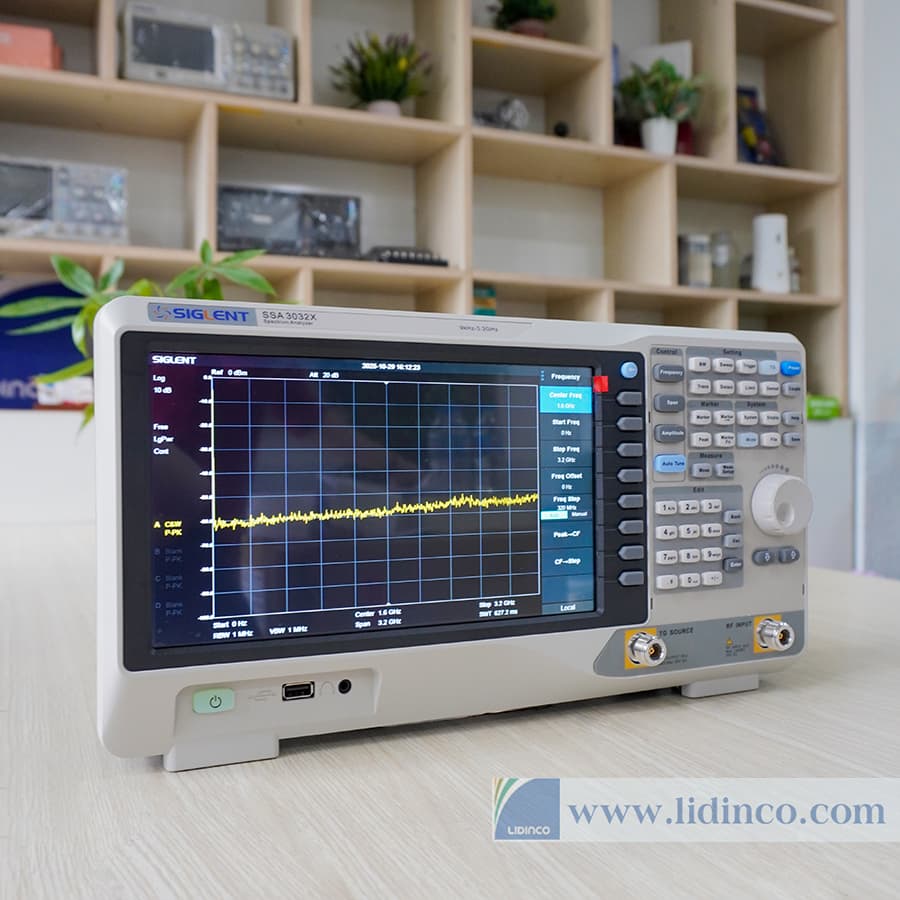

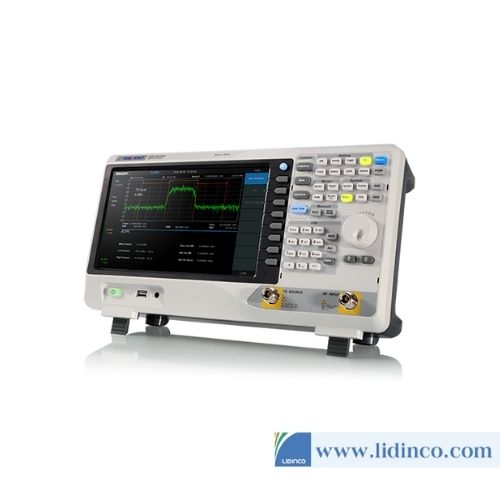

Spectrum Analyzer Siglent SSA3032X 9kHz-3.2GHz

Name: Spectrum Analyzer Siglent SSA3032X 9kHz-3.2GHz
Brand: Siglent
SKU: SSA3032X
Price: 63.577.000VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

SSA3032X

0 ratings

Brand:

Siglent

Warranty:

N/A

63.577.000đ

(Price does not include VAT)

Please contact to check stock

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Frequency range: 9 kHz~3.2 GHz

Frequency resolution: 1Hz

Bandwidth resolution: 1 Hz~1 MHz, 1-3-10 sequence printing

DANL: -161 dBm/Hz, Normalize to 1 Hz (typ.)

Phase noise: < -98 dBc/Hz@1 GHz, 10 kHz offset

Amplitude Accuracy: < 0.7 dB

Reference frequency: 10000000 MHz

Reference Intensity: -100 dBm to +30 dBm, 1 dB step

Gain: 20 dB (nom.), 9 kHz~3.2 GHz

Input loss: 0~51 dB, 1 dB step

Maximum input DC voltage: +/- 50 VDC

Frequency response

Preamp off:±0.8 dB | ±0.4 dB (typ.)

Open preamp: ±0.9 dB |±0.5 dB (typ.)

Scan time: 1 ms to 3000 s

Scan Accuracy: Accuracy, Speed

Display: TFT LCD, 1024×600 10.1 inches

Dimensions: 393 mm×207 mm×116.5 mm (W×H×D)

Weight: 4.60 kg

Description product
Accessories

Product Overview

Siglent SSA3000X Spectrum Analyzers offer a frequency range of 9 KHz to 2.1/3.2 GHz. With their light weight, small size, and friendly user interface, the SSA3000X present a large, bright, easy to read display, powerful and reliable automatic measurements, and plenty of impressive features.

SSA3000X Spectrum Analyzers’ applications include research and development, education, production, maintenance, and pre-compliance testing.

Key Features

Standard Preamplifier
Standard Tracking Generator Kit (Included)
Reflection/VSWR Measurement Kit (Opt.*)
Advanced Measurement Kit/Waterfall Chart (Opt.*)
EMI Pre-compliance Measurements Kit (Opt.*)
10.1 lnch WVGA (1024 x 600) Display

*New SSA3000X analyzers feature approximately 40 hours of free trials of these options. The trial timer is running when the instrument is powered on. After the trial has expired, the function will be disabled/greyed out.
