Digital Oscilloscope Siglent SDS1152CML+, 150 MHz, 2 Channels

Name: Digital Oscilloscope Siglent SDS1152CML+, 150 MHz, 2 Channels
Brand: Siglent
SKU: SDS1152CML+
Price: 11.250.000VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

SDS1152CML+

0 ratings

Brand:

Siglent

Warranty:

N/A

11.250.000đ ~~12.500.000đ~~ OFF 10%

(Price does not include VAT)

Please contact to check stock

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Bandwidth: 150 Mhz

Rise time: 2.3ns

Number of channels: 2 analog channels +1 channel Trigger (EXT)

Maximum sampling rate: 1Gsa/s

Wave Record Length: 2Mpts

Input Impedance: 1MΩII17pF

Time domain: 2.5 ns/div – 50 s/div

Resolution: 8bit

Trigger Type: Edge, Pulse, Video, Slope, Alternative

Math functions: +, -, ×, , FFT

Screen: 7-inch TFT-LCD with 800*480 resolution,

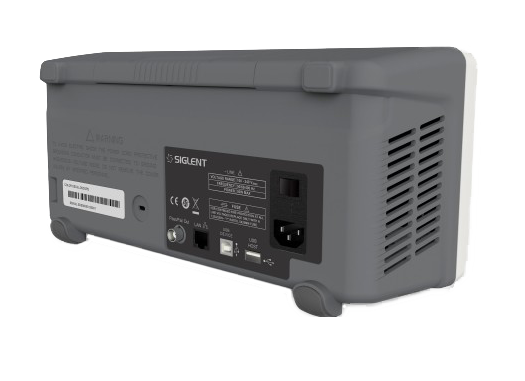

Communication port: USB Device, USB Host, RS-232, Pass/Fail

Weight: 2.5KG

Dimensions: 323mm×157mm×135mm (W×H×D)

Description product
Accessories

Description

SDS1000DL+/CML+ series is a dual-channel universal digital oscilloscope, available in 50 MHz, 100 MHz and 150 MHz bandwidth models. It includes a 2 Mpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths. With its 7 inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 1 GSa/s sampling rate, the SDS1000CML+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.

Key Features

- 150 MHz, 100 MHz, 50 MHz bandwidth models
- Real-time sampling rate up to 1 GSa/s, Equivalent-time sampling rate up to 50 GSa/s
- Memory Depth up to 2 Mpts
- Trigger types: Edge, Pulse, Video, Slope, Alternate
- Waveform math functions:+, -, *, /, FFT
- 6 digital frequency counter
- Supports Multi-language display and embedded online help
- Screensaver from 1 minute to 5 hours
- Digital filter and waveform recorder function
- Shortcut storage function key
- 7 inch TFT-LCD display with 800 * 480 resolution
- Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail
