Switching DC power supplies TP60-30S 60V 30A

Switching DC power supplies TP60-30S 60V 30A

SKU:
TP60-30S
Warranty:
N/A
Price: Contact
  • DC Supply Type:
  • Output Channel:
  • Output Current:
  • Output Voltage:
  • 1 products available
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

Máy cấp nguồn TP60-30S 60V 30A

Description

TP60-30S are high power output DC power supply with voltage up to 60V and current up to 30A. Over Voltage Protection, Over Current Protection, Over Temperature Protection and Over Power Protection keep the TP-S series and their load safe from unexpected conditions. High Accuracy, high stability and low ripple & noise make the TP-S series an ideal solution for various industrial applications.

Features

★ Max.output power ranging from 1800W
★ Max.output voltage 60V, Max. output current 30A
★ Applying advanced PWM control technology
★ Compact design and light weight (3~10kg)
★ Constant voltage (CV) and constant current (CC) operations
★ Auto CV/CC switch
★ Coarse and Fine control for voltage and current
★ Over voltage, over current, over temperature and over power protections
★ Adjustable OVP & OCP range, OPP fixed 110% of Max. power
★ Intelligent temperature control cooling fan
★ Customized specifications and functions acceptable

Specifications

Output capacity 150W~5kW
Working mode PWM
Output
Output voltage DC 0~100% full range adjustable
Output current DC 0~100% full range adjustable
O.V.P. range DC 1~100% rated output
O.C.P. range DC fixed 105% max. output
Line regulation CV≤0.2% +2 digits
CC≤0.5% +2 digits
Load regulation ≤0.5% +2 digits
Ripple & Noise ≤1% rms full scale
Display
Voltmeter 4 digits LED display
Ammeter 4 digits LED display
Voltage resolution 0.000-9.999V; 00.00-99.99V; 000.0-999.9V
Current resolution 0.000-9.999A; 00.00-99.99A; 000.0-999.9A
Accuracy ±(1% FS+1 digit)
Optional functions
Display meter 4 1/2 digits LED display (Max. display 19999)
Output terminal On front panel; or on rear panel; or on both front and rear panels
Output ON/OFF Front panel switch
Terminal block or Wires on rear panel for remote control
General
Protection Over voltage, over current, over temperature and over load protections
Operating environment 0℃~40℃, <80%RH
Storage environment -10℃~70℃, <80%RH
Power source AC110V/220V±10%, 50/60Hz
Input module Power socket or terminal block
Dimension (WxHxD) 200x150x285mm (M chassis, 150W~1000W)
260x160x380mm (L chassis, 1000W~3000W)
260x160x440mm (XL chassis, 3000W~5000W)



Accessories

Programmable DC Power Supply Itech IT6100B series 150W

Contact

Digital-control DC Power Supply Itech IT6720 60V/5A

Contact

Digital-control DC Power Supply Itech IT6721 60V/8A

Contact

Wide Range High Voltage Programmable DC Power Supply IT6700H series (3000W)

Contact

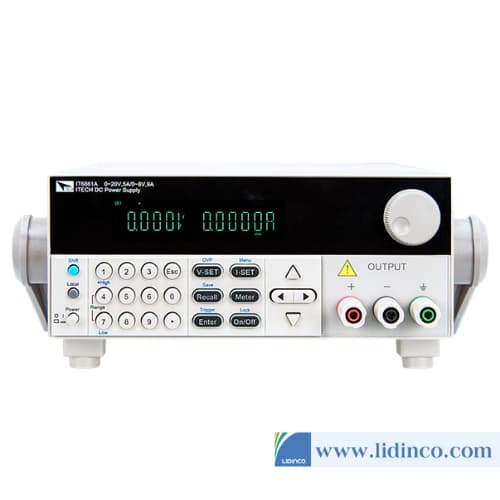

Dual-range Programmable DC Power Supply IT6800B Series 150W
