Description

The GTI AlignPro center alignment machine is a device that helps to align shafts with high accuracy and reliability. Designed and operated based on the Ipad platform. This shaft deflector is the perfect addition to the Vibepro family of vibration meters.

The GTI AlignPro offers is a step up, providing real-time live motion. Simulate 3D on the Ipad screen. Helps the shaft alignment process to achieve the most accurate efficiency and maximize the time to take measurements

Horizontal balance

Horizontal axis leveling: using reverse dial method to ensure that the center lines are co-linear between the laser and the axis center. For the highest accuracy

Vertical balance

Vertical axis balancing is done by moving the flange (coupling) until the two parts (two shafts) are concentric with each other.

Soft Foot

Step-by-Step Soft Foot correction. Before any alignment soft foot should be corrected

Feature

Extended distance: with the device's unique laser technology, it works precisely in conditions up to 10m and is not affected by ambient light

Measurement: the GTI-AlignPro shaft offset alignment process calculates both: industry allowable deviation standards, custom tolerances, and expansion compensation for temperature. Help the equipment operate at its best after calibration. See more about ThermOl2R!

Smart Measure Value Filter: Statistically analyze the measured values ​​and normalize the collected data using up to 95% confidence intervals. The device is best used in areas with high vibration

SwitchIT function: allows users to adjust the position of the motor on the Ipad screen. Accurate with real-life device location

Data storage: Store step-by-step data from measurements, photos and other details of editing steps for easy access later

Integrated reporting: allows sending data via mail. Complete notes to report to users

Hardware GTI-AlignPro

Water and dust resistance standard: IP65
Continuous operation 20 hours
Operating temperature: -10 degrees to 60 degrees
Digital CDD probe: 30mm
Measuring distance up to: 10m

ThermOl2R

Based on FLIR infrared technology, ThemOl2R is capable of offline recording and calculates the temperature from baseline to centerline from standstill to operation. After entering the distance, the app calculates the correction for the temperature field rise during this operation

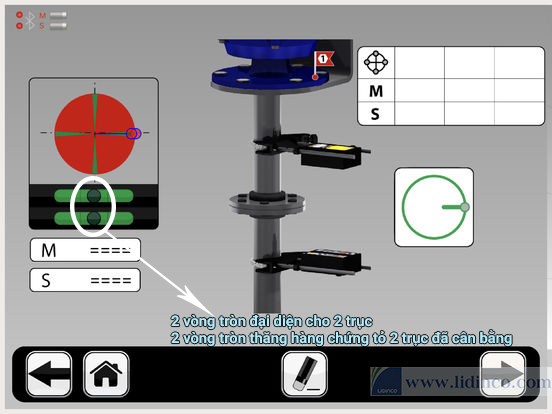

Some pictures about the software
