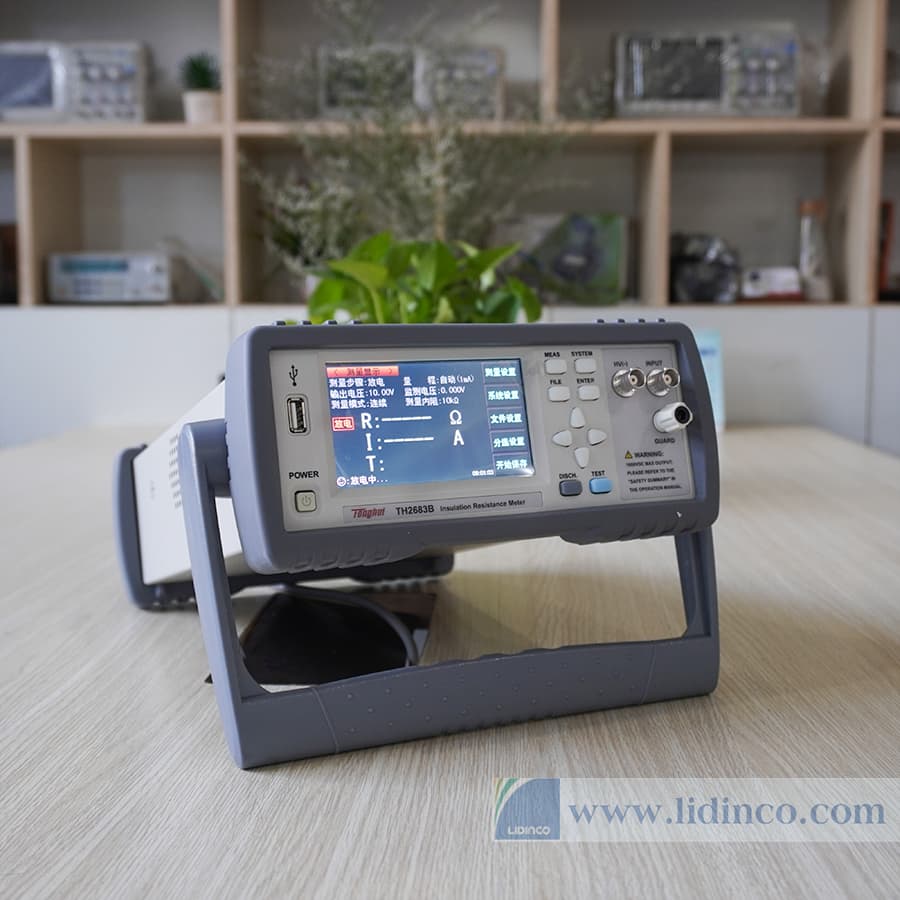

TongHui TH2683B Insulation Resistance Tester

TongHui TH2683B Insulation Resistance Tester

SKU:
TH2683B
Brand:
Warranty:
N/A
Price: Contact
  • Resistance Range:
  • Test Voltage:
  • Available: Please contact
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Resistance Test
Test Range: 100kΩ – 5TΩ
Test Accuracy: I>10nA: ±2%,  I≤10nA: ±5%

Current Test
Test Range
Range1: 100uA – 1mA, input internal resistance: 10kΩ,
Range2: 10uA – 100uA, input internal resistance: 10kΩ,
Range3: 1uA – 10uA, input internal resistance: 10kΩ,
Range4: 100nA – 1uA, input internal resistance: 10kΩ,
Range5: 10nA – 100nA, input internal resistance:   1MΩ,
Range6: 1nA – 10nA, input internal resistance: 1MΩ.

Test Accuracy: ±2%+3pA

Voltage Test: 1V  - 500V

Accuracy
Voltage: ≥10V: ±1%+1V,
Voltage:<10V: ±10%+0.1V.

Current Limit: 10mA

Switch: Turn   it on or off manually on the front panel, or through the built-in timer   control or remote control.

Charging Time: 0~999s, programmable.

Test Delay: 0~999s, programmable.

Test Speed: Fast:   ≤30ms, Slow: ≤60ms.

Comparator Function: 4 bins: 3-bin pass, 1 bin fail.

Range Mode: Auto, Hold.

Storage: Internal   storage, USB.

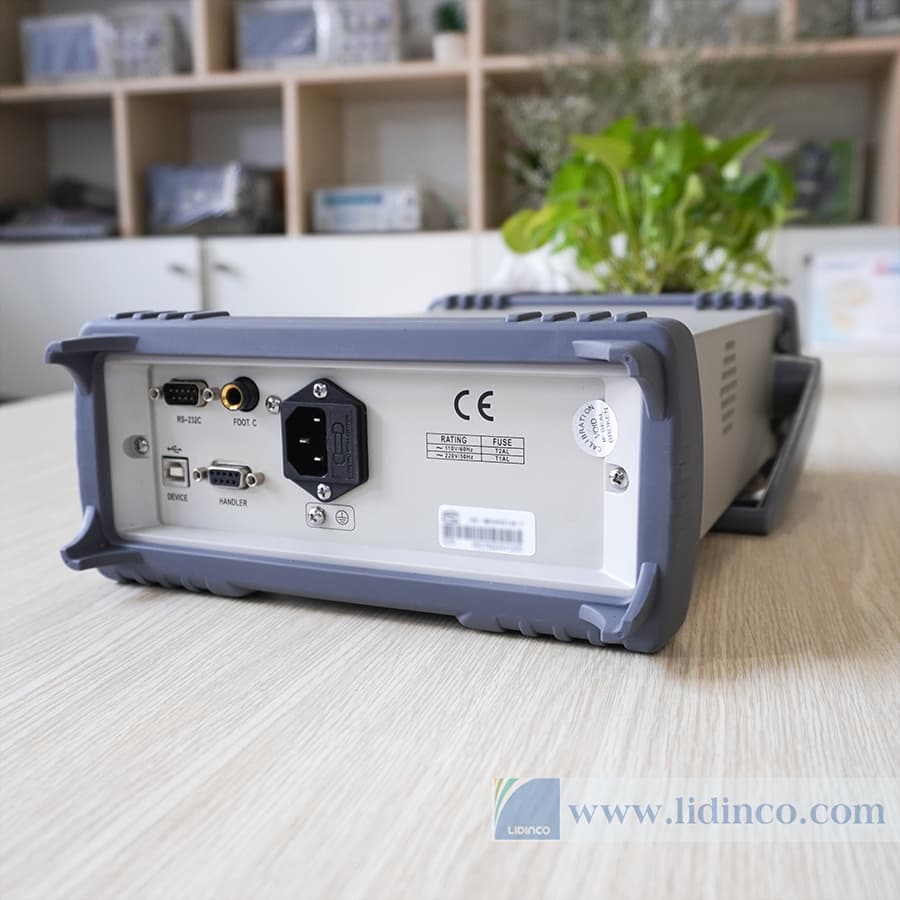

Standard Interface: RS232C, USB HOST, USB DEVICE, HANDLER.

Working Humidity: 10℃~40℃,≤90%RH

Power Requirement: 90~121V AC (60Hz)   or 198~242V AC (50Hz)

Power: <50VA

Volume: 235mmX104mmX360mm

Weight: 3.6kg

Description

Performance characteristics
– IR test range: 100kΩ – 10TΩ
– Test voltage range: 1 – 1000V
– Test charging current: 10mA
– Test speed: 30ms
– Insulation resistance, leakage current dual display
– Contact checking for capactitive devices
– 4.2 inch 25-color touch screen, resolution: 480*272
– Programmable sequential test mode
– 6-bin range, manual or auto mode
– 4-bin comparator, 3-bin pass, 1 bin fail
– 20 groups of internal file, support USB storage
– Firmware upgrade with USB
– Foot switch trigger function

Specifications

Model  TH2683B
Resistance Test
Test Range  100kΩ – 5TΩ
Test Accuracy  I>10nA: ±2%,  I≤10nA: ±5%
Current Test
Test Range

Range1: 100uA – 1mA, input internal resistance: 10kΩ,



Range2: 10uA – 100uA, input internal resistance: 10kΩ,

Range3: 1uA – 10uA, input internal resistance: 10kΩ,

Range4: 100nA – 1uA, input internal resistance: 10kΩ,

Range5: 10nA – 100nA, input internal resistance:   1MΩ,

Range6: 1nA – 10nA, input internal resistance: 1MΩ.

Test Accuracy  ±2%+3pA
Voltage Test
Range  1V  – 500V
Accuracy

Voltage≥10V: ±1%+1V,



Voltage<10V: ±10%+0.1V.

Current Limit  10mA
Switch  Turn   it on or off manually on the front panel, or through the built-in timer   control or remote control.
Charging Time  0~999s, programmable.
Test Delay  0~999s, programmable.
Test Speed  Fast:   ≤30ms, Slow: ≤60ms.
Comparator Function  4 bins: 3-bin pass, 1 bin fail.
Range Mode  Auto, Hold.
Storage  Internal   storage, USB.
Standard Interface  RS232C, USB HOST, USB DEVICE, HANDLER.
General Technical Parameter
Working Humidity  10℃~40℃,≤90%RH
Power Requirement  90~121V AC (60Hz)   or 198~242V AC (50Hz)
Power    <50VA
Volume  235mmX104mmX360mm
Weight  3.6kg
