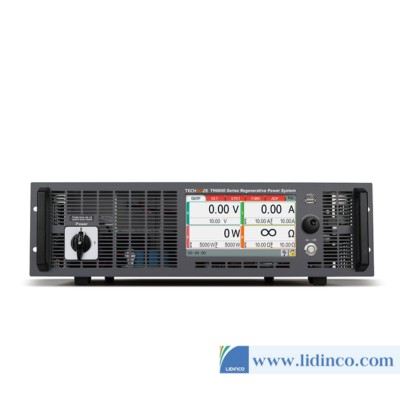

Programmable DC Power Supply Tonghui TH66750P-60-15 (750V-60A)

Name: Programmable DC Power Supply Tonghui TH66750P-60-15 (750V-60A)
Brand: Tonghui
SKU: TH66750P-60-15
Availability: InStock
Rating: 5.00 (1 reviews)

SKU:

TH66750P-60-15

0 ratings

Brand:

Tonghui

Warranty:

N/A

Price: Contact

Available: Please contact

Request a quote

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: [email protected]
Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: [email protected]
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Voltage: 750V

Current: 60A

Power: 15kW

Weight: 32.5kg

Dimension: 430×133×703.5

Power: 342VAC-528VAC，44-66Hz

Description product
Accessories

Features TH6600P Series

Wide range AC input voltage: 360VAC-528VAC
High power density: 3U high single machine power 5kW/10kW/15kW
Master-slave mode parallel, expandable to 480kW
High accuracy and high resolution, low ripple and low noise
Power mode supports CV, CC, CR, CP automatic conversion
Built-in function generator: built-in sine, triangle, arbitrary wave and other waveforms, support custom waveforms
0.99 power factor
7-inch 24-bit color TFT LCD capacitive touch screen, 800×480 resolution
Linux operating system
Data recording function: real-time recording of voltage, current and other information, and save to USB flash drive
USB flash drive upgrade: update the instrument system through USB flash drive
Support knob and cursor to accurately adjust the value
Intelligent fan control, save energy and reduce noise
Timing function: timing the instrument output
Analog interface: for external analog control
Protection: built-in hardware OVP, OCP, OPP and other protections, customizable alarm events
Support SCPI and MODBUS protocols
