Single-Channel Programmable DC Power Supplies MPS-300 Series

Descriptions

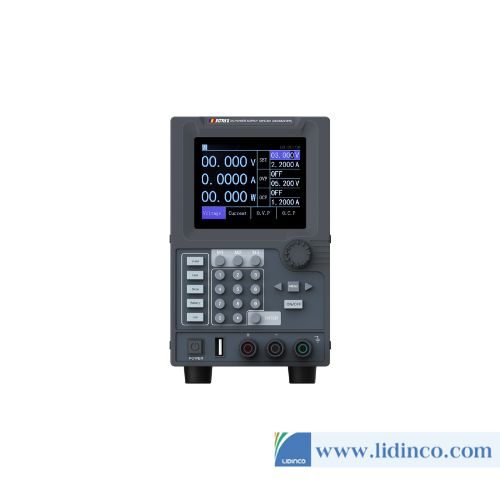

The MPS-300 Series are single-channel programmable DC power supplies, including models from MPS-301 to MPS-310, with output voltage ranging from 0~20V to 0~160V, current from 0~1A to 0~10A, and power from 100W to 360W. They are suitable for production line testing, laboratory R&D, and other scenarios. Equipped with a 3.5-inch high-visibility TFT screen, they support two operation modes: direct input via a numeric keypad and knob adjustment, ensuring clear and intuitive display of parameters and status. External USB drives can be connected for file saving and reading. Core functions are rich: List sequence output supports up to 99 steps, with customizable voltage, current, and dwell time for each step; trigger modes include automatic, button, and external triggering, with cycle counts up to 99999.

The battery charging function allows setting of standard voltage, standard current, trickle voltage, trickle current, end current, and charging time, automatically terminating charging when conditions are met to protect the battery. With adjustable rise slope and signal output function, they come standard with RS-232/RS-485/USB interfaces compatible with SCPI and Modbus protocols, adapting to automated systems. Featuring voltage resolution of 1mV, current resolution of 0.1mA, and load regulation as low as ≤0.1%+5mA, they balance high precision and reliability.

Features

•Voltage output range: 0~160V; Current output range: 0~10A; Maximum power coverage: 100W~360W
•High-precision display with resolution: 1mV for voltage, 0.1mA for current
•Battery charging function
•Adjustable CC/CV priority
