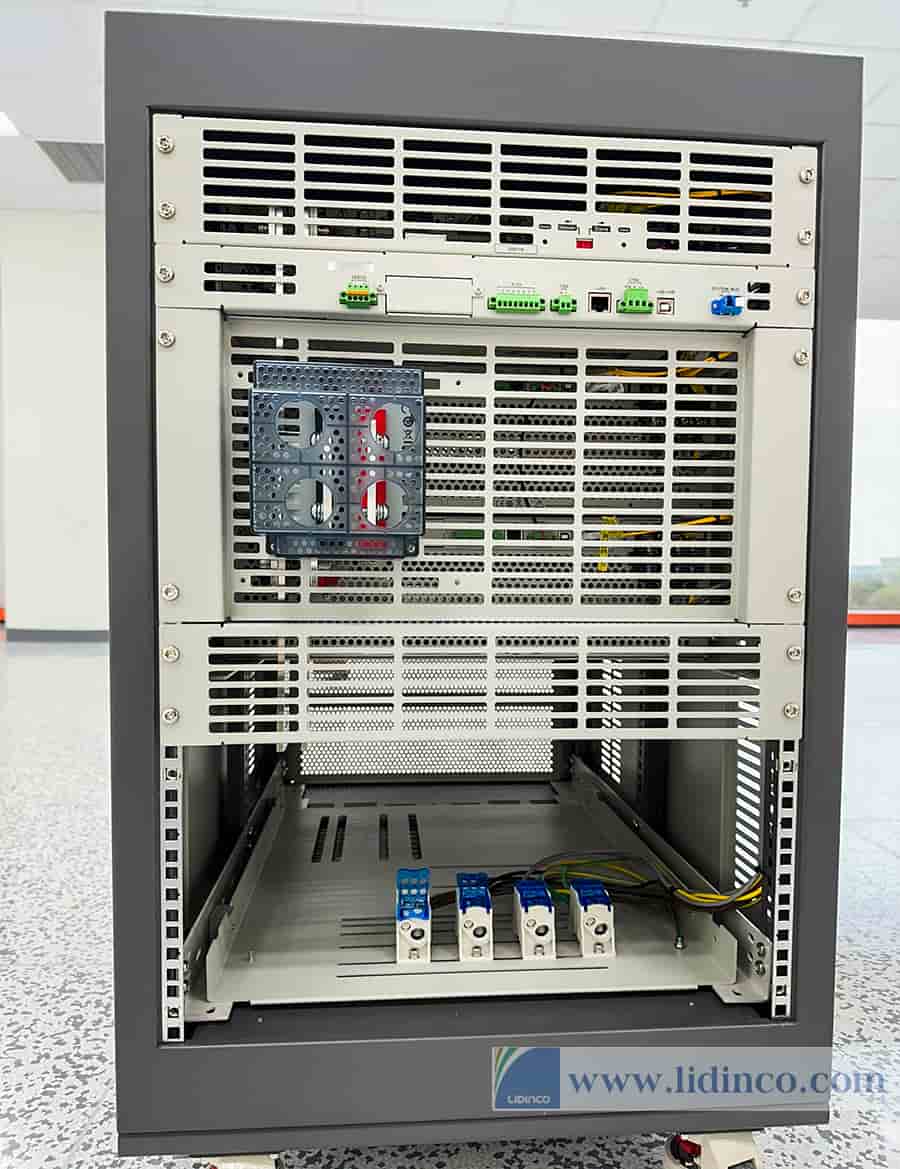

Bidirectional Programmable DC Power Supply Itech IT6000C Series

Name: Bidirectional Programmable DC Power Supply Itech IT6000C Series
Brand: Itech
SKU: IT 6000C
Price: 0VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

IT 6000C

0 ratings

Brand:

Itech

Warranty:

N/A

Price: Contact

Please contact to check stock

Request a quote

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Data is being updated

Description product
Accessories

Product DC IT6000C

IT6000C series is a bi-directional programmable DC power supply which adopts the third generation SiC-base technology. It integrates the source and sink function in one unit. Based on these two functions, IT6000C offers the functionality of two-quadrant operation. The regenerative capability enables the energy consumed to be put back onto the grid cleanly, saving costs from energy consumption and cooling, while not interfering with the grid. IT6000C series provide max. output voltage up to 2250V, support master-slave paralleling with averaging current distribution , max. output power up to 2 MW. Built-in waveform generator supports generating arbitrary waveforms, and import LIST files for waveforms via front panel USB port. IT6000C is the combination of high reliability, high efficient setting, safe and multiple measurement functions.

Model	Voltage	Current	Power	Accuracy	Interface
IT6045C-80-1350	80V	1350A	45kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6030C-80-900	80V	900A	30kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6015C-80-450	80V	450A	15kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6015C-80-450	80V	300A	10kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6005C-80-150	80V	150A	5kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6144C-300-1800	300V	1800A	144kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6126C-300-1575	300V	1575A	126kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6108C-300-1350	300V	1350A	108kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6090C-300-1125	300V	1125A	90kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6072C-300-900	300V	900A	72kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6054C-300-675	300V	675A	54kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6036C-300-450	300V	450A	36kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6018C-300-225	300V	225A	18kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6012C-300-150	300V	150A	12kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6006C-300-75	300V	75A	6kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6120C-80-2040	80V	2040A	120kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6105C-80-2040	80V	2040A	105kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6090C-80-2040	80V	2040A	90kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6075C-80-2040	80V	2040A	75kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6060C-80-1800	80V	1800A	60kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6054C-800-225	800V	225A	54kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6036C-800-150	800V	150A	36kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6018C-800-75	800V	75A	18kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6012C-800-50	800V	50A	12kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6006C-800-25	800V	25A	6kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6144C-500-960	500V	960A	144kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6126C-500-840	500V	840A	126kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6108C-500-720	500V	720A	108kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6090C-500-600	500V	600A	90kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6072C-500-480	500V	480A	72kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6054C-500-360	500V	360A	54kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6036C-500-240	500V	240A	36kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6018C-500-120	500V	120A	18kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6012C-500-80	500V	80A	12kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6006C-500-40	500V	40A	6kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6036C-2250-50	2250V	50A	36kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6018C-2250-25	2250V	25A	18kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6144C-1500-320	1500V	320A	144kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6126C-1500-280	1500V	280A	126kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6108C-1500-240	1500V	240A	108kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6090C-1500-200	1500V	200A	90kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6072C-1500-160	1500V	160A	72kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6054C-1500-120	1500V	120A	54kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6036C-1500-80	1500V	80A	36kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6018C-1500-40	1500V	40A	18kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6144C-800-600	800V	600A	144kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6126C-800-525	800V	525A	126kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6108C-800-450	800V	450A	108kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6090C-800-375	800V	375A	90kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6072C-800-300	800V	300A	72kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6144C-2250-200	2250V	200A	144kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6126C-2250-175	2250V	175A	126kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6108C-2250-150	2250V	150A	108kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6090C-2250-125	2250V	125A	90kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6072C-2250-100	2250V	100A	72kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
IT6054C-2250-75	2250V	75A	54kW	≤0.03%+12mV/ ≤0.05%+20uA	USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
