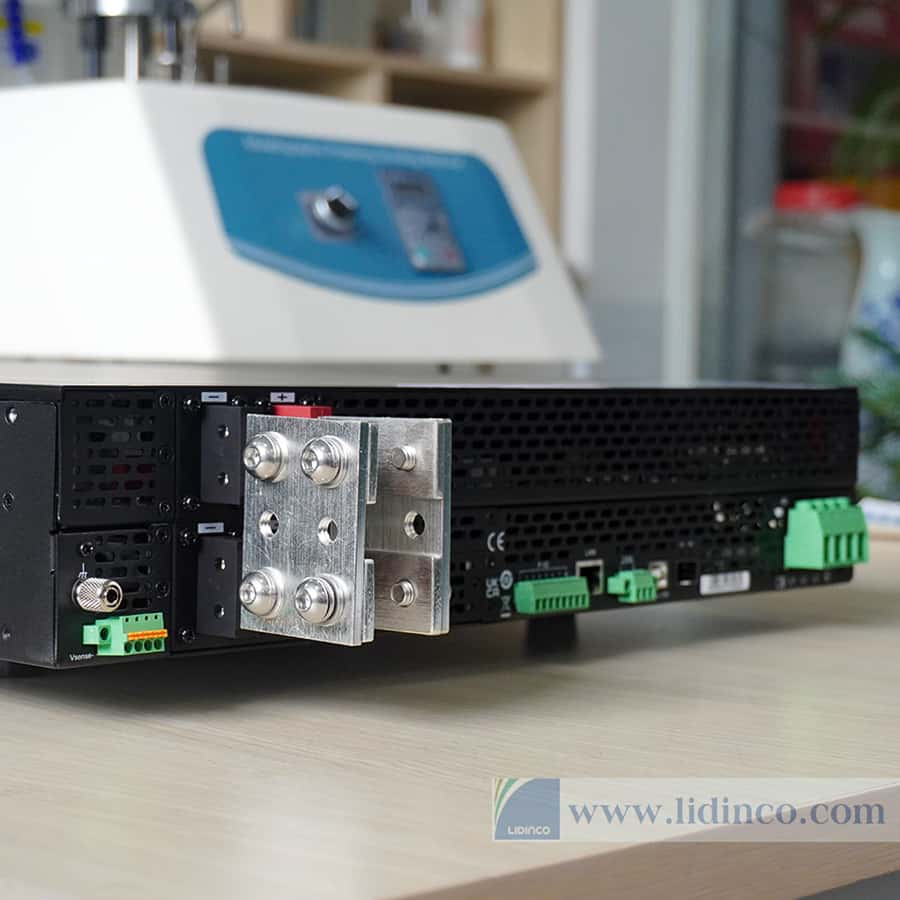

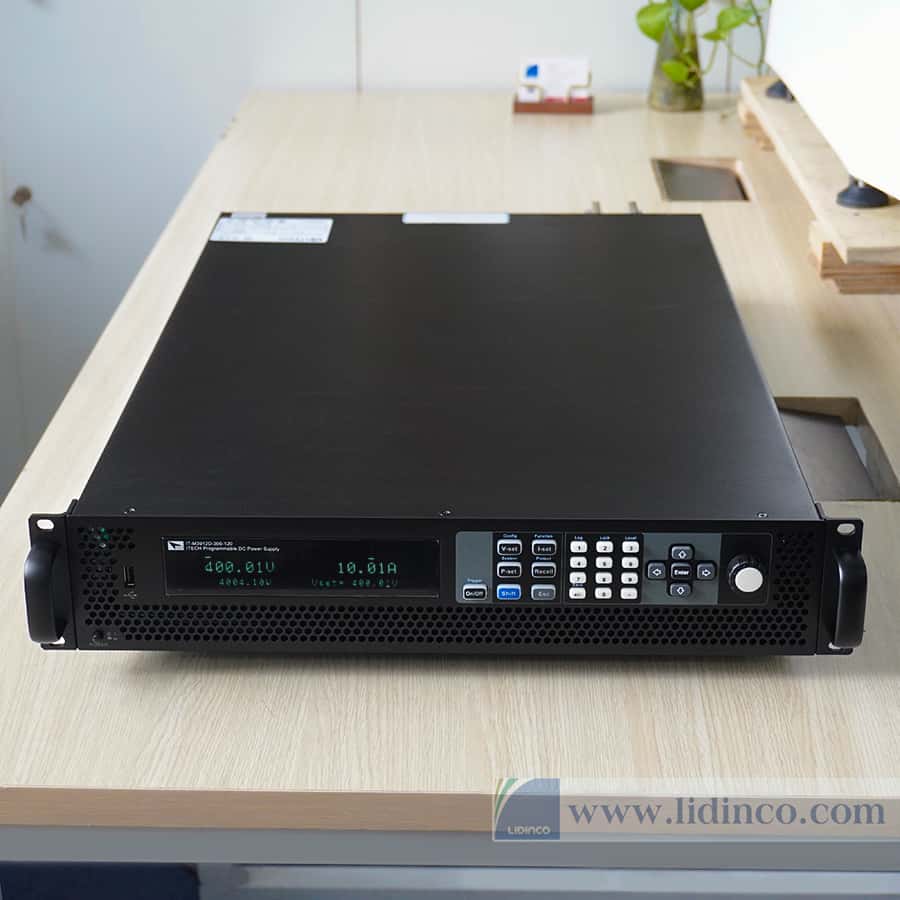

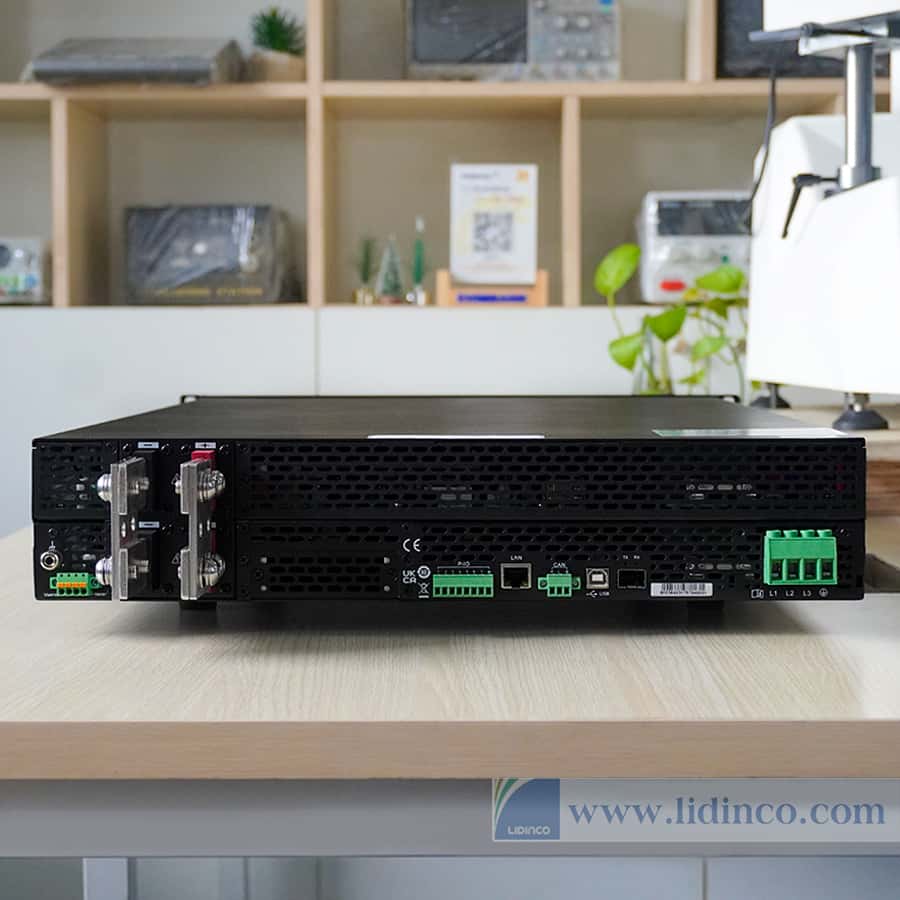

DC power supply Itech IT-M3912D-300-120

Description

High power DC power supply Itech IT-M3912D-300-120 is a single channel output programmable DC power supply. The density structure design can effectively save rack space. Also with wide-range output design, can provide a wider range of voltage and current combinations within the specified power range. One unit can be used as multiple power supplies, more flexibility. The CC/CV priority allows user to switch the output mode according to the different needs of the DUT priority, match with the high-precision and high-speed product characteristics, and a variety of standard communication interfaces, simplifying and speeding up the test development, can meet users' variety testing application, widely used in laboratories, production lines, and automatic test systems.

Feature

♦ Compact design，power up to 6kW in 1U space, power up to12kW in 2U space
♦ Voltage range: 300V
♦ Current range: 120A
♦ Power range: 12kW
♦ Wide range of output design, one unit can be used as multiple power supplies
♦ With simple master/slave parallel connection, expand power while maintaining performance*1
♦ CC/CV priority
♦ Adjustable output impedance
♦ Built-in function generator, support arbitrary-waveform generating
♦ List function, up to 200 steps can be set
♦ Support multiple working modes, adjustable rise and fall time
♦ The front panel supports the insertion of USB storage devices to meet the import of List files/Export, data logging functions, etc.
♦ Standard build-in USB/CAN/LAN/digital IO communication interface, optional GPIB/analog & RS232
