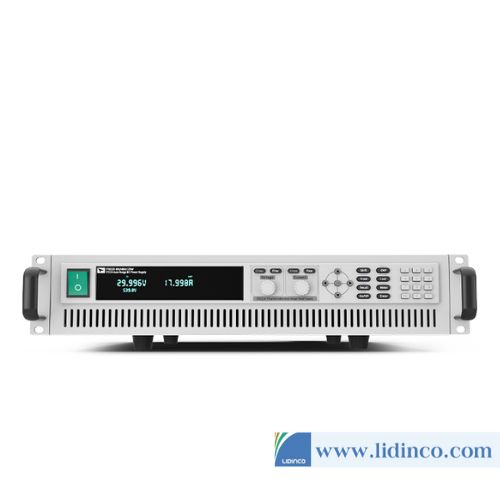

Wide-range High-power DC Power Supply Itech IT6500 Series

Description DC IT6500 Series

IT6500 series wide range high powerDC power supply provides users with a very wide range of choices, the wholeseries includes from 800W to 6kW, as well as up to 1000V, 240A output range, atthe same time has an ultra-wide range of voltage and current.

IT6500C serieshas rich measurement and high-speed response function, while IT6500D series has high performance and stable outputfunction, users can easily choose according to their requirements. IT6500 canbe used in a variety of applications, including automotive, green energy, highspeed testing, high power testing, etc. It is a dc power supply with richfeatures, excellent performance and a wide range of applications.

Features IT6500 Series

♦ Support multiple power supplies paralleling in Master-Slave mode and ensures each power supply equally shares the load current. Extension capacity is up to 30kW output.
♦ Support various modes (CV/CC/CP), independent edge setting
♦ Adjustable rising and falling time
♦ Built-in DIN 40839, ISO-16750-2, SAEJ1113-11, LV124 and ISO2184 standard voltage curve for automobile power net *2
♦ Support solar panel I-V curve simulation function *3
♦ LIST mode programming
♦ Variable output impendence function *1
♦ Low ripple and low noise
♦ High resolution and high accuracy
♦ Support multiple protections (Power Supply: OVP,OCP,OPP; Vsense Reverse protection, turn-off protection, input under voltage protection
♦ Remote sense function
♦ Analog control interfaces
♦ Built-in USB/RS232/CAN/LAN interfaces
*1 Limit IT6500C series have this function
*2  Limit IT6500C series have this function, IT6512 and IT6513 are built-in DIN 40839, ISO-16750-2
*3 Optional SAS1000 software

Specification IT6500 Series
