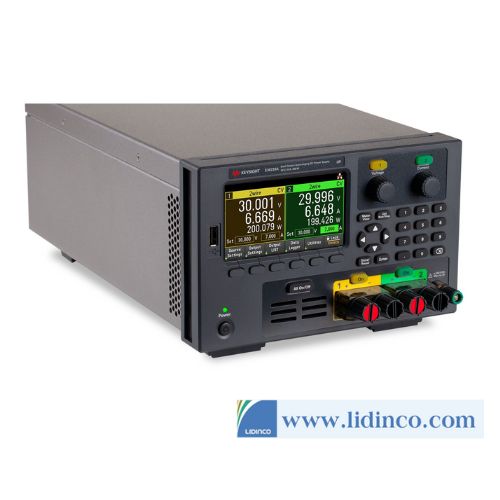

Autoranging Dual Output Power Supply Keysight E36233A 400W

The E36200 series consists of two 200 W single output power supplies and two 400 W dual output power supplies. Autoranging technology provides the highest current available at all output voltage. Power devices with up to 40 A (E36233A) or voltage up to 120 V (E36234A) using auto-parallel or auto-series to internally connect the two outputs into a single output with twice the power. A single output supply can power devices requiring up to 200 W. A dual output supply provides two independent 200 W channels which can be combined into a single 400 W channel.

E36233A provides more useable power with autoranging architecture, dual output in a bench friendly design with full programmability; LAN, USB and GPIB interface.

Feature

Clean, reliable power:
• Low output ripple and noise
• Excellent programming/readback accuracy
• Excellent line/load regulation
• 2-wire or 4-wire remote sense
• Over voltage, over current, and over temperature protection

Convenient benchtop capabilities:
• Thermal-control fan speed for lower acoustic noise
• Auto series/parallel connections
• Front and rear output terminal

Intuitive and easy-to-use interfaces:
• 4.3-inch LCD color display
• Color coded channels
• Individual knobs for voltage and current
• E3633A and E3634A code compatible
• LAN (LXI), USB and GPIB (optional)

Advance characterization:
• Data logging
• Output sequencing
• LIST mode
• Low range current measurement
• Adjustable voltage slew rate
