Waveform Generator 33511B, 20MHz, 1-channel, Arb

Description

The 33511B waveform generator provides Keysight’s exclusive Trueform technology which offers unmatched capabilities for generating a full range of signals for your most demanding measurements.

Features:

Exclusive Trueform technology

- Unmatched capabilities for generating a full range of signals for your most demanding measurements
- Sine waves with 5x lower harmonic distortion for more pure signals
- Pulses up to 20 MHz with 10x less jitter for more precise timing
- Optional point-by-point arbitrary waveform capability with sequencing for more accurate representation of user-defined signals

Instrument features

- 160 MSa/s sampling rate for higher time resolution arbitrary waveforms
- 16-bit resolution with 1 mVpp to 10 Vpp amplitude for greater amplitude accuracy
- 1 MSa/channel standard waveform memory, optional 16 MSa/channel for your longest waveforms

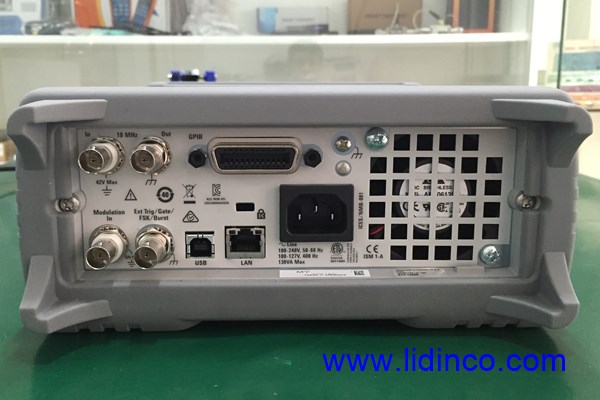

- USB, LAN (LXI-C), GPIB standard for quick and easy connectivity to PC or network

Waveform creation and editing

- Create a waveform from the front panel using the built-in editor
- Capture a waveform from an oscilloscope and download it to the generator
- Create a waveform in MATLAB, Microsoft® Excel, etc. and download it to the generator
- A BenchVue software license (BV0002B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences
