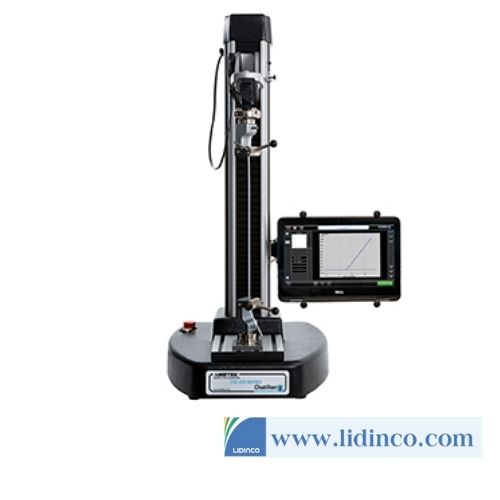

Advanced Force Test System Ametek CS2-1100

Description

The CS2 Series are high quality digital force testing machines optimized for production and laboratory testing of applications up to 5 kN (1100 lbf). These force testing machines are an excellent choice for simple testing within plastic, rubber, packaging, pharma, cosmetic, electronics and wood.

These robust force measurement machines provide their operators with an easy-to-use, intuitive and straight-forward method for tensile testing (Pull), compression testing (Push), shear testing, flexural testing or advanced multi-stage testing adherent to ISO and ASTM testing procedures.

The CS2 Series feature a 2-in-1 laptop console with a user-friendly, robust and reliable 13” touch screen for use in production environments. The screen offers both graphical and tabular results along with a very intuitive user interface regardless of the operator skill level. A few touches are all it takes to set up a test, select runs and present reports.

The set up parameters include limit testing (load, distance and time), break testing, cyclic and loop testing, multi-stage / user defined testing, spring rate calculation and height measurement.

The CS2 Series is available in a 1 kN (225 lbf) and a 5 kN (1124 lbf) frame capacity.

The CS2-225 offers a large work area with 180 mm throat depth and a 500 mm crosshead travel. This model is ideal for testing applications up to 1 kN (225 lbf). The CS2-1100 offers 150 mm throat depth and a 800 crosshead travel and is ideal for testing applications up to 5 kN /1124 lbf).

Both models have a speed accuracy better than 1%.

No personal computer, propriety software or knowledge of programming language is required.

CS2 Series Key Features:

– Intuitive, user-friendly 2-in-1 laptop
– Colorful 13″ screen for easy and fast test setups
– Robust construction
– Flexible “T” Slot mounting base for custom fixturing
– Results and statistics are exported to CSV and PDF formats
– Automatic export of results via RS232 interface after each test
– 100 kHz data sampling
– Multilingual and multi-unit display options as standard
