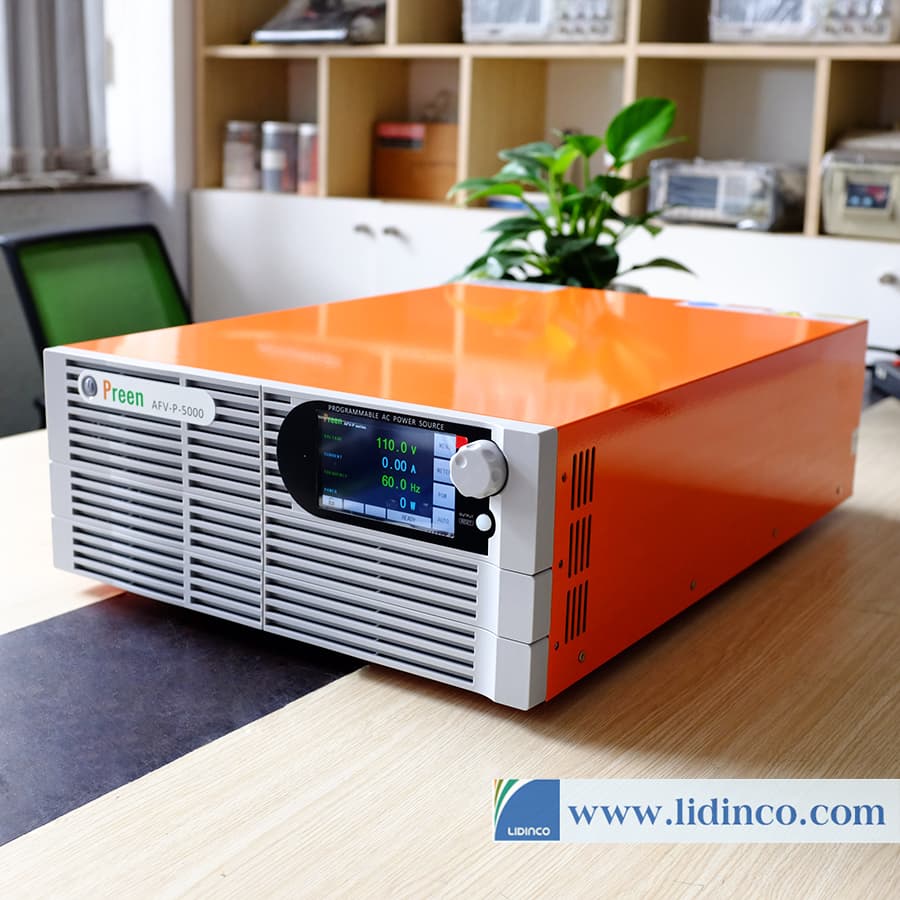

High Performance Programmable AC Power Source Preen AFV-P-5000

Description

AFV-P Series is a programmable AC power source with DC output and precision measurement. This compact power source provides clean power with THD less than 0.3% at 50/60 Hz and it delivers output voltage of 0-310 V and frequency of 40-500Hz (opt. 15-1000 Hz). It is ideal for commercial, defense and aerospace test applications from quality assurance, design verification, ATE to mass production.

Features

– Compact and high power density: 600VA to 2500VA is only 2U and 5000VA is 4U.
– AC source with DC output: extend the applications to DC testing.
– Wide output voltage of 0-310V and output frequency of 15-1000Hz.
– THD is only under 0.3 % when output power is under 100 Hz.
– Ideal for inrush current: capable to deliver up to 4.5 times of peak current.
– Start/End phase angle: users can define the start and end phase angle from 0° to 360°.
– Current foldback feature: have output current maintain constant based on the load which output voltage varies.
– STEP and RAMP function: ideal for voltage and frequency variation tests and effectively reduces the inrush current during motor startup.
– TRANSIENT generation provides users an easy setup for power line disturbance (PLD) simulation.
– Free control software and LabVIEW driver: allow users to easily program and remote control.

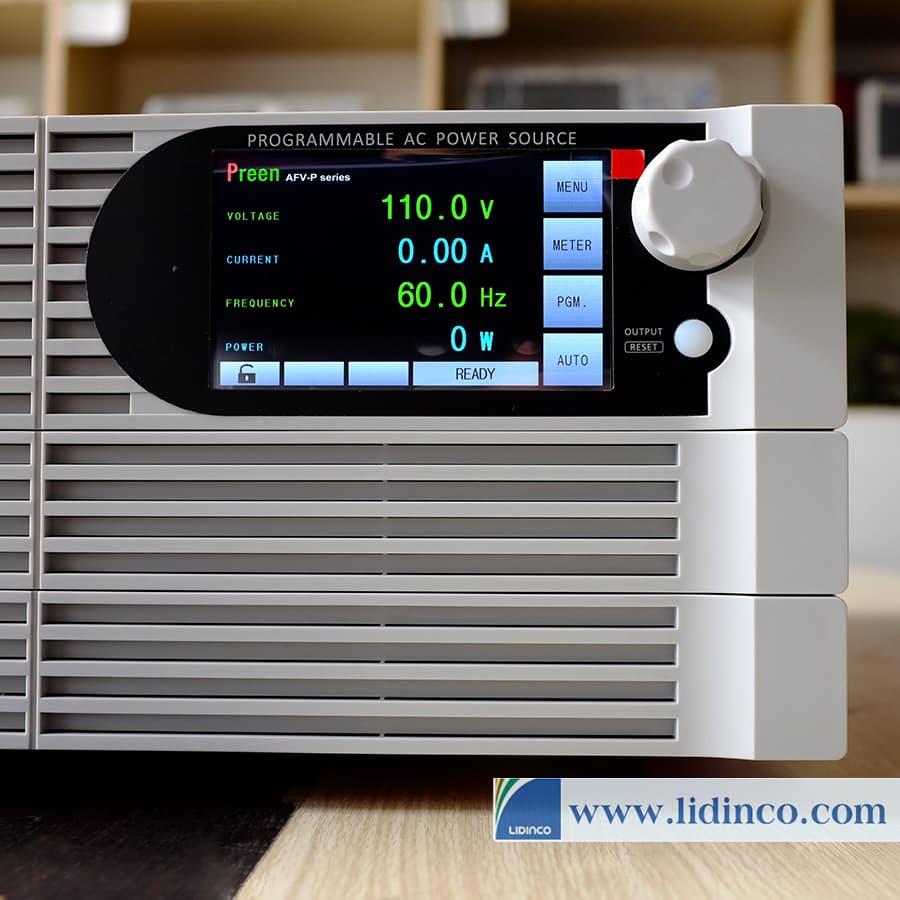

– Users can quickly set and view the parameters via 5 inches touch panel or rotary knob, which provides an easy operation and measurement display.
– High slew rate: less than 300 μs from 0~90% output voltage.
