Surface microphone PLACID PMN3221

Surface microphone PLACID PMN3221

Model:
PMN3221
Price: Contact
  • Available: Please contact
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: [email protected]
  • Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: [email protected]
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

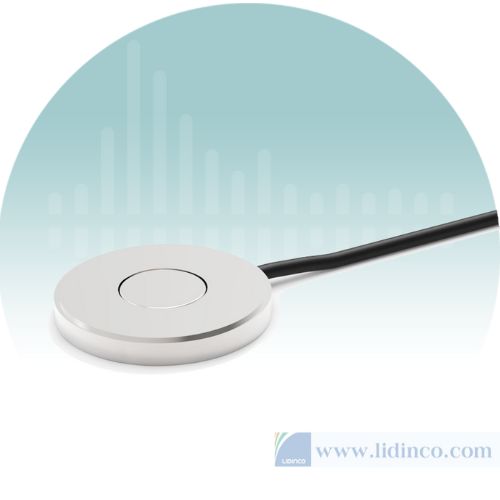

PLACID PMN3221 Surface Microphone

The PLACID PMN3221 is a specialized surface microphone designed for high-precision surface acoustic measurements. This product is particularly suitable for acoustic testing applications in demanding environments such as automotive and aircraft surface noise testing, and surface acoustic radiation measurements.

Key Features:

  • Wide frequency range: 10 Hz ~ 10 kHz (±1dB), extended from 5 Hz ~ 20 kHz (±3dB)
  • High sensitivity: 2 mV/Pa with ±3dB accuracy
  • Large dynamic range: Up to 164 dB with distortion below 3%
  • Compact design: Only 20mm diameter, 2.5mm height, weighing 3.5g
  • IEPE power supply: Low current consumption of only 4mA
  • Operating temperature: -10°C to 50°C

Applications:

  • Wind tunnel acoustic testing
  • Automotive and aircraft surface noise measurement
  • Surface acoustic radiation analysis
  • Research and development in automotive and aerospace industries

The PMN3221 is an ideal choice for acoustic engineers and researchers who require accurate and reliable measurement equipment under demanding test conditions.
