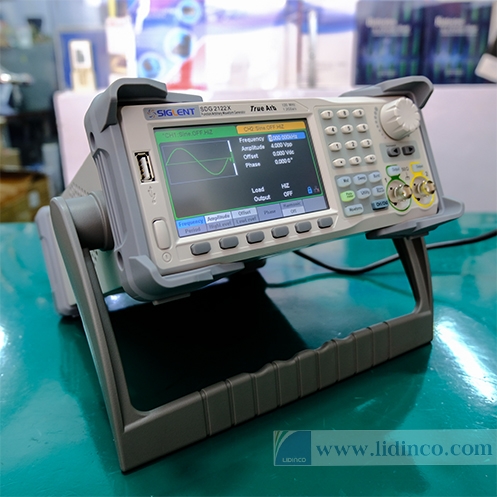

Arbitrary Function Generator SDG 2122X, 120MHz 2 Channels

Arbitrary Function Generator SDG 2122X, 120MHz 2 Channels

Model:
SDG2122X
Origin:
China
Manufacturer:
Price: Contact
  • Frequency:
  • Sampling Rate:
  • Waveform Length:
  • Vertical Resolution:
  • Available: Please contact
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: [email protected]
  • Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: [email protected]
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Max output frequency: 120MHz

Minimum rise/fall time: 1 nsec

Maximum sampling rate: 1.2 GSa/s

Vertical resolution: 16-bit

Waveform Memory: 8 pts ~ 8 Mpts

Channel: 2

Sine wave: 1μHz ~ 120MHz

Square wave: 1μHz ~ 25MHz

Sawtooth wave: 1μHz ~ 1MHz

Pulse Wave: 1μHz ~ 25MHz

Noise (-3dB): 120MHz

Arbitrary wave: 1μHz ~ 20MHz

Weight: 10 lbs

Dimensions: 10.2 × 4.2 × 11.6 inches

Description

SIGLENT’s SDG2000X is a series of dual-channel function/arbitrary waveform generators with specifications of up to 120 MHz maximum bandwidth, 1.2G Sa/s sampling rate and 16-bit vertical resolution. The proprietary TrueArb & EasyPulse techniques help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. With advantages above, SDG2000X can provide users with a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.

Máy phát xung Siglent SDS2042X

Key Features

- Dual-channel, 120MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range
- High-performance sampling system with 1.2GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost
- Innovative TrueArb technology, based on a point-by-point architecture, supports any 8pts~8Mpts Arb waveform with a sampling rate in range of 1μSa/s~75MSa/s
- Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
- Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK and PWM
- Sweep and Burst function
- High precision Frequency Counter
- Standard interfaces: USB Device, USB Host, LAN(VXI-11, support U Disk storage and software, upgrading GPIB port is optional
- 4.3” touch screen display for easier operation

Accessories

Power Cord

BNC cable

Quick Start Guide-SDG
