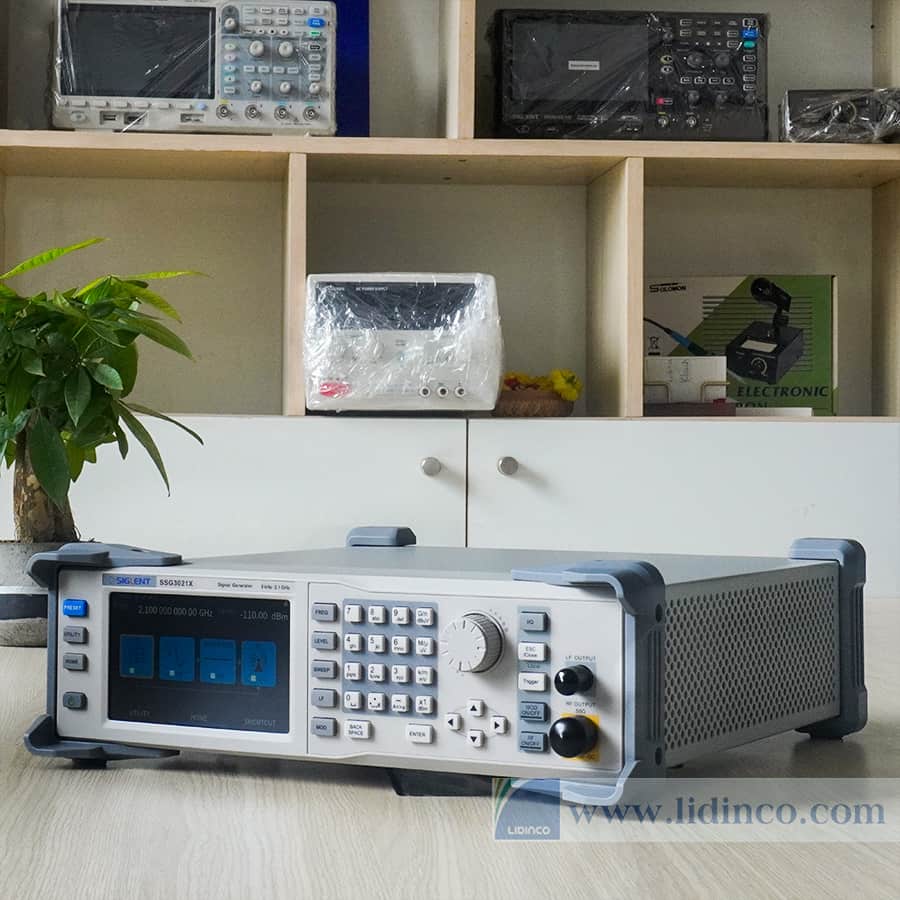

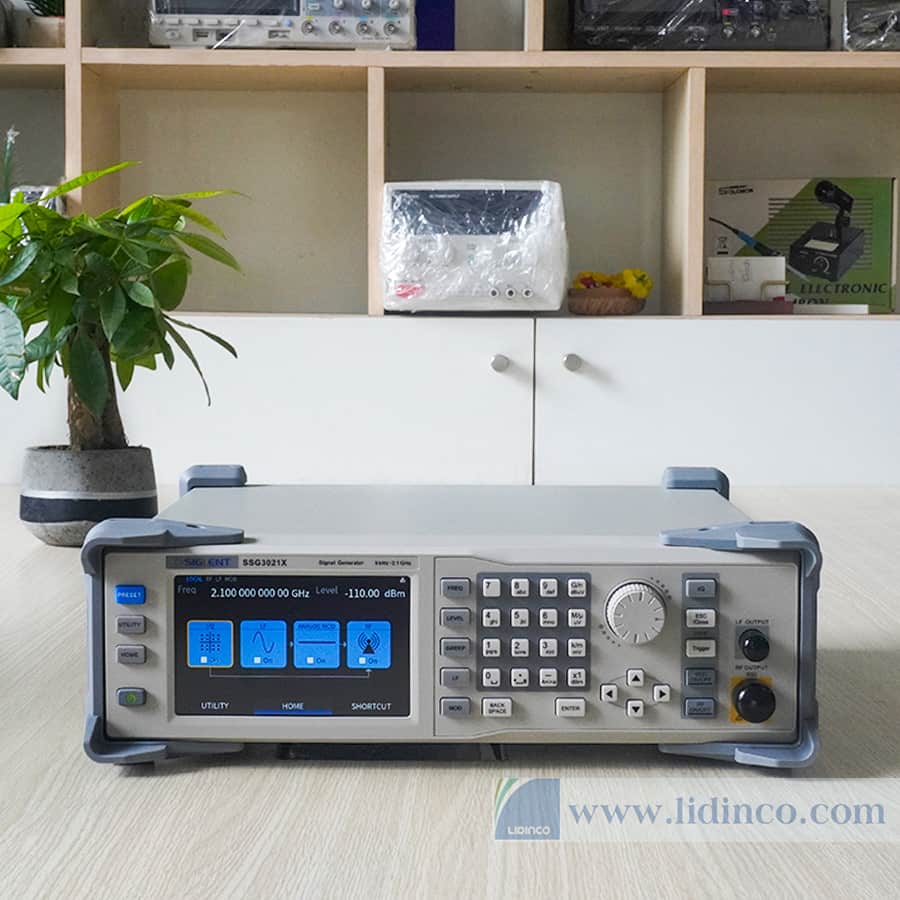

SSG3021X RF Generator 2.1GHz

Name: SSG3021X RF Generator 2.1GHz
Brand: Siglent
SKU: SSG3021X
Price: 0VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

SSG3021X

0 ratings

Brand:

Siglent

Warranty:

N/A

Price: Contact

Please contact to check stock

Request a quote

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Frequency range: 9 KHz ~ 2.1 GHz

Amplitude Resolution: 0.01 Hz

Phase noise: -110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.)

Module i/Q output: No

Maximum output power: +20 dBm

Harmonics: CW mod, 1 MHz<f≤3.2 GHz, Level +13 dBm / <-30 dBc

Sub harmonics: CW mod, 1 MHz<f≤3.2 GHz, offset >10 kHz Level ≤ +13 dBm / <-45 dBc

Non-harmonics: CW mod, offset>10 kHz, Level +13 dBm 1 MHz<f≤1.5 GHz / <-65 dBc

SSB phase noise: f=100 MHz / <-118 dBc/Hz (typ.)

Display: TFT LCD, RGB (800 x 480) 5inch . capacitive touch screen

Dimensions: (W × H × D) = 338 × 113 × 369mm

Weight: Contains IQ modulation board 4.84 kg

Description product
Accessories

Description

SIGLENT’S SSG3021X signal generators hase a frequency range of 9 kHz to 2.1 GHz. The SSG3021X provides normal analog modulation such as AM, FM, and PM. It also provide pulse modulation and pulse train generator

Key Features:

- Includes built-in high precision, 200 MHz frequency counter
- Multiple modulation functions, sweep-frequency function, pulse train function
- Standard PC connections: USB Device, USB Host, U-Disk storage and software, GPIB (optional)
- Seamlessly connects to the SDS series digital oscilloscopes
- Remote computer contro

Accessories

1 x Siglent SSG3021X Signal Generator
1 x Quick start Guide
1 x Guarantee Card
1 x Power Cord
1 x USB Cable

SSG3021X RF Generator 2.1GHz

Datasheet
SSG3021X

Manual
SSG3021X
