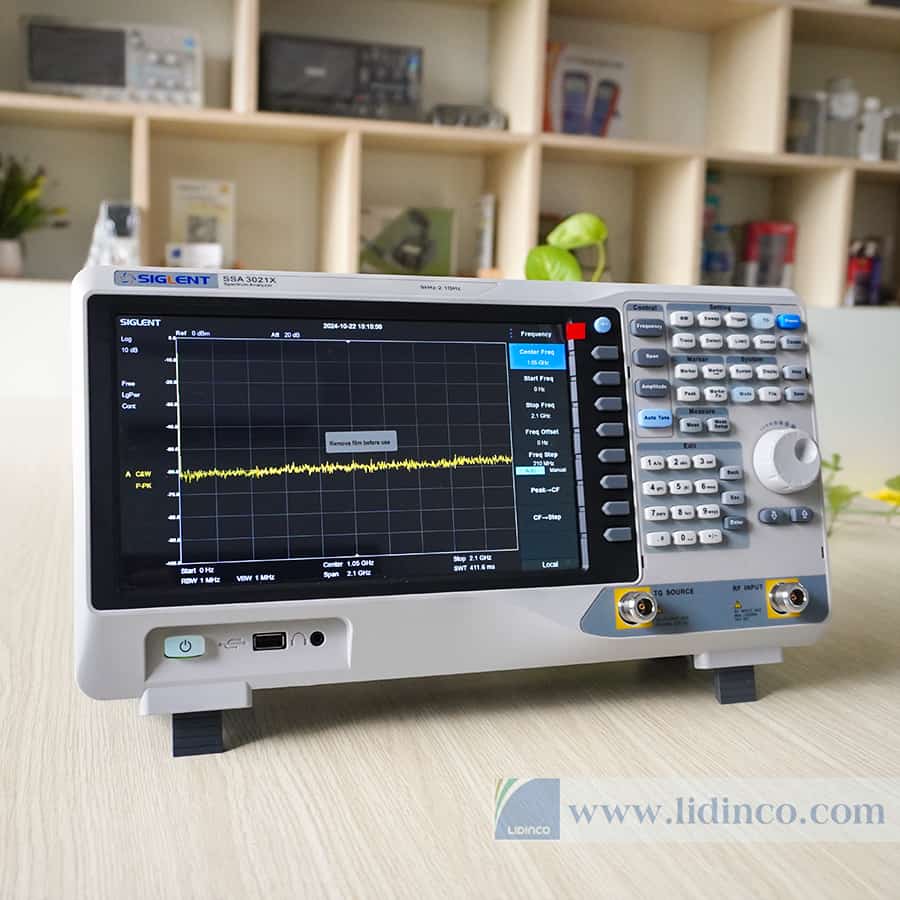

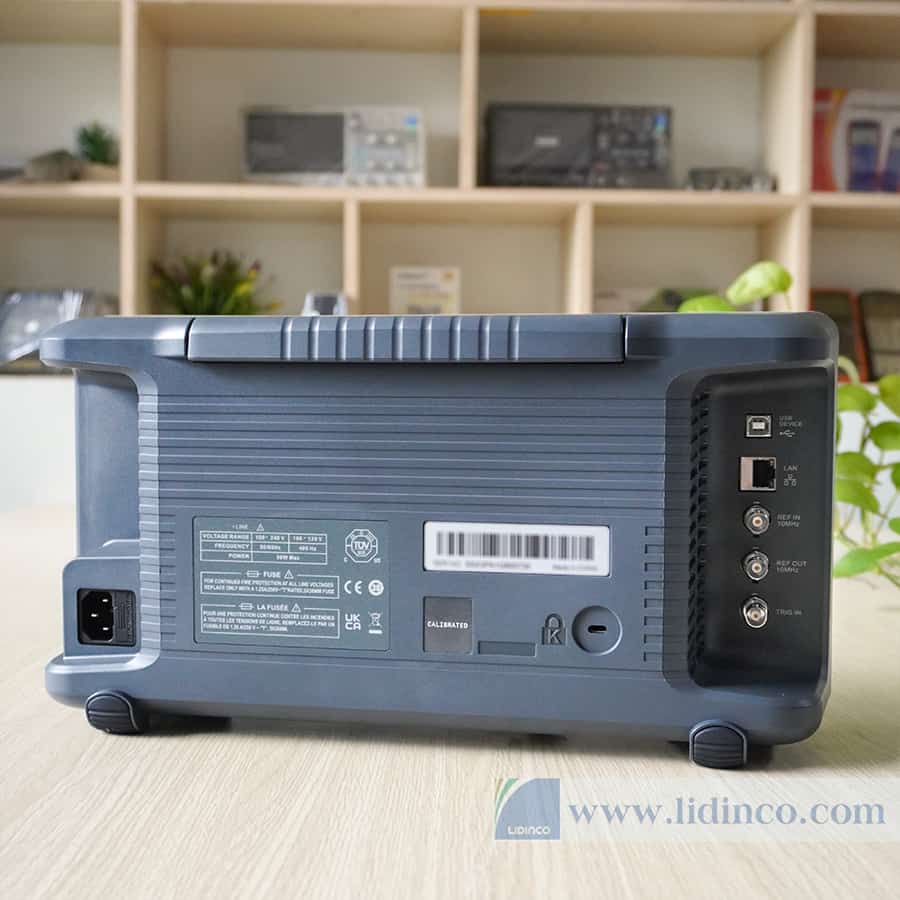

Spectrum analyzer Siglent SSA3021X, 9KHz ~ 2.1GHz

Name: Spectrum analyzer Siglent SSA3021X, 9KHz ~ 2.1GHz
Brand: Siglent
SKU: SSA3021X
Price: 32.800.000VND VND
Availability: InStock
Rating: 5.00 (1 reviews)

SKU:

SSA3021X

1 ratings

Brand:

Siglent

Warranty:

N/A

32.800.000đ

(Price does not include VAT)

1 products available

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Frequency range: 9 kHz~2.1 GHz

Frequency resolution: 1Hz

Bandwidth resolution: 1 Hz~1 MHz, 1-3-10 sequence printing

DANL: -161 dBm/Hz, Normalize to 1 Hz (typ.)

Phase noise: < -98 dBc/Hz@1 GHz, 10 kHz offset

Amplitude Accuracy: < 0.7 dB

Reference frequency: 10000000 MHz

Reference Intensity: -100 dBm to +30 dBm, 1 dB step

Gain: 20 dB (nom.), 9 kHz~3.2 GHz

Input loss: 0~51 dB, 1 dB step

Maximum input DC voltage: +/- 50 VDC

Frequency response

Preamp off:±0.8 dB | ±0.4 dB (typ.)

Open preamp: ±0.9 dB |±0.5 dB (typ.)

Scan time: 1 ms to 3000 s

Scan Accuracy: Accuracy, Speed

Display: TFT LCD, 1024×600 10.1 inches

Dimensions: 393 mm×207 mm×116.5 mm (W×H×D)

Weight: 4.60 kg

Description product
Accessories

Description

Siglent’s SSA3000X family of spectrum analyzers offer a frequency range of 9 KHz to 2.1 GHz / 3.2 GHz. With their light weight, small size, and friendly user interface, the SSA3000s present a bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications are many, but include research and development, education, production, maintenance, and many more.

Economical Spectrum Analyzer with Excellent Performance

With their light weight, small size, and friendly user interface, the SSA3000X present a large, bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features. Applications include research and development, education, production, maintenance, and pre-compliance testing.

Bandwidth 9 kHz to 2.1 GHz / 3.2 GHz, minimum resolution bandwidth 1 Hz
Display average noise level below -161 dBm/Hz, full amplitude accuracy better than 0.7 dB
Standard preamplifier, remote control instruction set, EasySpectrum PC software
Free tracking generator, transmission response, VSWR measurement, signal power measurement, EMI pre-compliance test

Low-cost EMI Pre-compliance Solution

Extensive features and accessory support for EMI diagnostics and EMI pre-compliance testing, including:
Test compensation Correction, frequency response compensation for probe, antenna, LISN, cable
Support Limit line , Including EMI international standard limit template, or user-defined limit line
Compliant CISPR 16 EMI filter and quasi-peak detector for quasi-peak measurement dwell time
Support SRF5030T near-field probe set to find interference sources for radiation, cables, PCBs, etc.
Provide SEM5040A artificial power network for single-phase device conducted disturbance voltage measurement
EasySpectrum PC software, supports complete EMI pre-compliance test automation implementation process
The PC software also supports the file configuration of the whole process, which is convenient for project management.

Que đo từ trường phạm vi gần Siglent SRF5030T

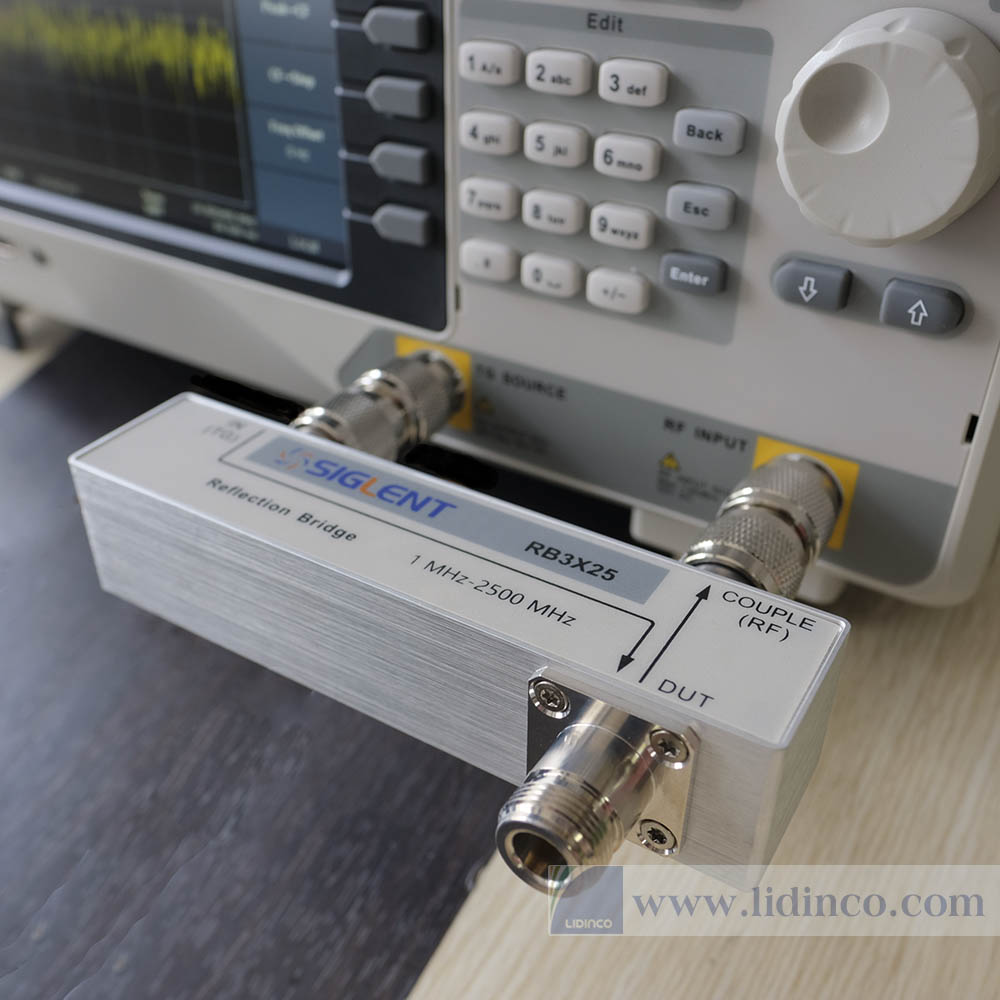

Reflection Bridge 1MHz - 2500MHz RB3X25 -1

SWR and Transmission Response Measurement

The SSA3000X can be used as a network analyzer:
With the tracking generator, the filter transmission response and the cable insertion can be measured
With tracking source and external directional coupler (RB3X20), it can measure antenna and cable standing wave ratio VSWR, return loss

Abundant Power Measurement

With a wealth of wireless communication signal power measurement capabilities:
