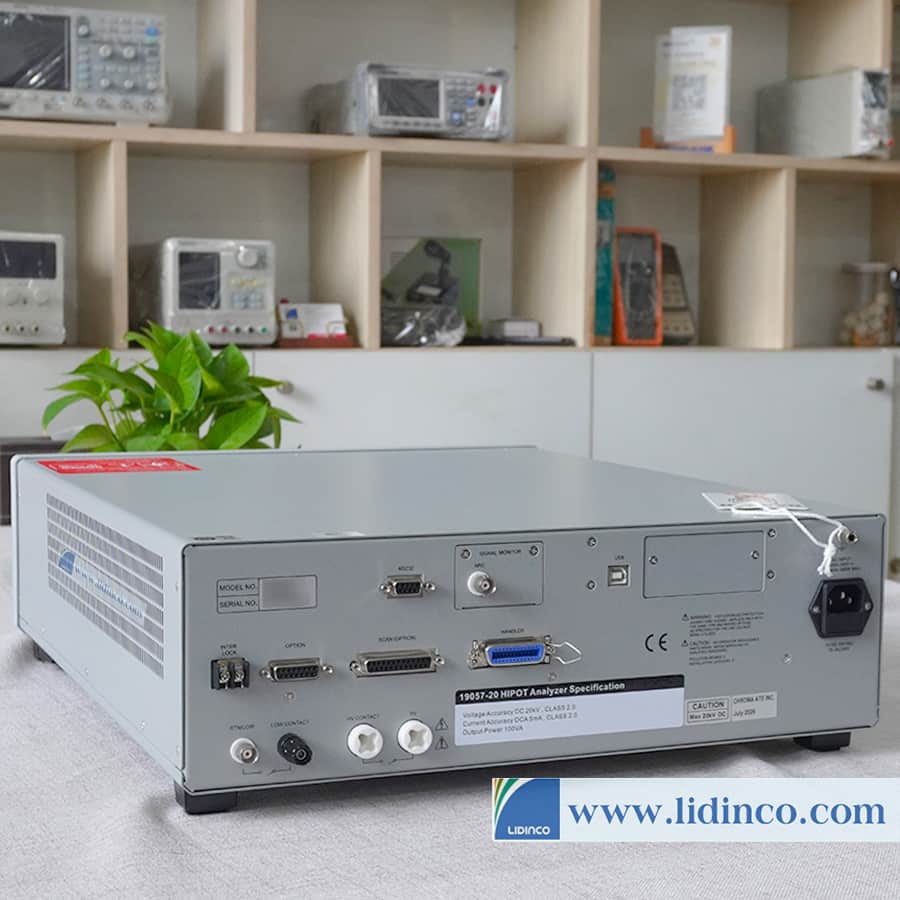

Hipot Tester Chroma 19057-20

Hipot Tester Chroma 19057-20

SKU:
19057-20
Brand:
Warranty:
N/A
Price: Contact
  • Measuring Function:
  • DC Voltage Test:
  • Please contact to check stock
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

Description

The Chroma 19056/19057 Hipot Analyzer is specifically designed for testing and analyzing ultra-high withstand voltage. This series of models includes 10kVac/12kVdc/20kVdc with maximum AC20mA/DC10mA output capable of performing AC/DC withstand voltage and insulation resistance tests as well as contact check for production line testing. In addition to the patented Open Short Check (OSC), High Voltage Contact Check is added to test the components with high insulation capability for high voltage output to improve the testing reliability and efficiency.

Features

■ 10kV AC & 20kV DC withstand voltage test
■ 0.1MΩ~50GΩ insulation resistance test
■ Breakdown Voltage test (BDV)
■ Flashover Detection (ARC)
■ High Voltage Contact Check (HVCC)
■ High Frequency Contact Check (HFCC)
■ Open Short Check (OSC)
■ Ground Fault Interrupt (GFI) for human
protection circuit
■ Fast charge/discharge function
■ Programmable output & test limit
■ Standard USB, RS232 & HANDLER
interfaces
■ Optional GPIB interface
■ CE Mark

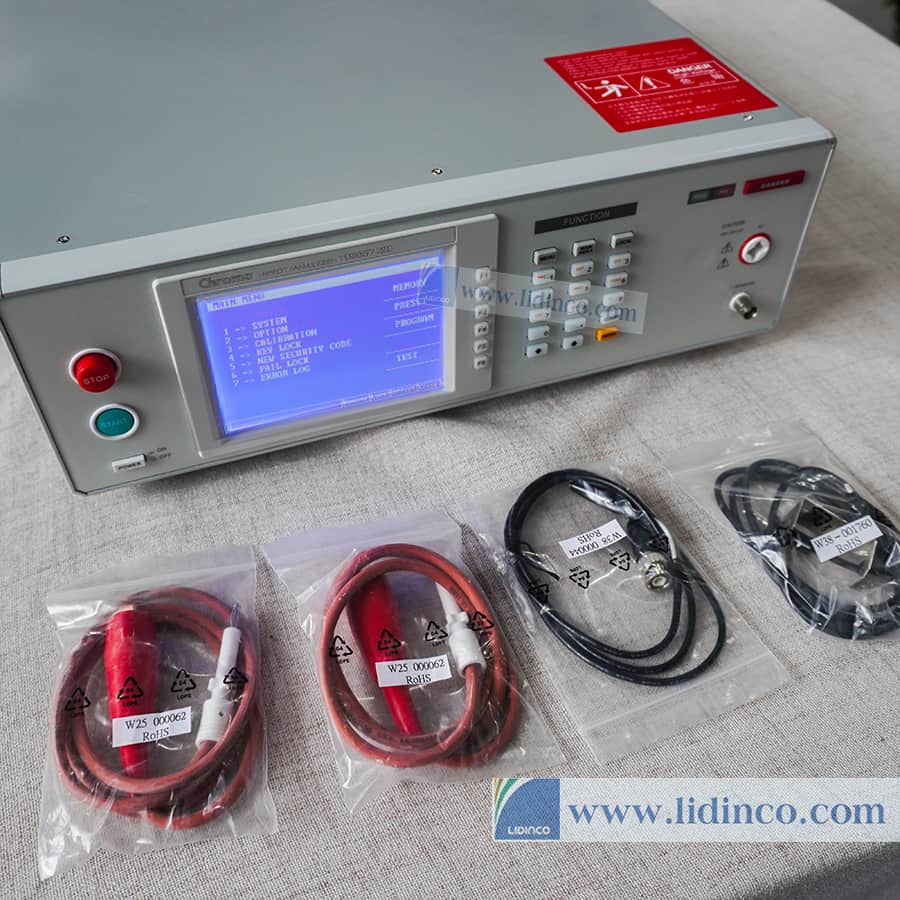

Accessories
