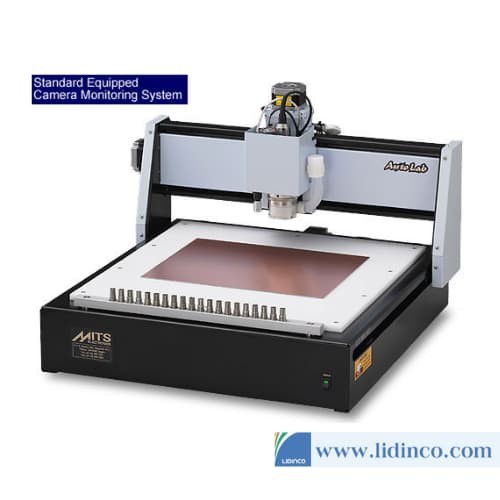

PCB Prototyping Mits Auto Lab W

Auto Lab W tool automatically changes up to 10 tool bits (20 tool bits optional) and it installs the spindle motor made in Japan, finely tuned and prevent run-out to the minimum. Tool change employs the electrical function without using the air compressor.

Standard camera monitoring system:

Magnify the surface of the board and display on a monitor. You can easily adjust the right position while viewing display.
(Maximum useful magnification depends on the size of the screen)

Specifications:

Model		Auto Lab W
Minimum pattern width (mm)		0.1 (4 mil)
Minimum milling width (mm)		0.1 (4 mil)
Working area (X/Y/Z) (mm)		400 x 365 x 45 (15.7″ x 14.3″ x 1.8″)
Table size (X/Y) (mm)		490 x 490 (19.3″ x 19.3)
Control axis		X, Y, Z
Control motor		Stepper Motor
Resolution (µm)		0.156 (0.00614 mil)
Maximum Travel Speed (mm/sec.)		80 (3.15″)
Spindle speed (min^-1) Spindle motor		5,000 – 62,000 (model 60) 5,000 – 100,000 (model 100) DC Brushless Spindle
Drilling (mm)		0.2 – 3.175 (8 – 125 mil)
Maximum drilling cycle (cycles/min.)		55
Maximum thickness of processed material (mm)		30 (1.18″)
Tool change		Automatic / 10 (20 tools by option)
Milling method	Absolute	No
	Incremental	Yes
Compressed air (Mpa)		—
Power consumption		100 – 240 V, 50-60 Hz, 200VA
Machine dimensions W x D x H (mm)		635 x 643 x 430 (25″ x 25.3″ x 17″)
Machine weight (kg)		Approx. 41 (90 lbs)
Interface		One USB or one RS-232C port
Standard equipment		Fiducial positioning camera x30 (USB) 10 Pieces Auto Tool Change Software: EASY CAD, Conversion & CAM
Options and accessories		Tool Change 20 Ring-setter / Precision ring-setter (manual) Drilling ring Microscope 100x Software: Vacuum cleaner
