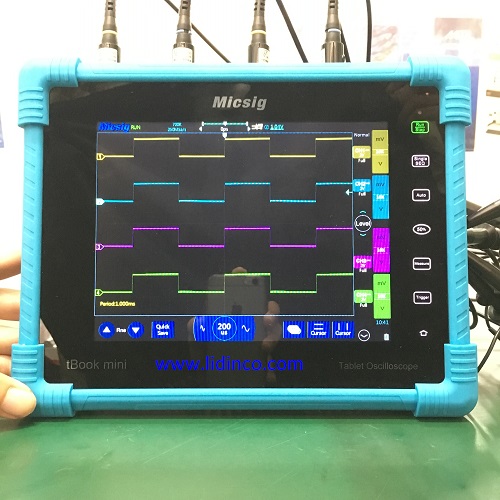

Tablet Oscilloscope Micsig TO1104, 100MHz, 4 CH

Tablet Oscilloscope Micsig TO1104, 100MHz, 4 CH

SKU:
TO1104
Brand:
Warranty:
N/A
Price: Contact
  • Bandwidth:
  • Sampling Rate:
  • Waveform Length:
  • Channels:
  • Please contact to check stock
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: sales@lidinco.com
  • Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: bn@lidinco.com
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

Description

tBook mini TO1000 series uses 8 inches industry TFT-LCD & 800*600 pixels display resolution,  2 or 4 channels, 70MHz & 100MHz bandwidth, 1 G Sa/s sample rate & up to 28Mpts memory depth and supports multi-touch capacitive screen, 256 intensity grading display and also supports LAN, WiFi, HDMI, USB Host, USB Device, Trigger out port and like that. Therefore, this series is your best choice for testing work.

tBook mini TO1000 series integrates all of advantages in one instrument: super low budget, rapid response, easy operation, technology UI and abundant features.

Specifications:

ModelTO1072TO1074TO1102TO1104
Bandwidth70MHz70MHz100MHz100MHz
Input Channel2424
Sample rate1GSa/S
Memory depth14Mpts28Mpts
Max capture rate80,000 wfm/s
Bandwidth limitation20MHz20MHz,   high pass, low pass
InterfaceWifi, LAN, HDMI,USB Host, USB Device, GND, DC Power,   Trigger out
Screen8 inches TFT LCD 800*600 pixels display resolution,14*10 display range
Dimension250*210*55mm
Battery(Optional)8,000mAh Li-ion battery
StandardProbe: 300MHz, 1X/10X Probe quantity   depends on number   of channels needed
Standard1unit Power adaptor input 100~240V,50~60Hz,2A;output DC12V/5A,
OptionalOscilloscope Handbag:Black Nylon
OptionalSuitcase:WR-16 ABS hard plastic suitcase
OptionalHigh voltage differential probe: 700Vpk/70MHz, 1500Vpk/70MHz, 1500Vpk/100MHz,   2800Vpk/100MHz, 7000Vpk/70MHz, 7000Vpk/100MHz
OptionalHigh frequency current probe: 30A/50MHz, 30A/100MHz , 150A/12MHz , 300A/6MHz 500A/5MHz
OptionalScreen Mask
