Tablet Oscilloscope Micsig TO1102, 100MHz, 2 CH

Name: Tablet Oscilloscope Micsig TO1102, 100MHz, 2 CH
Brand: Micsig
SKU: TO1102
Price: 0VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

TO1102

0 ratings

Brand:

Micsig

Warranty:

N/A

Price: Contact

Please contact to check stock

Request a quote

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Data is being updated

Description product
Accessories

Description

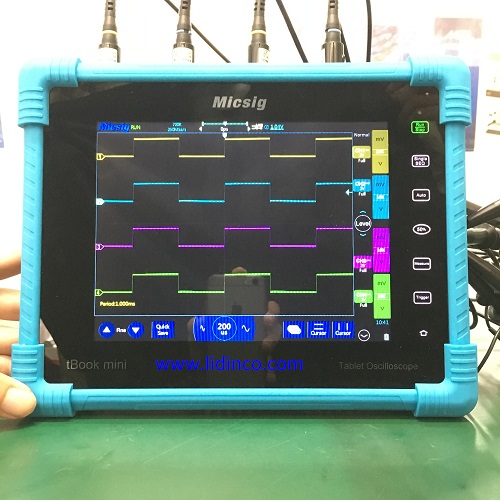

Tablet oscilloscope, will bring you an excellent operation experience which is different from traditional oscilloscope. You will give up all oscilloscopes with complicated buttons and knobs.

Micsig tablet oscilloscope tBook mini TO1000 series uses 8 inches industry TFT-LCD & 800*600 pixels display resolution, supports multi-touch operation. up to 28Mpts memory depth and 256 intensity grading display, 8G storage and also supports LAN, WiFi, HDMI, USB Host, USB Device. Unique file management, support iOS and Android and video record function.

Before you make the final decision, just spend one minter to compare, you will make the right decision.

Specifications:

Model	TO1072	TO1074	TO1102	TO1104
Bandwidth	70MHz	70MHz	100MHz	100MHz
Input Channel	2	4	2	4
Sample rate	1GSa/S
Memory depth	14Mpts		28Mpts
Max capture rate	80,000 wfm/s
Bandwidth limitation	20MHz		20MHz, high pass, low pass
Interface	Wifi, LAN, HDMI,USB Host, USB Device, GND, DC Power, Trigger out
Screen	8 inches TFT LCD 800600 pixels display resolution，1410 display range
Dimension	25021055mm
Battery(Optional)	8,000mAh Li-ion battery

Standard	Probe: 300MHz, 1X/10X Probe quantity depends on number of channels needed
Standard	1unit Power adaptor input 100~240V，50~60Hz，2A；output DC12V/5A，
Optional	Oscilloscope Handbag：Black Nylon
Optional	Suitcase：WR-16 ABS hard plastic suitcase
Optional	High voltage differential probe: 700Vpk/70MHz, 1500Vpk/70MHz, 1500Vpk/100MHz, 2800Vpk/100MHz, 7000Vpk/70MHz, 7000Vpk/100MHz
Optional	High frequency current probe: 30A/50MHz, 30A/100MHz , 150A/12MHz , 300A/6MHz 500A/5MHz
Optional	Screen Mask
