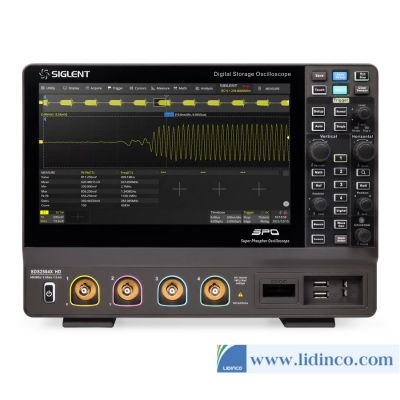

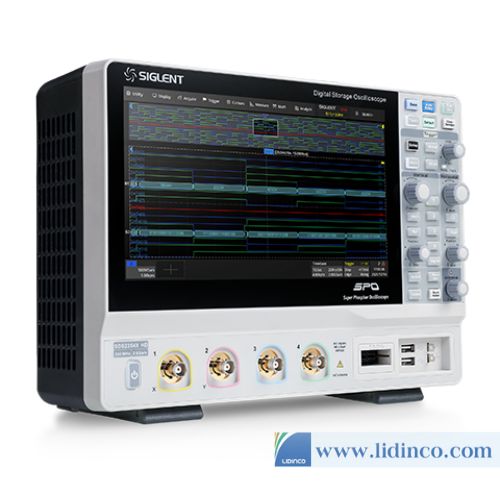

Digital Storage Oscilloscope Siglent SDS2104X HD
-
Bandwidth:
-
Channels:
-
Sampling Rate:
- Available: Please contact
- There are currently no promotions for this product
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: [email protected]
- Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: [email protected]
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
-
Technical Counseling
100% Free
-
Free Shipping
For 3.000.000vnd Order
Bandwidth: 100MHz
Number of channels: 4 channels
Sampling rate: 2 GSa/s
Wave Range: 500,000 wfm/s
Memory depth: 200 Mpts/ch
Digital Storage Oscilloscope
The SDS2000X HD features a 10.1-inch multi-touch screen with 1024x600 resolution, external mouse and keyboard operation. Capacitive touch screen, supporting multi-touch gestures, can move or scale the waveform traces quickly by finger-touch movements, which greatly improves the operation efficiency.
The SDS2000X HD also allows users to access and control the spectrum analyzer through a web browser which saves time, simplifies remote operation, and reduces the chance of mistakes.
Powerful Measurement Functions
The SDS2000X HD supports many parameter measurements, including 4 categories: horizontal, vertical, miscellaneous, and CH delay providing a total of 50+ different types of measurements. Measurements can be performed within a specified gate period. Measurements on Math, Reference, and History frames are supported.
Power Loop Response Analysis (Bode Plot)
Stability is a very important indicator in power supply design. In general, stability measurement requires a special frequency response analyzer, but it is very expensive. Siglent offers an affordable solution: the oscilloscope can control the built-in waveform generator or a stand-alone SIGLENT generator, to scan the amplitude and phase-frequency response of the DUT, and display the data as a Bode Plot. This makes it possible to replace expensive network analyzers in some applications
· Higher measurement sensitivity and accuracy
· Variable excitation scan mode allowed for complex test scenarios of the power control loop test box
· User-friendly UI design
· List and cursor measurements, more intuitive
