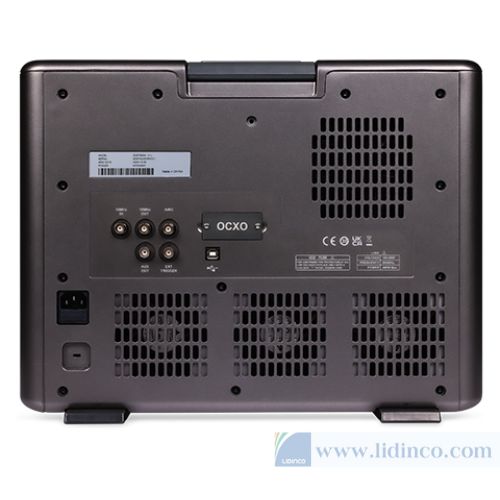

Digital Storage Oscilloscope Siglent SDS7404A 4 kênh

Restore the signal perfectly SDS7404A

The sampling rate of 20 GSa/s eliminates signal distortion. With a long storage depth of up to 1 Gpts/ch, capture complete signal sequences for up to 50 millisec at max sampling rate without any gaps. Utilize search and navigate or history tools to analyze the entire stored trace. Each sample utilizes the 12-bit ADC, limiting the quantization error, which can help engineers to observe the details of the waveform clearly and measure the waveform accurately.

All new high speed platform

The processor of SDS7000A has been fully upgraded. Utilizing an X86 processor greatly improves the response speed, measurement, operation and analysis speed of the system, and created more opportunities for future expansion of analysis functions.

Eye/Jitter analysis

As the core of signal integrity analysis of high-speed systems, eye diagrams characterize high speed communication signals. The quality of the system can be evaluated by observing the influence of inter-symbol crosstalk, noise, and bandwidth. Jitter analysis characterizes the statistical distribution of small timing changes in a systems and is often used to debug digital communication systems and high-speed signal transmission. The SDS7000A series supports automatic parameter measurements for jitter and eye characterization. Easy setup and automatic measurements speed debugging and simplify engineering design testing.

Protocol consistency analysis

With the SDS7000A, SIGLENT provides embedded compliance test solutions to evaluate systems versus communication standards including USB 2.0, 100base-TX, 1000base-T, 100base-T1 and 1000base-T1. Users can flexibly configure the test items, and the software can control the oscilloscope to automatically complete the test, and automatically give the signal test results (Pass/Fail) after comparing with the reference standards. This helps to identify and resolve critical signal and transmission issues quickly.

SAP5000D active differential probe（5GHz）

The SAP5000D is our highest performing active differential probe kit providing up to 5 GHz of bandwidth and low noise for detailed signal analysis. Its high input resistance and low input capacitance can ensure that the load introduced by the measurement system is minimized. SAP5000D active probe utilizes the SAPBus interface, making it suitable for oscilloscopes including the SDS5000X, SDS6000A and SDS7000A series. These probes do not need an additional external power supply and are automatically recognized by the oscilloscope.
