NEODEN T8L SMD Reflow Ove

NEODEN T8L SMD Reflow Ove

Model:
T8L
Origin:
China
Manufacturer:
Price: Contact
  • Conveyor Width:
  • Rated Power:
  • Available: Please contact
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: [email protected]
  • Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: [email protected]
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Data is being updated

Description

NEODEN T8L SMD Reflow Ove

neoden t8l benchtop reflow oven

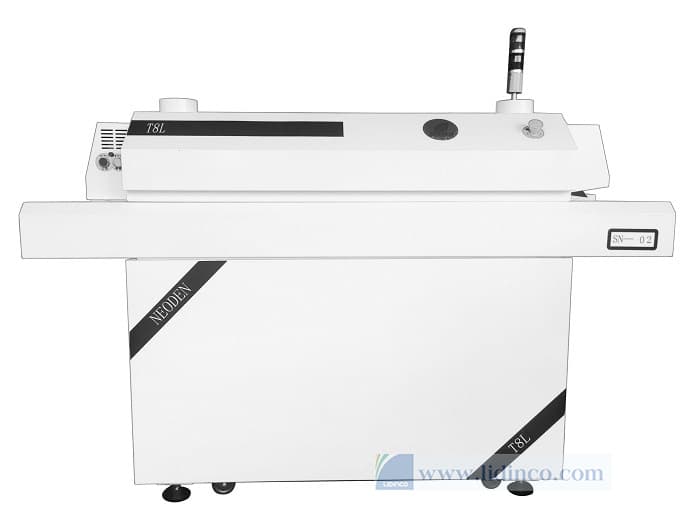

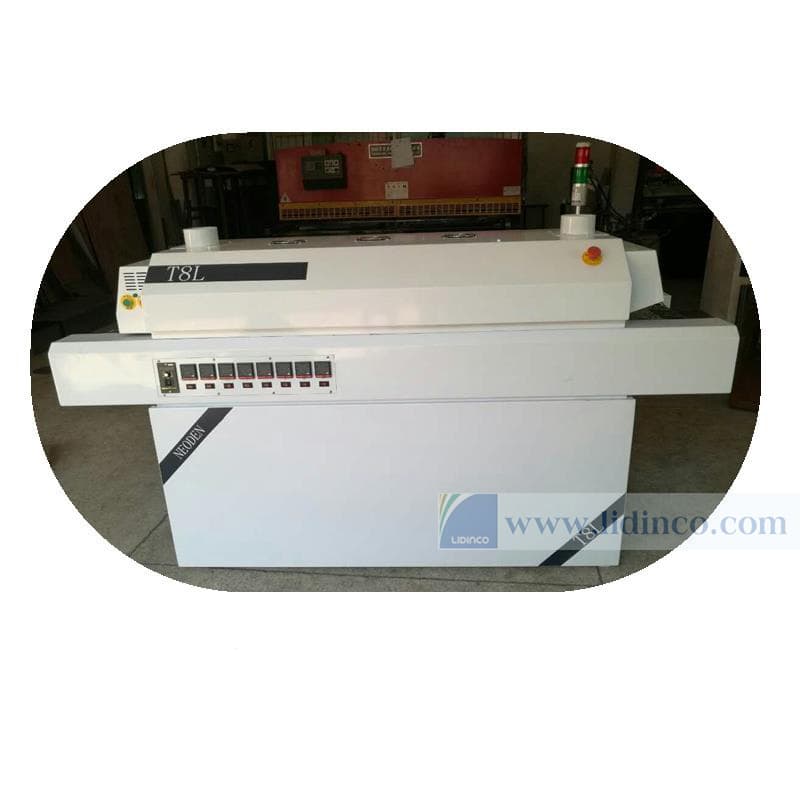

T8L Reflow Oven Hot Air SMD Soldering Machine – non-removable structure Reflow oven – worked with hot wind to welding PCB, support most normal components,LEDs and Chips.

Features:

  • The oven contains 8 heating zones, which provide precise temperatures at different stages of the soldering process. Heating and cooling times are optimized to ensure that PCBs benefit from industry-leading soldering techniques.
  • The height of the T8L table is adjustable, which simplifies the process of building a production line. It’s easy to add this machine to your collection of soldering devices, which can enhance your SMT production capabilities considerably.
  • The sturdy design of the oven ensures that it can fit securely into a larger operation.
  • The internal conveyor belt can be automated to provide optimal speed with a max conveyor speed of 1200mm/min. Users can read signal lights on the external façade of the machine, which simplifies the process of tracking the machine’s internal temperature.
  • The T8L Reflow Oven can use a single-phase 220V power supply or a three-phase 380V power supply.
  • In an emergency, the machine contains an emergency shut-down button that prevents further issues.

Specifications:

Products

T8L Reflow Oven Hot Air SMD Soldering Machine
Length*Width*Height    (mm)2100*700*1280
Peak Power(KW)12
Working Power(KW)5
Input Voltage(V)220/380
Conveyor Width(mm)300
Standard Max Height (mm)20
Customized Max height(mm)55
Max Speed of Conveyor (mm)1200
Packing Size220*80*128CM
Gross Weight

300KG
