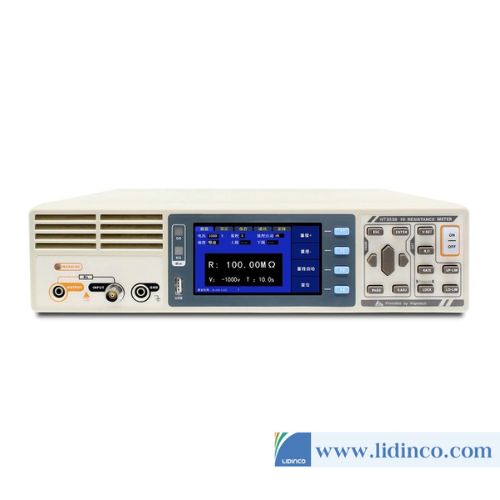

High Insulation Tester Hopetech HT3530

Description

• HT3530 is an intelligent measurement instrument with high performance ARM micro processor control design. It is ideal for different ranges of various electrical, electronic parts, and electronic equipment testing.

• One-in-four professional instrument that integrates insulation resistance meter, Picometer, digital potentiometer and digital high voltage source meter

• Six measurement ranges.

• 0.001V~1000V arbitrary voltage output under 1V resolution meets any test voltage requirements and can test resistance ranges 500Ω~9.9PΩ,with max display of 99999 digits.

• Equipped with test electrode can test the volume resistivity and surface resistivity of the material

• HT3530 can accurately draw curve V-I/V-R curve

• Equipped with discharging function

• Supper-high speed testing provides the best solution for automated production. The instrument has a sorting and beeper function

• Equipped with Handler and RS232 interfaces fit for the automatic sorting system to complete the automatic pipeline test.

• Calibration function, open-circuit clearing at full measurement ranges.

• 4.3-inch TFT true color LCD display

Application

HT3530 Insulation Tester is used to measure the insulation resistance and leakage current of various electronic components, equipment, dielectric materials, wires and cables; Supporting electrode box can test the surface resistance and volume resistivity of materials.
