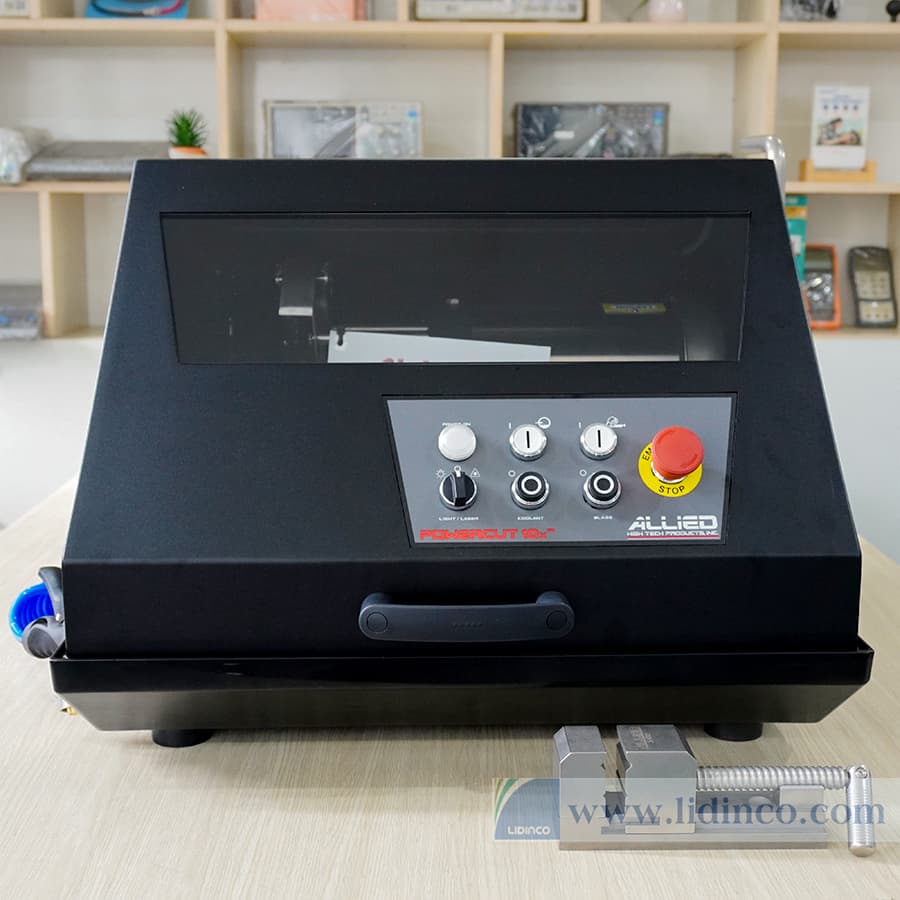

Allied High Tech PowerCut 10X™ Manual Bench-top Cut-off Saw

Description

The PowerCut 10x™ is a powerful, manual bench-top cut-off saw designed for low to high volume applications. It accommodates blades ranging from 8" to 10" in diameter, allowing a wide variety of sample shapes and sizes up to 3.75" (95 mm) thick to be sectioned. A side port allows the cutting of longer samples such as bar stock. The PowerCut 10x™ has been redesigned with updated features such as an external wash-down hose & nozzle; blade guard with improved coolant manifold; improved drain flow through a larger opening; torsion-style motor return spring; new LED lighting and a taller cover with improved edge profile to keep water/coolant from dripping out.

Features

10-inch (254 mm) diameter blade capacity
Accepts blades with either 1.25" or 32 mm arbor hole
Powerful 3.5 HP (2600 W) stainless steel waterproof motor, 3,450 RPM
Cutting capacity: up to 3.75" (95 mm) bar stock
5" (127 mm) distance between blade and motor allowing longer/larger parts to be sectioned

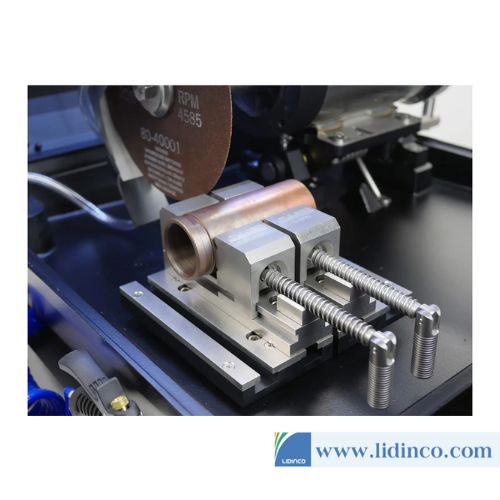

Optional 5-4005 Quick-Slide stainless steel vise with 3.45" (87 mm) capacity
Two (2) T-slot tables allow front-to-back and side-to-side vise/clamp positioning
Optional 5-4050 Vertical Adjusting Clamp available for odd-shaped samples
Large shatterproof viewing window
Sturdy cast aluminum base
LED Illuminated interior
Electronic brake to stop blade at end of operation
Counterbalanced, corrosion-proof stainless steel motor with direct drive
Emergency shut-off switch
Corrosion and impact resistant cover
CE compliant for EU
Side port for cutting long samples
Safety switch to stop blade when cover is lifted
Dimensions: 32" W x 32" D x 27.5" H (813 x 813 x 699 mm)
Weight: 168 lb. (76 kg)
Two (2) year warranty
Designed & manufactured by Allied in the USA
