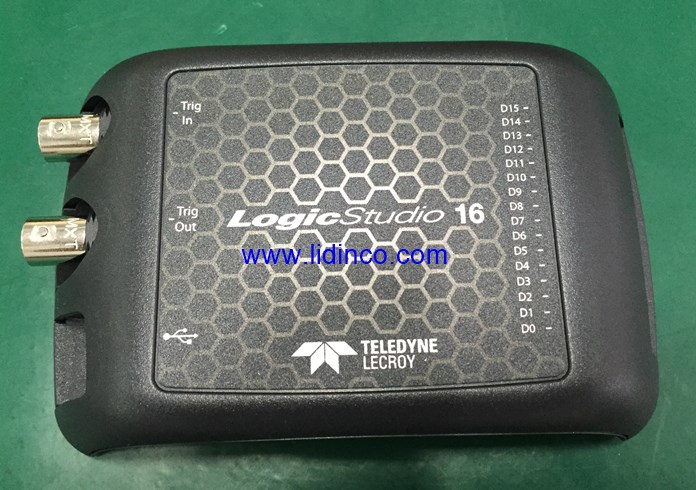

LogicStudio 16, 16 Channel, 500 MS/s, 100 MHz USB Logic Analyzer

Máy phân tích logic LogicStudio 16 từ Teledyne LeCroy cho kết quả nhanh chóng bởi khả năng xử lý hiệu quả của phần cứng, xem trực quan và phù hợp với nhiều người dùng.

LogicStudio

Logic analyzers are known to be slow, complicated and expensive but LogicStudio changes all this by delivering a powerful feature set, high performance hardware and an intuitive point and click user-interface.

With I²C, SPI and UART Trigger and Decoding

LogicStudio is fast! Waveforms update quickly and panning or zooming is extremely responsive. Download the software and experience it yourself. Download

The software interface is modern and intuitive creating a new logic analyzer experience.

LogicStudio is intuitive and easy to operate with friendly left-click and right-click controls plus all buttons are on the main screen, no complicated menus to navigate.

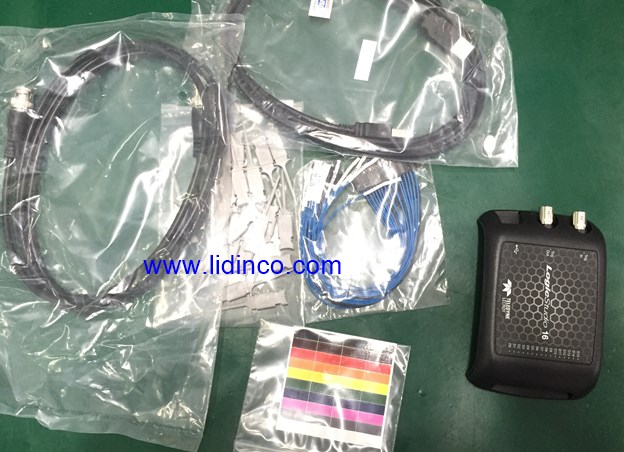

LogicStudio is compatible with 10 popular oscilloscopes series from Teledyne LeCroy, Tektronix and Agilent covering bandwidths from 40 MHz up to 1 GHz. Connecting the instruments is easy with the included USB and BNC cables, make the connections and let the software establish the link and begin displaying waveforms.

View decoded protocol information for I2C, SPI and UART busses plus trigger on data being transmitted on the serial busses.

Quickly measure the time between transitions on a single line, across digital lines or from a digital line to an analog waveform. Snap the cursors directly to the waveform edge for precise measurements.

Get a better view of the waveforms by passing over them with the magnifier, scroll the mouse wheel to zoom in for an even closer look.

Did something interesting or surprising just flash across the screen, stop the trigger and flip through a history of the previous 100 acquisitions.

For difficult problems a simple edge or logic level trigger is not enough. LogicStudio advanced triggering provides an environment for creating powerful combinations of edge, logic level, parallel bus and serial bus triggers to isolate difficult problems.

View variations in the signals over time to find problems faster. Use with History mode to see what happened when and isolate the problem.

Use all 16 channels at 500 MS/s or 8 channels at 1 GS/s for more timing resolution

Choose from standard TTL and CMOS levels or create a custom level from 0 – 7 V

Oscilloscope trigger modes of Auto, Normal and Single help ensure what you need to see is always on the display.

Save screenshots to share with others or save waveforms and setups for recalling later.

One click to add a new waveform, one click to remove it, right-click to hide it.

Double click a channel to enter a custom name or click the Signals button to change the color or signal to display

View waveforms stacked on top of each other or enable Freeform display to overlay one waveform on top of another .

Not sure how to use a certain tool, mouse over for tool tips or access the manual from the Help menu.
