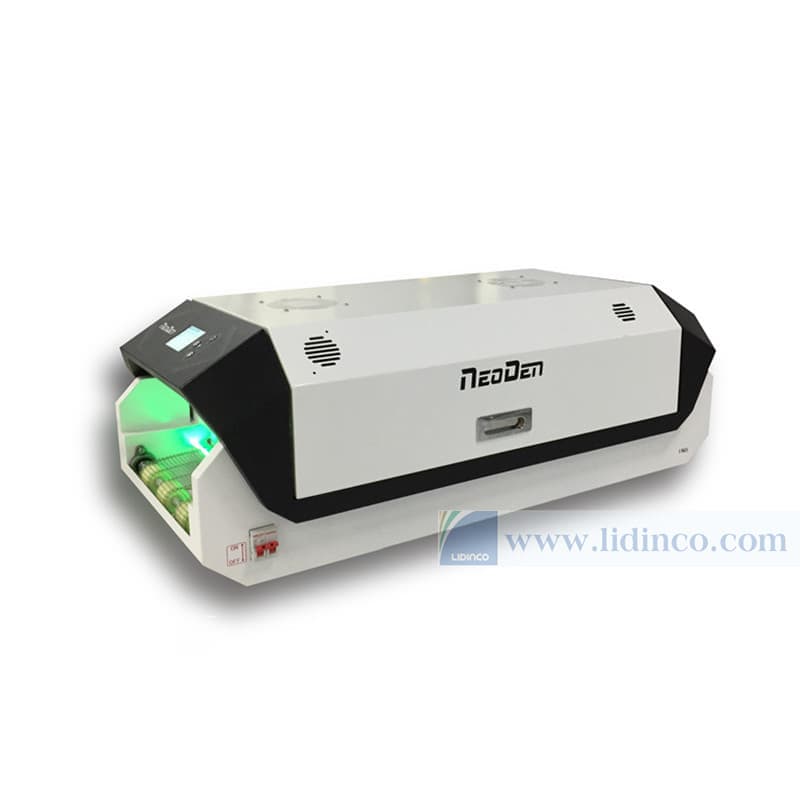

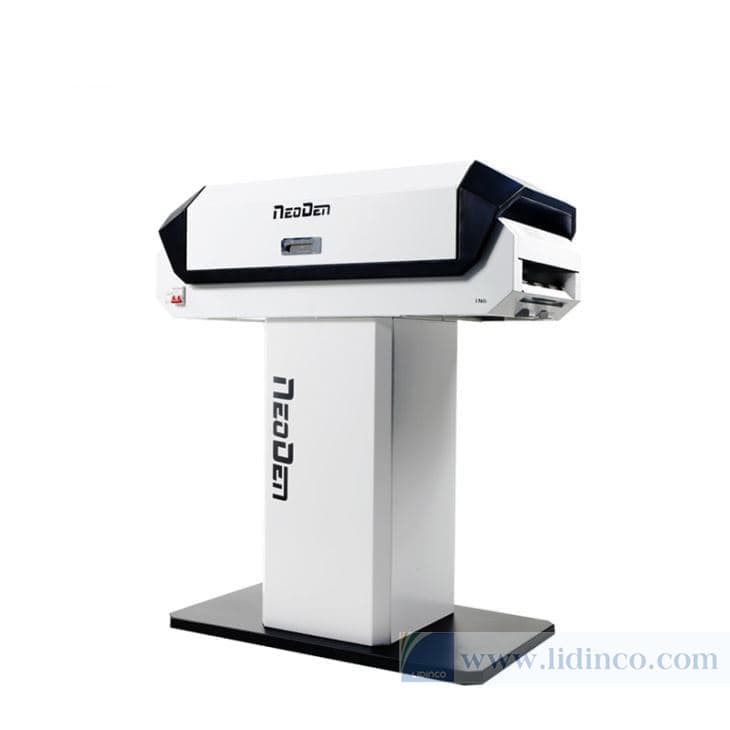

NEODEN IN6 Reflow Oven

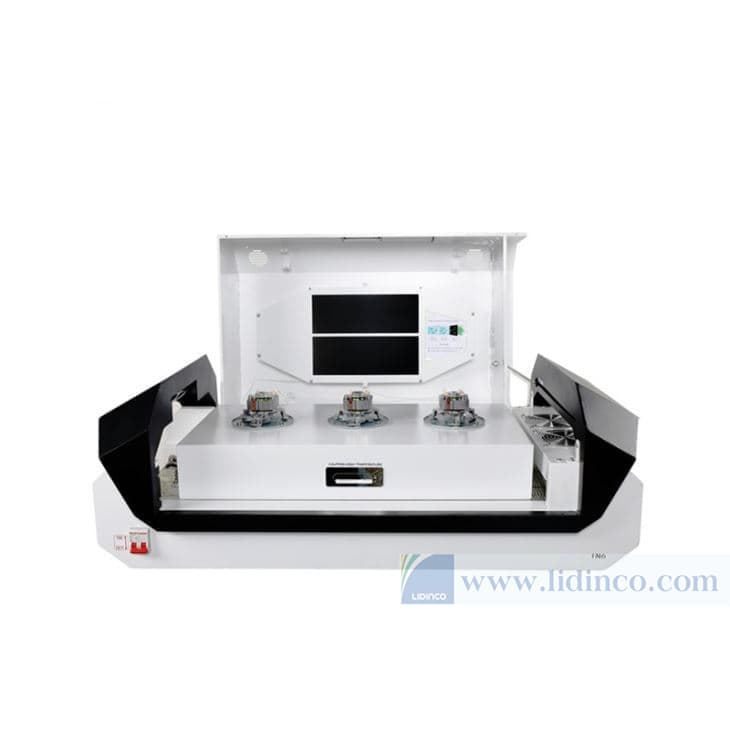

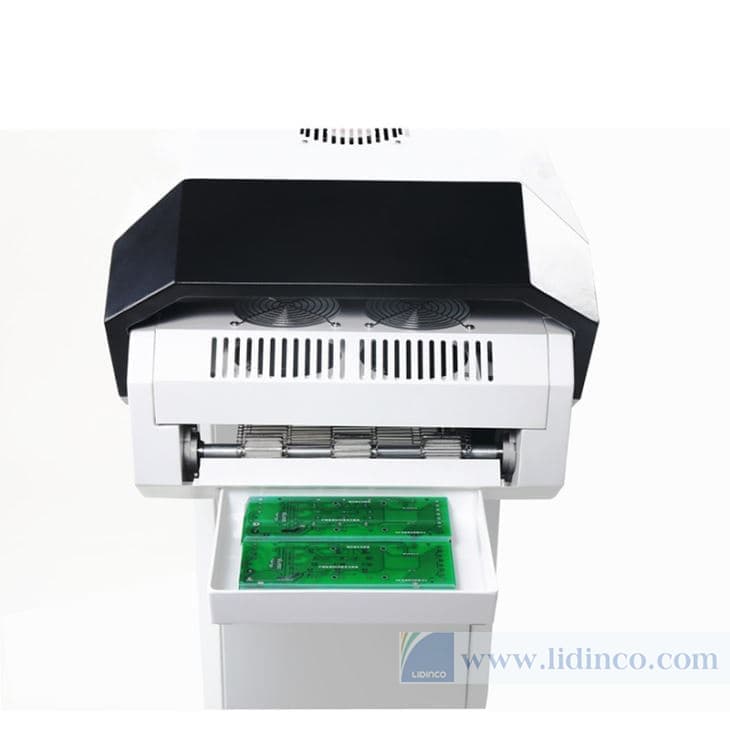

NeoDen IN6, a desktop reflow oven, using new technology of dynamic warming-up control system to ensure stable temperature. With a no tubular heater, the whole heating chamber is uniformly heated, and built with all-aluminium alloy material. IN6 has built-in soldering smoke filtering system, which do not need traditional smoke tube any more. IN6 solders PCB in full convection way which could make sure the components heated evenly and it supports most normal components, LED and kinds of IC
Features:
- Full heat convection, excellent soldering performance.
- 16 working files can be stored, flexibly convert from Celsius to Fahrenheit, easy to understand
- Smart control with the high sensitivity temperature sensor, the temperature can be stabilized within + 0.2℃.

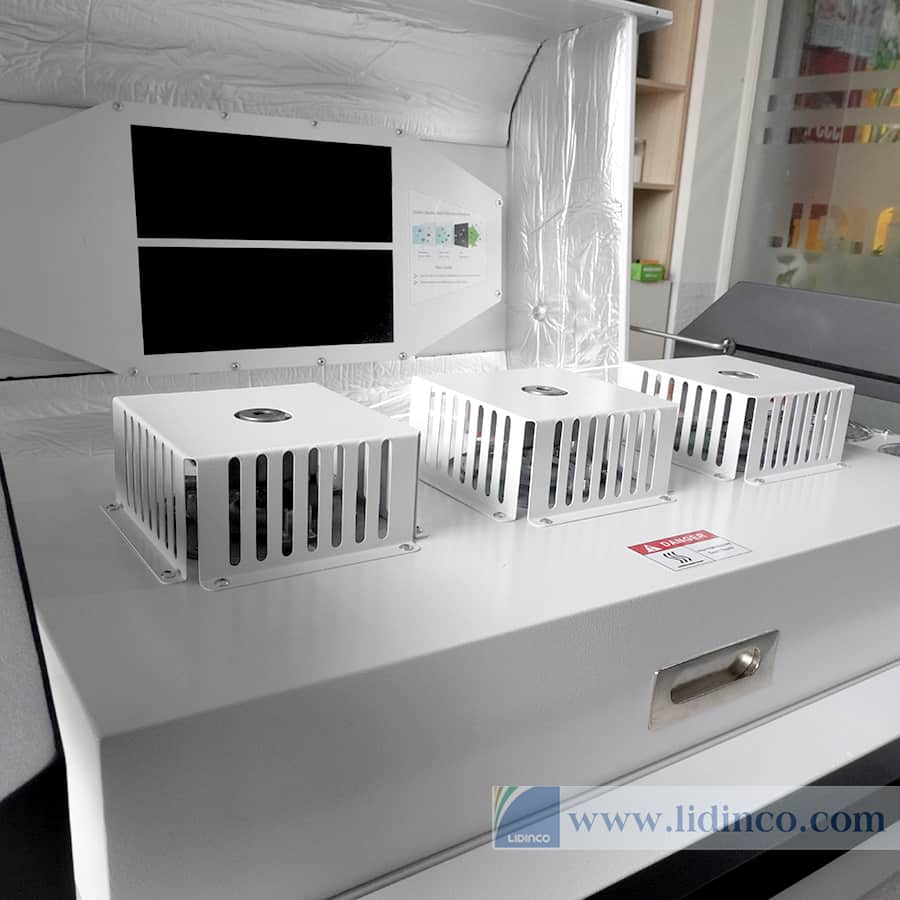

- Built-in welding smoke filtering system, elegant appearance and eco-friendly.
- High-performance aluminum alloy heating plate instead of heating pipe, both energy-saving and high-efficient, and transverse temperature deviation is less than 2℃.
Specifications:
Model | NEODEN IN6 PCB Reflow Oven |
Power | 110/220VAC 1-phase |
Peak Power | 200W |
Heating Zone | Upper3/down3 |
Cooling zone | 1 |
Conveyor speed | 15-60 cm/min (6-23 inch/min) |
Standard max height | 30mm |
Operation direction | left to right |
Temperature | Room temperature ~ 300°C |
Temperature control accuracy | ±0.5°C |
PCB temperature distribution deviation | ±1°C |
Soldering width | 260 mm (10 inch) |
Length process chamber | 680 mm (26.8 inch) |
Heat-up time | approx. 15 min. |
Dimensions | 1020*507*350 mm |
Packing size | 1120*620*551 mm |
Net weight | 49 kg |
Gross weight | 57 kg |
