Oscillscope Siglent SDS2204X 200MHz 4 Channel
Hotline: +84 906 988 447
Head Office: Ho Chi Minh City
- Tel: +84 2839 778 269 / 3601 6797
- Email: sales@lidinco.com
- Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam
Office: Bac Ninh City
- Tel: +84 222 730 0180
- Email: bn@lidinco.com
- Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam
-
Technical Counseling 100% Free
-
Free Shipping For 3.000.000vnd Order
Bandwidth: 200 Mhz
Rise time @50Ω: 1.7 ns
Number of channels: 4 CH + EXT
Digital Channel (Option): 16 channels, with 500 MSa/s sampling rate, 50 Mpts/channel wave length
Maximum sampling rate: 2 GS/s
Wave Record Length: 50 Mpts/channel
Wave update rate: 500,000 wfm/s
Trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Video, Zone
Serial Trigger and Decode: – Standard: I2C, SPI, UART/RS232, CAN, LIN
– Option: CAN FD, FlexRay, I2S, MIL-STD-1553B

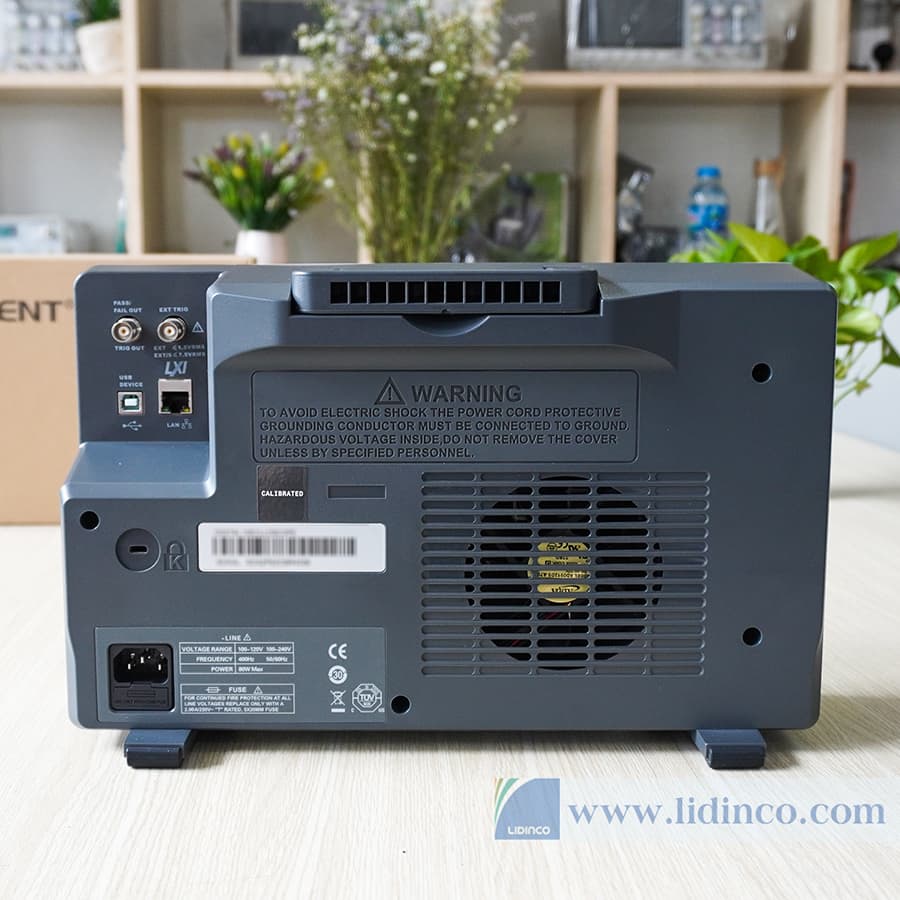

Input/Output: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 10MHz Out, VGA Output
Math function: – 2 traces
– 2 Mpts FFT, +, -, x, /, d/dt, dt, , average, ERES and formula editing
Data processing and analysis: Search, navigation, history, mask test, Bode plot, energy analysis (optional) and counting
Test leads (Standard):– SP2035A, 350 MHz, 1 test probe per channel
– PP215 200MHz, 1 probe per channel
Display: 10.1" TFT-LCD multi-touch screen (1024*600)
Weight: Four-channel line: 2.6 kg; Transport 3.8 kg / Dual channel : 2.5 kg; Shipping: 3.5 kg
Description
SIGLENT’s SDS2000X Plus series Digital Storage Oscilloscopes are available in bandwidths of 350 MHz, 200 MHz and 100 MHz, have a maximum sample rate of 2 GSa/s, maximum record length of 200 Mpts/ch, and up to 4 analog channels + 16 digital channels mixed-signal analysis ability.
The SDS2000X Plus series employs SIGLENT’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. An impressive array of measurement and math capabilities and options for a 50 MHz waveform generator.
The large 10.1’’ capacitive touch screen supports multi-touch gestures, while the remote web control, mouse and external keyboard support greatly improve the operating efficiency of the SDS2000X Plus.
Key Features
- 350 MHz, 200 MHz, 100 MHz models with real-time sample rate up to 2 GSa/s. A 500 MHz bandwidth upgrade option is available for 350 MHz models.
- SPO technology
+ Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode)
+ Supports 256-level intensity grading and color temperature display modes
+ Record length up to 200 Mpts/ch, 400 Mpts in total for all 4 channels
+ Digital trigger system
- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported). Trigger zone helps to simplify advanced triggering
- Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, I2S, and MIL-STD-1553B (optional) protocols
- Low background noise, features 0.5 mV/div to 10 V/div voltage scales
- 10-bit mode provides higher resolution and lower noise
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
- History waveform record (History) function for up to 90,000 triggered waveforms (frames)
- Automatic measurement function on 50+ parameters, supports statistics with histogram and trend
- Two Math traces, support 2 Mpts FFT, +, -, x, ÷, d/dt, ∫dt, √, average, ERES, and formula editor
- Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter
- 16 digital channels (optional)
- Built-in 50 MHz waveform generator (optional)

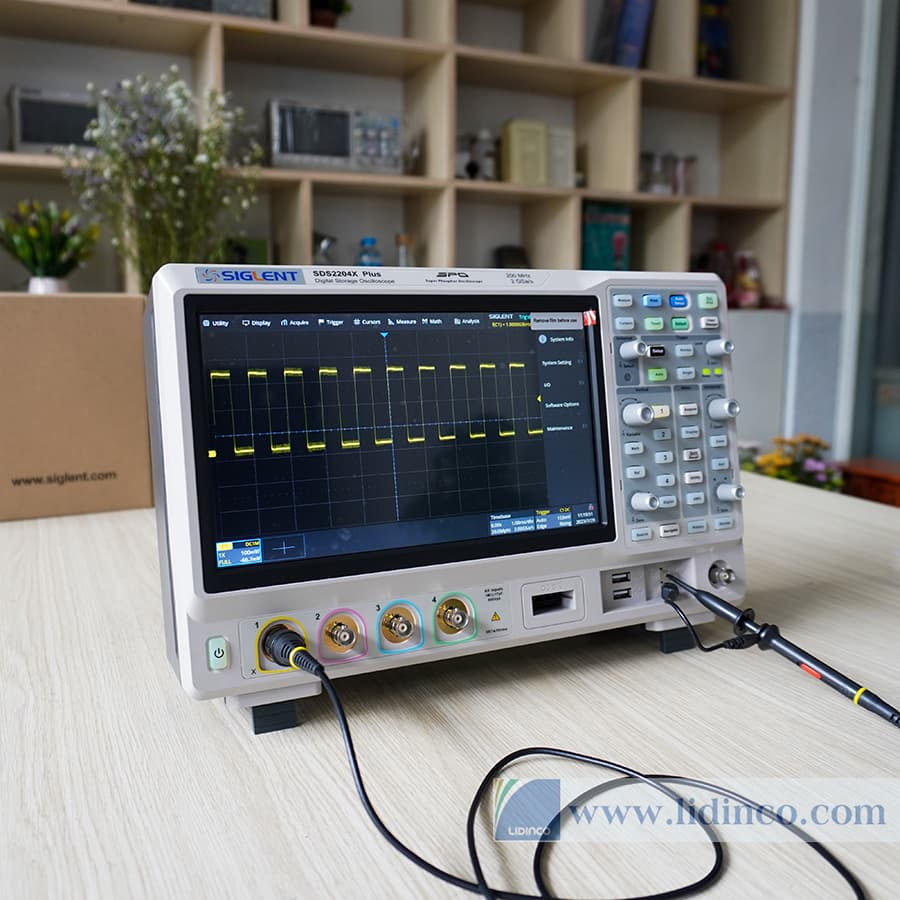

- Large 10.1” TFT-LCD display with 1024×600 resolution; Capacitive touch screen supports multi-touch gestures
- Multiple interfaces: USB Host, USB Device (USBTMC), LAN(VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
- Built-in web server supports remote control by the LAN port using a web browser; Supports SCPI remote control commands
Accessories
- USB Cable
- Passive Probe
- Power Cord
- Quick Start Guide
