Specification

Measurement parameters: Volume resistance/resistivity, surface resistance/resistivity

Applicable test voltage: Maximum 1000V

Applicable test current: Maximum 20mA

Applicable instruments: TH2690/TH2690A/TH2690H

Interlock circuit: Equipped

Operating temperature: $-30$ $\circ$ $C$ to $100$ $\circ$ $C$ (Connector: $0$ $\circ$ $C$ to $55$ $\circ$ $C$ )

Operating humidity: $\leq$ $70%$ RH ( $@$ $40$ $\circ$ $C$ )

Storage temperature: $-40$ $\circ$ $C$ to $70$ $\circ$ $C$

Storage humidity: $\leq$ $95%$ RH ( $@$ $40$ $\circ$ $C$ )

Cable length: 1.2m

Weight: 7kg

Description product
Accessories

Introduction

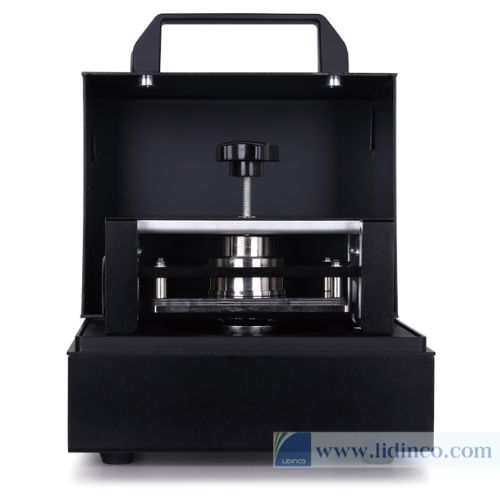

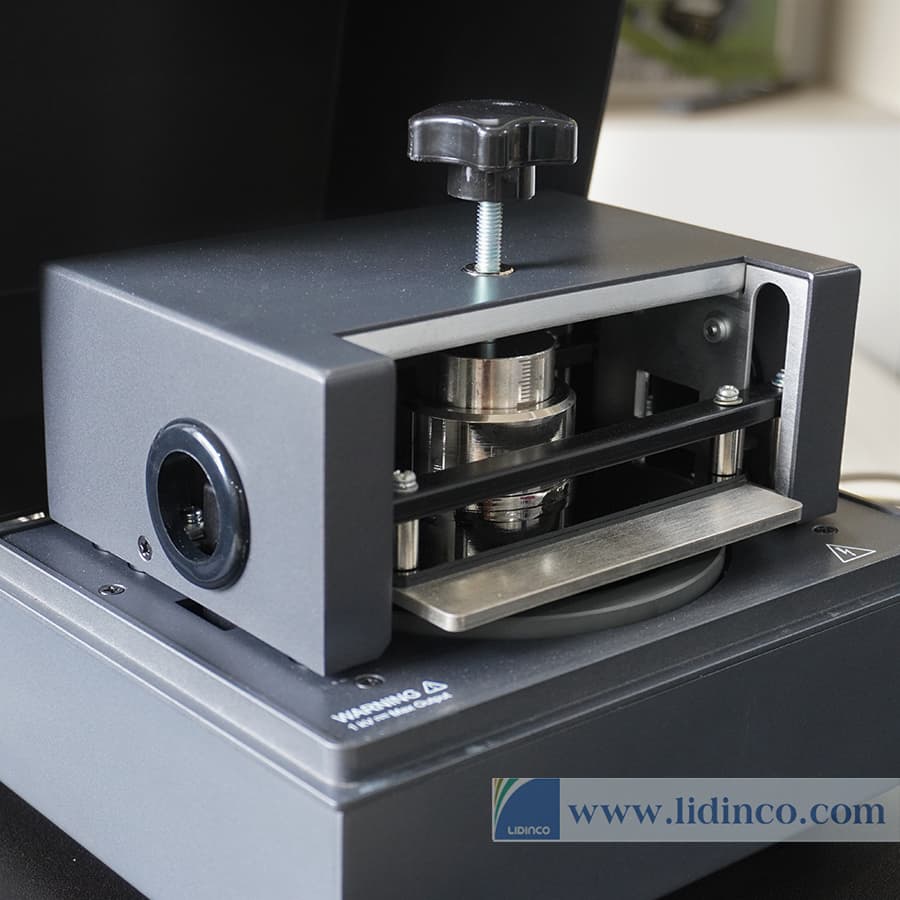

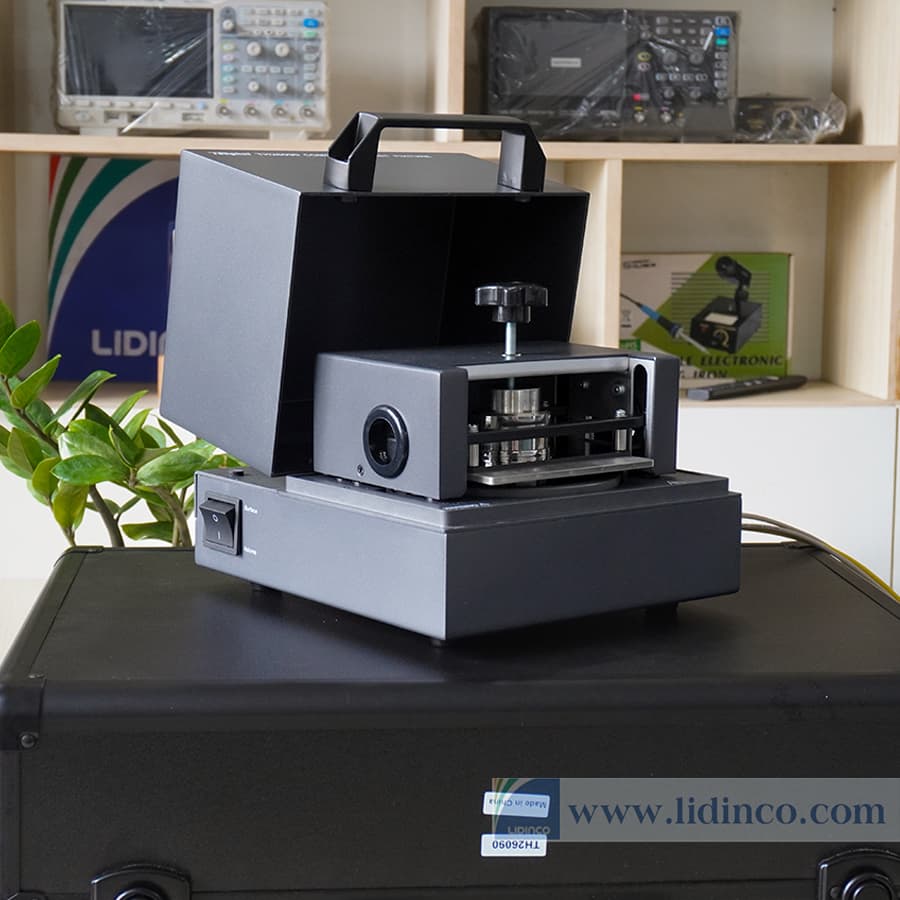

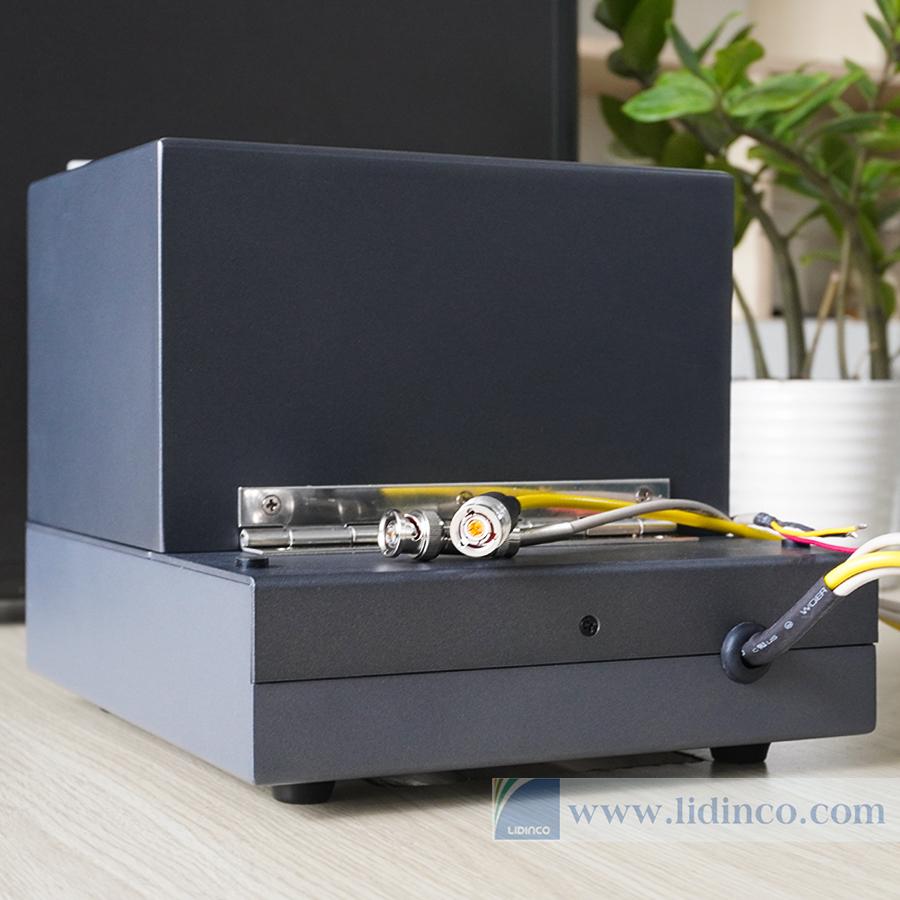

The TH26090 is an accessory for the TH2690 electrometer/high resistance meter/femtoammeter/picoammeter, used to measure the volume or surface resistance/resistivity of insulating materials. The TH26090 has the following features:

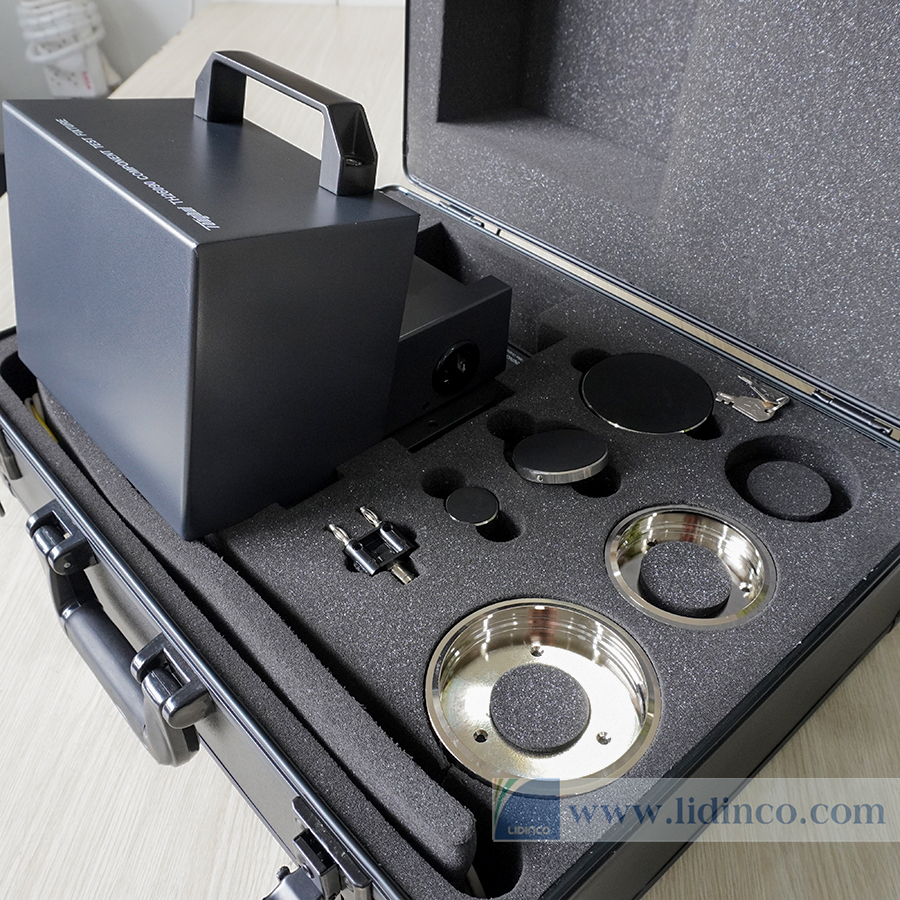

1. Electrode size optional; three different sizes of electrodes to meet your DUT size requirements and meet the electrode size requirements of different standards.

2. Can be used in environments of 30℃~100℃.

3. Any contact pressure can be applied to the DUT.

4. Applicable test voltage: 1000V.

5. Applicable test current: 10mA.
