Miniature Triaxial Accelerometer PCB Piezotronics 356A01 5mV/g

Description

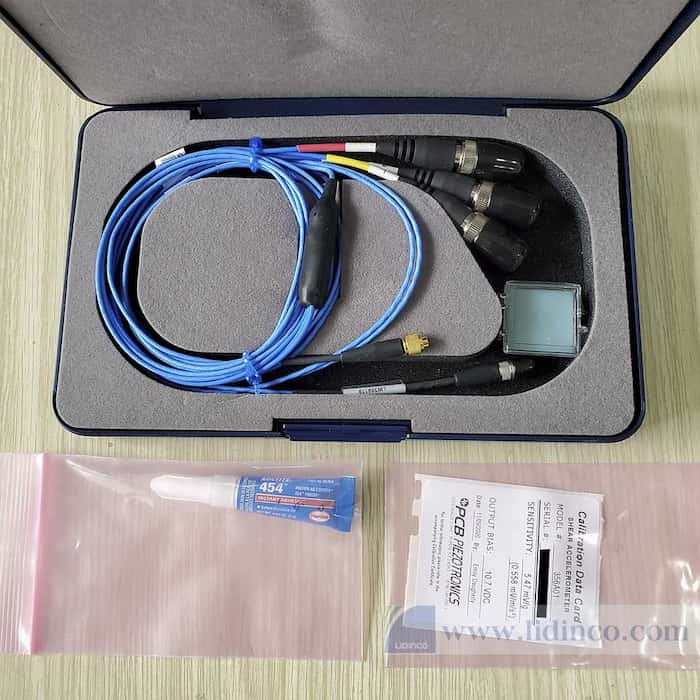

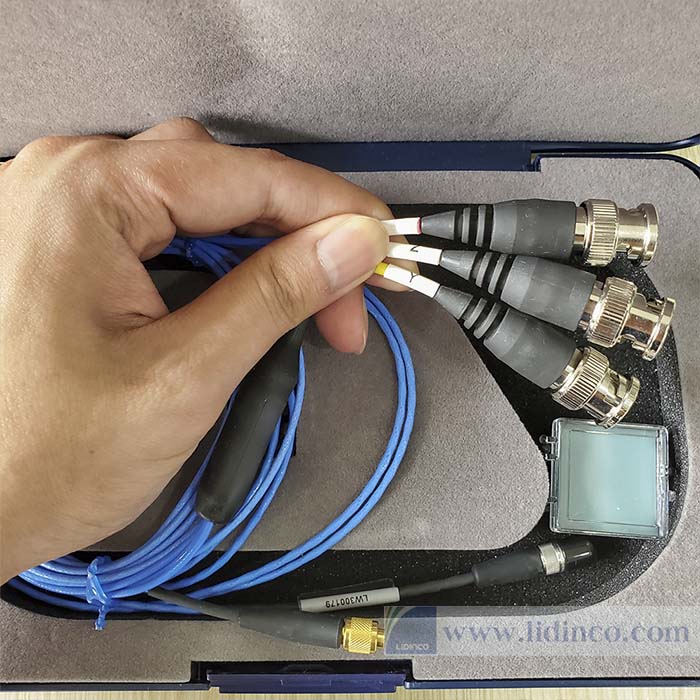

Models 356A01 and 356A03 provide 5 mV/g and 10 mV/g with 1000 g and 500 g full scale range respectively for general testing. They include a lower noise floor and higher shock limit than competitive offerings with hermetic sealed titanium housings. Their integral cable includes a rugged strain relief in addition to a robust crimp tube that provides excellent shear resistance and high tensile strength. When applications have potential for ground loop noise, models HTJ356B01 and J356A03 are available with integral ground isolation. Isolation is accomplished with the addition of an external titanium shell adhered to the three mounting surfaces via high temperature, electrically non-conductive epoxy. HTJ356B01 is also suitable for higher temperature applications up to 356 ◦ F (180 ◦ C). All of these models are compatible with any ICP® signal conditioner or readout device that includes ICP® power but note of current limitations at elevated temperatures. This product is CE marked for sale globall

Typical Applications

• Small component qualification
• Structural vibration
•  Environmental Stress Screening
• Noise Vibration & Harshness
• Vibration measurements with space restrictions
