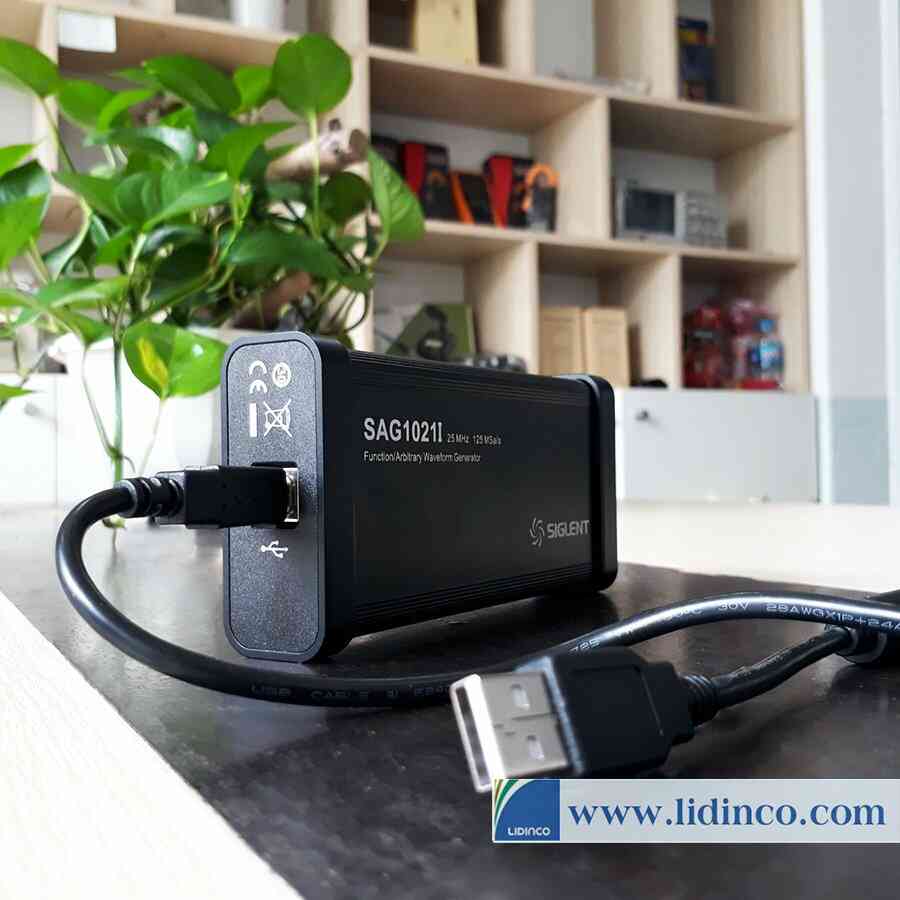

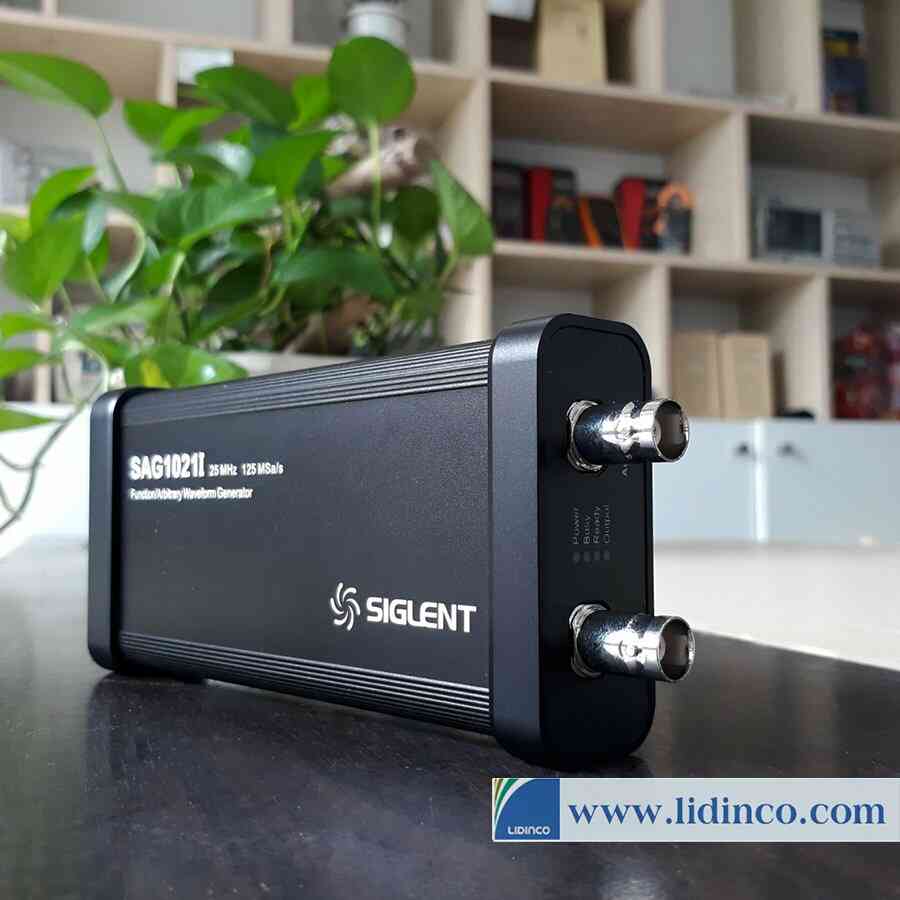

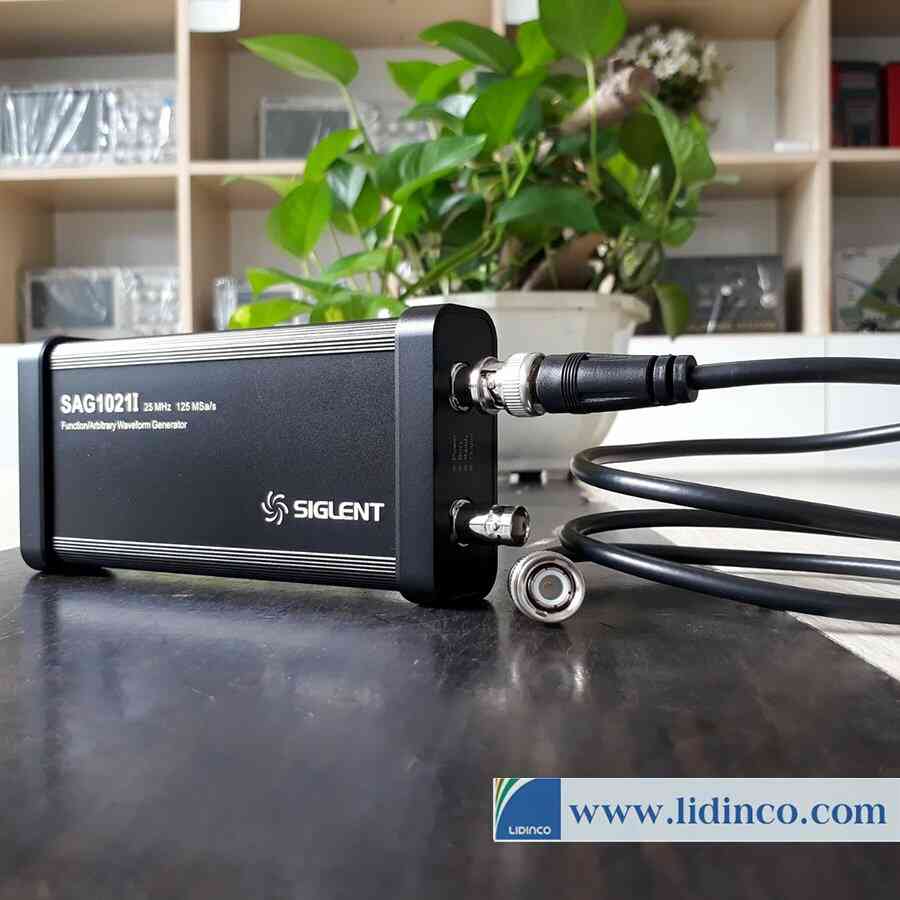

External Arbitrary Waveform Generator Siglent SAG1021I

External Arbitrary Waveform Generator Siglent SAG1021I

Model:
SAG1021I
Origin:
China
Manufacturer:
Price: Contact
  • Available: Please contact
  • There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

  • Tel: +84 2839 778 269 / 3601 6797
  • Email: [email protected]
  • Add: 487 Cong Hoa Street, Tan Binh Ward, Ho Chi Minh City, Vietnam

Office: Bac Ninh City

  • Tel: +84 222 730 0180
  • Email: [email protected]
  • Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh, Vietnam
  • Counseling Technical Counseling 100% Free
  • Shipping Free Shipping For 3.000.000vnd Order
Specification

Outputs: 1

Max. Output Frequency: 25 MHz

Sampling Rate: 125 MSa/s

Frequency Resolution: 1 μHz

Frequency Accuracy: ±50 ppm

Vertical Resolution: 14-bit

Amplitude Range: 1.5 ~ +1.5 V (50Ω load), -3 ~ +3 V (High-Z load)

Waveform Types: Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms

Output impedance: 50 Ω±2%

Protection: Over-Voltage Protection, Current-Limiting Protection

Insulation Voltage: ±42 Vpk (for SAG2021I only)

Description

Accessory for use with the four-channel SDS1000X-E, SDS2000X-E, SDS5000X, and SDS6000A oscilloscopes. Output Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms. The arbitrary waveforms can be accessed and edited by the EasyWave PC software.

Requires the correct Function Generator Activation License for the specific oscilloscope (part number ends with -FG)

Specifications

- Outputs: 1
- Max. Output Frequency: 25 MHz
- Sampling Rate: 125 MSa/s
- Frequency Resolution: 1 μHz
- Frequency Accuracy: ±50 ppm
- Vertical Resolution: 14-bit
- Amplitude Range: 1.5 ~ +1.5 V (50Ω load), -3 ~ +3 V (High-Z load)
- Waveform Types: Sine, Square, Ramp, Pulse, Noise, DC and 45 built-in waveforms
- Output impedance: 50 Ω±2%
- Protection: Over-Voltage Protection, Current-Limiting Protection
- Insulation Voltage: ±42 Vpk (for SAG2021I only)
