Autoranging Dual Output Power Supply Keysight E36234A 400W

Name: Autoranging Dual Output Power Supply Keysight E36234A 400W
Brand: Keysight
SKU: E36234A
Price: 0VND VND
Availability: InStock
Rating: 0.00 (0 reviews)

SKU:

E36234A

0 ratings

Brand:

Keysight

Warranty:

N/A

Price: Contact

Please contact to check stock

Request a quote

There are currently no promotions for this product

Hotline: +84 906 988 447

Head Office: Ho Chi Minh City

Tel: +84 2839 778 269 / 3601 6797
Email: sales@lidinco.com
Add: 487 Cong Hoa Street, Ward 15, Tan Binh Dist, HCM City, Vietnam

Office: Bac Ninh City

Tel: +84 222 730 0180
Email: bn@lidinco.com
Add: 184 Binh Than Street, Vo Cuong Ward, Bac Ninh City, Vietnam

Technical Counseling 100% Free
Free Shipping For 3.000.000vnd Order

Specification

Data is being updated

Description product
Accessories

Description

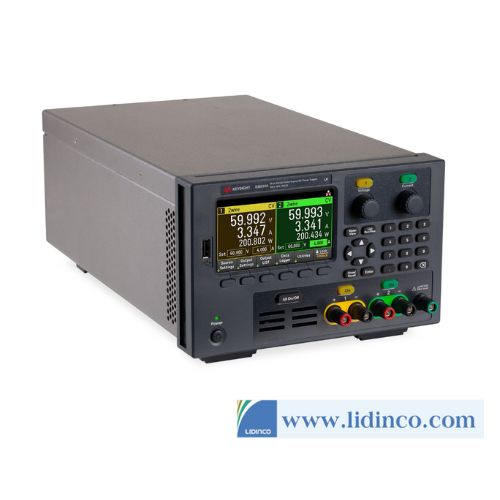

Autoranging Dual Output Power Supply Keysight E36234A 400W

The E36200 series consists of two 200 W single output power supplies and two 400 W dual output power supplies. Autoranging technology provides the highest current available at all output voltage. Power devices with up to 40 A (E36233A) or voltage up to 120 V (E36234A) using auto-parallel or auto-series to internally connect the two outputs into a single output with twice the power. A single output supply can power devices requiring up to 200 W. A dual output supply provides two independent 200 W channels which can be combined into a single 400 W channel.

E36234A provides more useable power with autoranging architecture, dual output in a bench friendly design with full programmability; LAN, USB and GPIB interface.

Feature

Clean, reliable power:
• Low output ripple and noise
• Excellent programming/readback accuracy
• Excellent line/load regulation
• 2-wire or 4-wire remote sense
• Over voltage, over current, and over temperature protection

Convenient benchtop capabilities:
• Thermal-control fan speed for lower acoustic noise
• Auto series/parallel connections
• Front and rear output terminal

Intuitive and easy-to-use interfaces:
• 4.3-inch LCD color display
• Color coded channels
• Individual knobs for voltage and current
• E3633A and E3634A code compatible
• LAN (LXI), USB and GPIB (optional)

Advance characterization:
• Data logging
• Output sequencing
• LIST mode
• Low range current measurement
• Adjustable voltage slew rate
