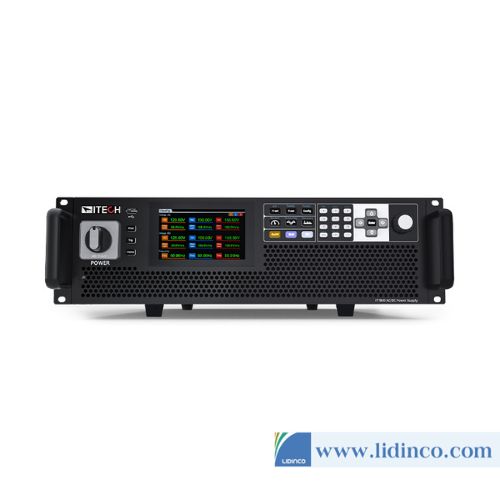

High Power Programmable AC/DC Power Supply Itech IT7800

Description

Adopting advanced SiC technology，ITECH IT7800 3U high series of programmable AC/DC power supply, with power up to 15kVA, voltage ranges up to 350V L-N. Users are able to increase output power up to 960kVA by configuring master-slave parallel. With intuitive LCD touch panel interface, users can be quickly familiar with the unit operation. IT7800 series is built-in power meter and arbitrary waveform generator, which is able to simulate harmonics and other arbitrary waveform output. Users can choose single phase, three-phase, reverse phase, and multi-channel totally 4 output modes, with programmable output, and complete measurements, ITECH IT7800 series is designed for new energy, power electronics, research institutes etc.

Feature

• Adopt advanced SiC technology

• High power density, 3U up to 15kVA

• Master-slave parallel with current sharing technology, up to 960kVA, multiple units in parallel work as one

• Voltage up to 350V L-N

• Output frequency: 16-2400Hz, programmable slew rate setting for changing voltage and frequency

• Built-in single/3-phase AC power meter

• Multi-channel function, single unit can connect/test up to 3 DUTs*2

• 4 output modes: AC/DC/AC+DC/DC+AC

• Choose single phase, three-phase, reverse phase output mode, to simulate 3-phase imbalance, 3-phase harmonics imbalance, 3-phase split phase test, reverse phase sequence tests for 3-phase models and etc.*3

• Comprehensive harmonics measurement and analysis, up to 50th*4

• Harmonics, inter-harmonics waveform synthesizer

• Programmable output impedance

• Intuitive touch screen interface

• Simulate arbitrary waveform output, support csv. file import

• High current crest factor, suitable for inrush current testing*5

• Built-in various waveforms

• List mode simulates the power supply reproduction function to realize the simulation function of instantaneous power interruption

• Provide rich trigger configuration, synchronously capture the voltage waveform of DUT, collect and simulate data.

• Output 0-360 ° start/stop phase angle can be set

• Surge/Sag function

• Relay CTRL function, to cut off the connection between instrument and DUT 6-phase, 12-phase power output

• Built-in USB/CAN/LAN/Digital IO interface, optional GPIB /

• Analog&RS232

• Completion of civil avionics/electric ships and IEC testingby optional software*1
