Nguồn xoay chiều (AC) một pha 0 ~270VAC, Behlman BL4500

Nguồn xoay chiều (AC) một pha 0 ~270VAC, Behlman BL4500

Mã:
BL4500
Thương hiệu:
Bảo hành:
N/A
Giá: Liên hệ
  • Phân loại nguồn AC:
  • Công suất nguồn AC:
  • Dòng điện AC đầu ra:
  • Điện áp AC đầu ra:
  • Vui lòng liên hệ để kiểm tra tình trạng kho
  • Tạm thời chưa có khuyến mãi cho sản phẩm này

Hotline: 0906.988.447

Liên hệ: Hồ Chí Minh

  • Điện thoại: (028).3977.8269
  • Email: sales@lidinco.com
  • Địa chỉ: 487 Cộng Hòa, Phường 15, Quận Tân Bình, TP. HCM

Liên hệ: Bắc Ninh, Hà Nội

  • Điện thoại: (0222).730.0180
  • Email: bn@lidinco.com
  • Địa chỉ: 184 Bình Than, Phường Võ Cường, TP. Bắc Ninh
  • Tư vấn Tư vấn kĩ thuật Miễn phí
  • Giao hàng Miễn phí vận chuyển Đơn hàng trên 3 triệu
Thông số kỹ thuật

Công suất nguồn AC: 0 - 270 VAC

Điện áp AC đầu ra: 0 - 270V

Dòng điện AC đầu ra: 0 - 17A

Tần số: 45 - 500Hz

Trọng lượng: 113.5kg


Giới thiệu Nguồn xoay chiều (AC) một pha 0 ~270VAC, Behlman BL4500

Nguồn xoay chiều một pha BL4500, điện áp điều chỉnh từ 0 ~ 270VAC của Behman USA.

BL4500 là bộ nguồn AC điều chỉnh được, độ ổn định rất cao, tần số thay đổi từ 45 ~500Hz, có thể điều khiển được từ xa, với đầy đủ các chuẩn giao tiếp IEEE488, RS232, Labwindows, LabView...

BL High Power AC Power Supplies

The BLHP Series Behlman's high power, AC Power Sources / Frequency Converters / Inverters, combine the smooth, clean power of a linear supply with the compact design of a switching power supply. They're about one-third the size and half the cost of other AC Sources. All models come standard with variable voltage and frequency, external sync and 0-10 Vdc remote control, optional IEEE488 or RS232 interface for computer controlled. LabWindows and LabView drives available. Small size, quiet operation and high efficiency make the high power BL Series ideal choices for precision avionics, ATE and industrial products testing requirements.
BL(F) Series with fixed voltage and frequency is ideal for appliance and avionics testing and power. All other specifications apply per models below.

Đặc điểm Behlman BL4500

  • Multi-Pulse Input Rectification – Low Harmonic Distortion
  • Compact and rack mountable, 67% smaller than competitive units
  • Low cost per VA
  • Computer controlled waveform switching delivers smooth, efficient power
  • Multi-pulse input transformer offers low harmonic distortion
  • Available with an IEEE488/RS232 interface
  • LabWindows compatible

Behlman’s BL High-Power Series AC Power Sources  supply clean, regulated AC power in a compact design at  competitive prices. The BL High-Power Series is available with either single- or three-phase output in a wide range of power from 1 KVA to 20 KVA. Inputs are any worldwide three-phase mains power with some models available with single-phase input.  The BL High-Power Series delivers all the quality features our customers have come to expect from Behlman; clean sine wave output with excellent line and load regulation, high efficiency and low harmonic distortion. A multi-pulse input transformer offers low-input harmonic distortion and high power factor as required by MIL-STD-1399 and European standards. Unique protection circuitry provides for over-temperature protection, short-circuit protection and voltage fold-back during overloads to maintain undistorted waveforms.

Amplitude and Frequency adjustment, line drop  compensation, phase angle adjust and output on/off come standard. Units are supplied with analog remote control and available optional RS-232 and IEEE-488 remote control interfaces. Other options include Extended Frequency range up to 1000 Hz and Motor Test option which has the capability to soft-start motors, pumps and compressors thereby eliminating the need for high power devices.  Small size, quiet operation and high efficiency make the BL High Power series ideal for industrial product testing, precision avionic test and power conversion, ATE, bulk power and motor generator replacement.

Rugged, reliable and easy to use for a variety of applications:

  • Avionics and aircraft product testing
  • Aircraft simulator power
  • Industrial product testing
  • Power conversion
  • Facility Power

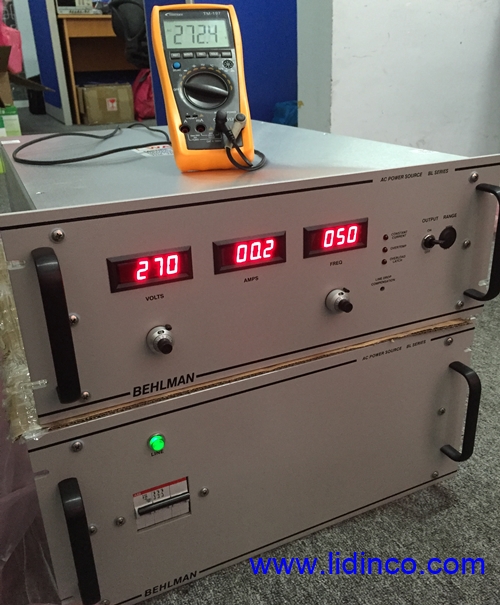

behlman-bl4500-lidinco-1behlman-bl4500-lidinco

Single Phase 0-270 VAC, AC Power Supplies

ModelPower (VA)Output Volts VAC(RMS)Output Current (Amps)Frequency (Hz)Input Voltage (VAC)Dimensions (19” Rack-Mount)Description
BL320030000-2701145-5001ø or 3ø7” H and 3.5” H x 22” DVariable voltage and frequency
BL450045000-2701745-5001ø or 3ø7” H and 8.75” H x 22” DVariable voltage and frequency
BL600060000-2702245-5001ø or 3ø7” H and 8.75” H x 22” DVariable voltage and frequency
BL920090000-2703345-5007” H and 8.75” H x 22” DVariable voltage and frequency
BL12000120000-2704445-500Cabinet with casters 28.3” H x 31.6” D x 22.1” WVariable voltage and frequency
